EC1000 User Manual
44

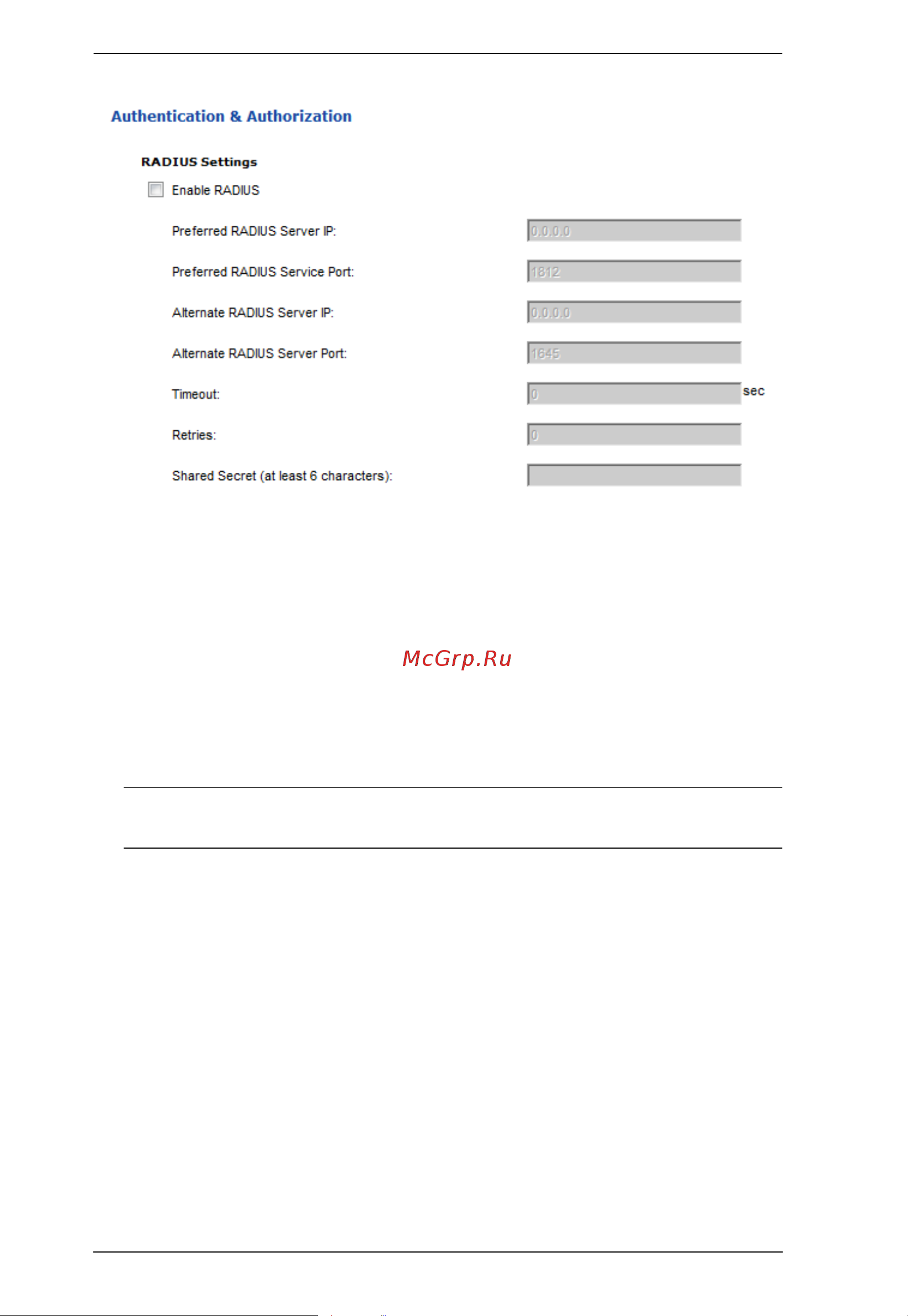

RADIUS Settings
To allow authentication and authorization for the EC1000 device through a
RADIUS server, do the following:
1. Check Enable RADIUS.
2. Fill in the Preferred RADIUS Server IP, Preferred RADIUS Service
Port, and (optional) Alternate RADIUS Server IP and Preferred
RADIUS Service Port. The default port number for the Preferred server is
1812; the default port number for the Alternate server is 1645.
Note: Make sure that the port numbers you specify here match the port
numbers used by the RADIUS servers.
3. In the Timeout field, set the time in seconds that the EC1000 waits for a
RADIUS server reply before it times out.
4. In the Retries field, set the number of allowed retries for attempting to
connect to the RADIUS server.
5. In the Shared Secret field, key in the character string that you want to use
for authentication between the EC1000 and the RADIUS Server.
6. On the RADIUS server, set the entry for each user as follows:
su/xxxx
Where xxxx represents the username given to the user when the account
was created on the EC1000. The user’s access rights are the ones assigned
for the EC1000, as well. (See User Information, page 29.)
