• Connect dust extraction system when cutting wood.
Safe work and maintenance
• Match cutting blade with material that you plan to cut.
• Never use the saw for cutting materials other than wood and
wood-like.
• Do not use the saw without guard or when the guard is blocked.
• Floor close to the machine work place must be kept tidy and
without loose materials and protrusions.
• Provide appropriate work place illumination.
• Machine operator must be properly trained for use, operation and
working with the machine.
• Use only sharp cutting blades.
• Observe maximum speed indicated on the cutting blade.
• Make sure to use parts in accordance with the manufacturer’s
instructions.
• Disconnect the saw from power supply when performing
maintenance tasks.
• If the power cord gets damaged during operation, disconnect the
power supply immediately. DO NOT TOUCH POWER CORD BEFORE
DISCONNECTING FROM THE POWER SUPPLY.
• If the saw is equipped with laser, replacement with laser of
another type is forbidden and all repairs must be carried out by
Do not use the tool in stationary mode. It is not designed for use
with sawing table.
• Fix processed material to stable surface and secure with clamps or
vice to eliminate shifting. This kind of work piece fixation is safer
than holding the work piece in hand.
• Wait until blade comes to a complete stop before putting the
power tool away. Cutting blade may jam and cause loss of control
over the power tool.
SAFETY RULES FOR LASER DEVICE
Laser device used in the saw design is the class 2 with maximum
power below 1 mW and wavelength λ = 650 nm. Such device is not
dangerous to eyes, however do not look directly at the source of
the light (temporary blindness hazard).
WARNING. Do not look directly at the source of the laser beam. It
may cause hazards. Follow the below safety rules.
• Use the laser device in accordance with the manufacturer’s
instructions.
• Do not, either intentionally or unintentionally, point the laser
beam at people, animals or any object other than processed
material.
• Do not bring to accidental pointing the laser beam at bystanders’
or animals’ eyes for a period longer than 0.25 second, for instance
by pointing the laser beam at mirrors.
• Always ensure the laser beam is directed at material which does
not have any reflective surfaces.
• Reflective steel sheet (and other materials with reflective surface)
does not allow for laser use, because it might cause hazardous
light reflection directed at operator, bystanders or animals.
• Do not replace the laser unit with device of other type. All repairs
must be carried out by the manufacturer or authorized person.
LASER LIGHT, LASER RADIATION
DO NOT LOOK AT THE LASER BEAM
LASER DEVICE CLASS 2
Wavelength: 650 nm; Output: < 1 mW
EN 60825-1:2014
CAUTION: Adjustments other than described in this manual put in
danger of exposition to laser radiation!
CAUTION! This device is designed to operate indoors.
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is always a
small risk of injuries at work.

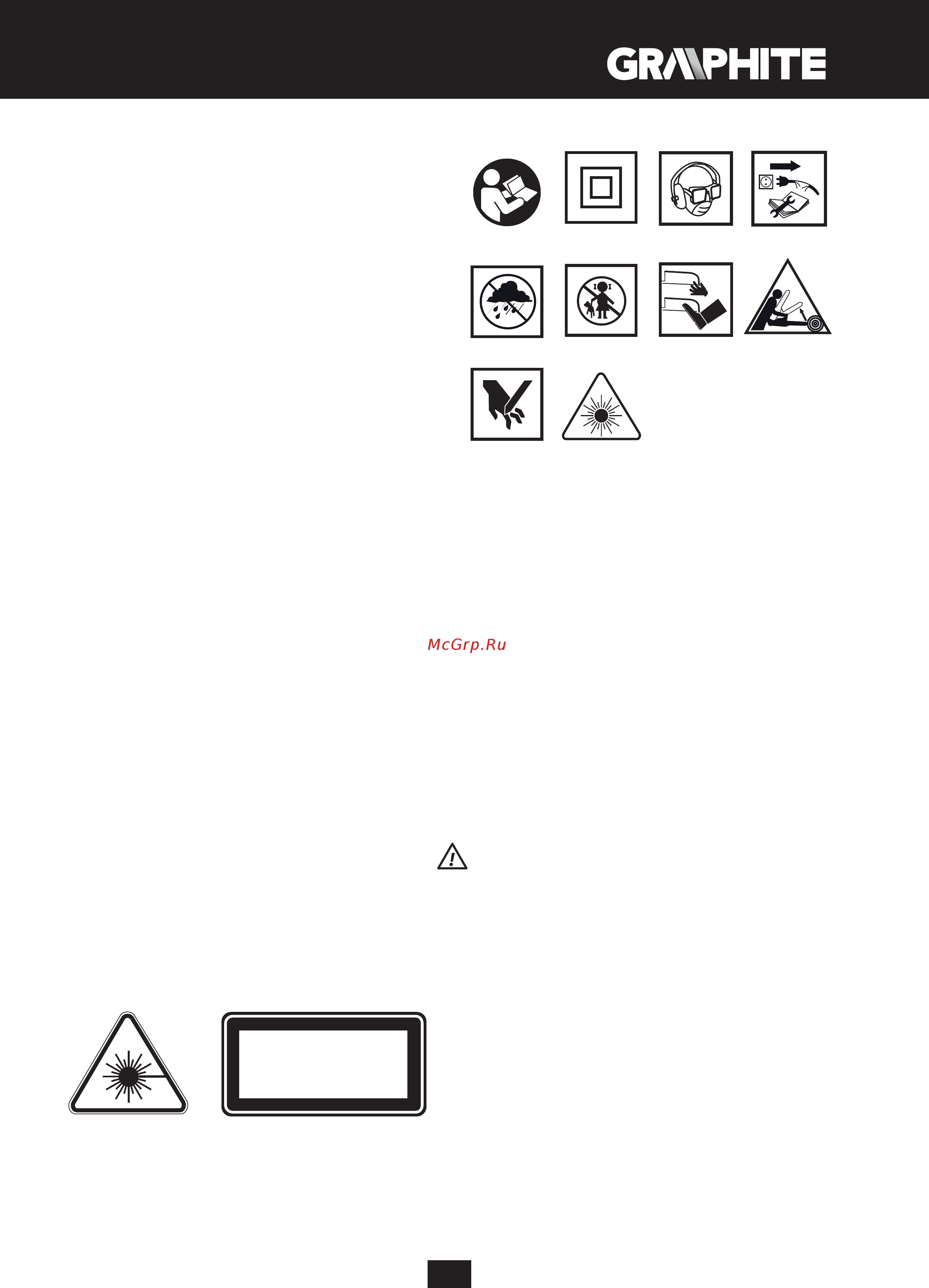

Explanation of used symbols
1
5
2
6
34
78
910
1. Read instruction manual, observe warnings and safety
conditions therein.
2. Device with class II insulation.
3. Use personal protection measures (protective goggles, earmuff
protectors, anti-dust mask)
4. Disconnect the power cord before starting maintenance or
repair.
5. Protect against rain.
6. Keep the tool away from children.
7. Do not put your hands or legs close to cutting parts!
8. Danger of kickback.
9. Caution, risk of hand injuries and cutting fingers.
10. Caution: Laser radiation.
CONSTRUCTION AND USE
Circular saw is a hand-held power tool with insulation class II. It is
driven by a single-phase commutator motor. Power tools of this
type are widely used for cutting wood and wood-based materials.
Do not use the saw for cutting firewood. Attempts to use the saw for
purposes other than specified will be considered an improper use.
Use the circular saw only with appropriate cutting blades with teeth
with sintered carbide tips. Circular saw is designed for light duty
works in service workshops and any individual, amateur activities
(tinkering).
Use the power tool in accordance with the manufacturer’s
instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
1. Dust extraction outlet
2. Upper guard
3. Voltage indicator
4. Lower guard lever
5. Knob for base bevel adjustment
6. Edge guide locking knob
7. Cutting line indicator for 45°
8. Cutting line indicator for 0°
9. Base
10. Cutting blade
11. Flange washer
12. Fixing bolt for cutting blade
13. Lower guard
14. Front handle
15. Switch
16. Switch lock button
17. Main handle
18. Cutting depth locking lever
19. Spindle lock button
21. Laser switch
