13 POCKET BEEP AND TONE/DIGITAL SQUELCH
New2001
• Using the digital code squelch— in Digital voice mode
wDisplays the Set Mode screen.
eDouble click the “Digital Code” cell, then enter the desired
code number within 00 to 99.
rClick [DSQL] several times until “CBEEP” appears to turn
the pocket beep function ON.
tWhen a signal with matched digital code is received;
- The transceiver emits beep tones.
- Shows “CBEEP” and “” indications alternately.
yPush [PTT] to answer.
• The pocket beep function is cancelled and the digital code
squelch operation is selected automatically.
•“CSQL” indication appears instead of “CBEEP.”
• When the called station call sign is not selected in “YOUR” (in
Select Call Sign screen), click [CD] to display Received Call
Record screen, select the call then click [Select] to set the call
sign before pushing [PTT].
uClick [DSQL] several times to cancel the digital code
squelch function.
•“CSQL” indication disappears.
• Using the call sign squelch— in Digital voice mode
wClick [CS] to display Select Call Sign screen.
eSelect or enter the desired call sign in “MY.”
• After the setting, click [OK].
rClick [DSQL] several times until “DBEEP” appears to turn
the pocket beep function ON.
tWhen the signal with matched call sign is received;
- The transceiver emits beep tones.
- Shows “DBEEP” and “” indications alternately.
yPush [PTT] to answer.
• The pocket beep function is cancelled and the call sign squelch
operation is selected automatically.
•“DSQL” indication appears instead of “DBEEP.”
• When the called station call sign is not selected in “YOUR” (in
Select Call Sign screen), click [CD] to display Received Call
Record screen, select the call then click [Select] to set the call
sign before pushing [PTT].
uClick [DSQL] several times to cancel the call sign squelch
function.
•“DSQL” indication disappears.

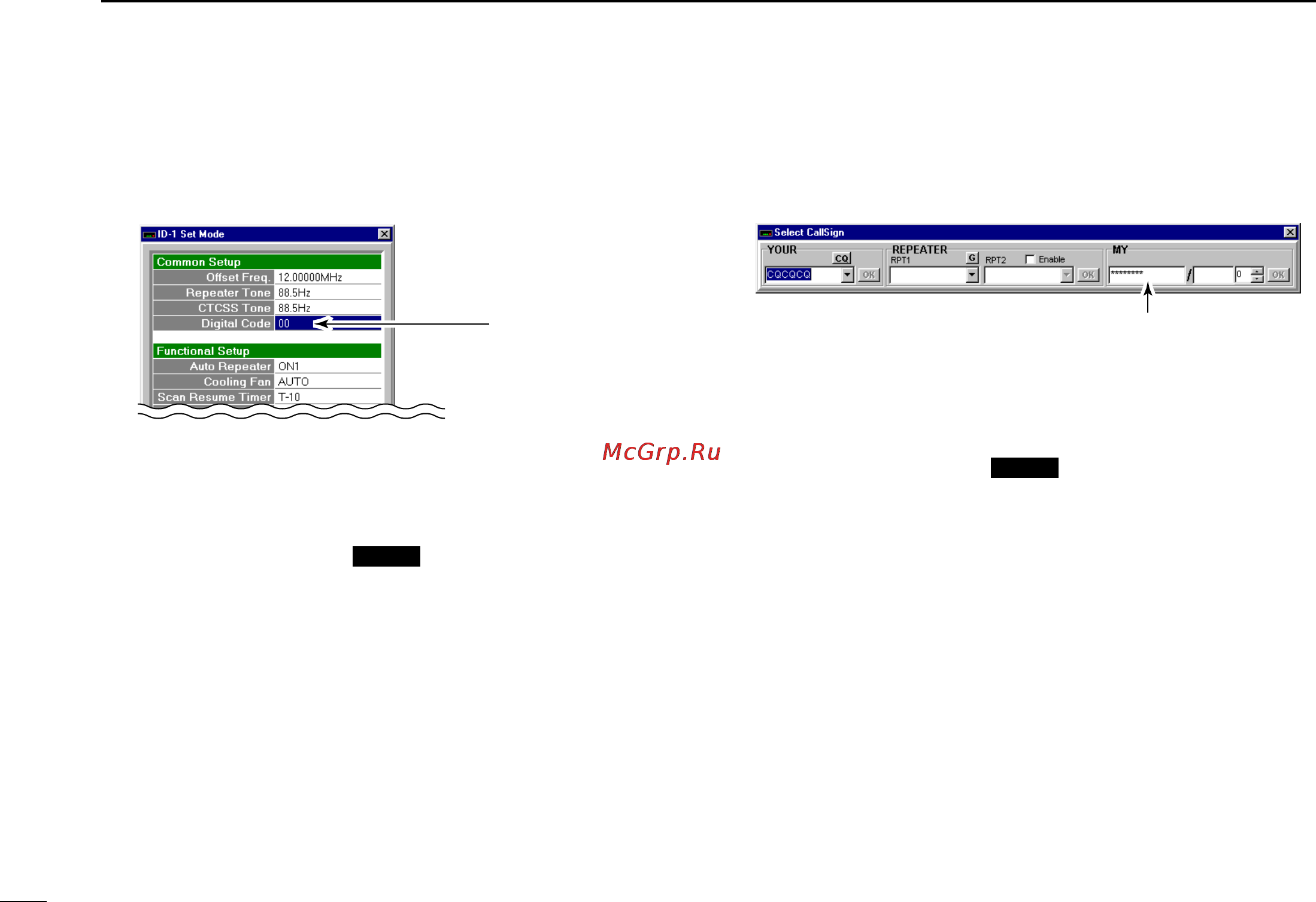

DBEEP
Select/enter the desired call sign.
CBEEP
Enter the desired
code number.
