97
13 POCKET BEEP AND TONE/DIGITAL SQUELCH
New2001
• Using the digital code squelch— in Digital voice mode

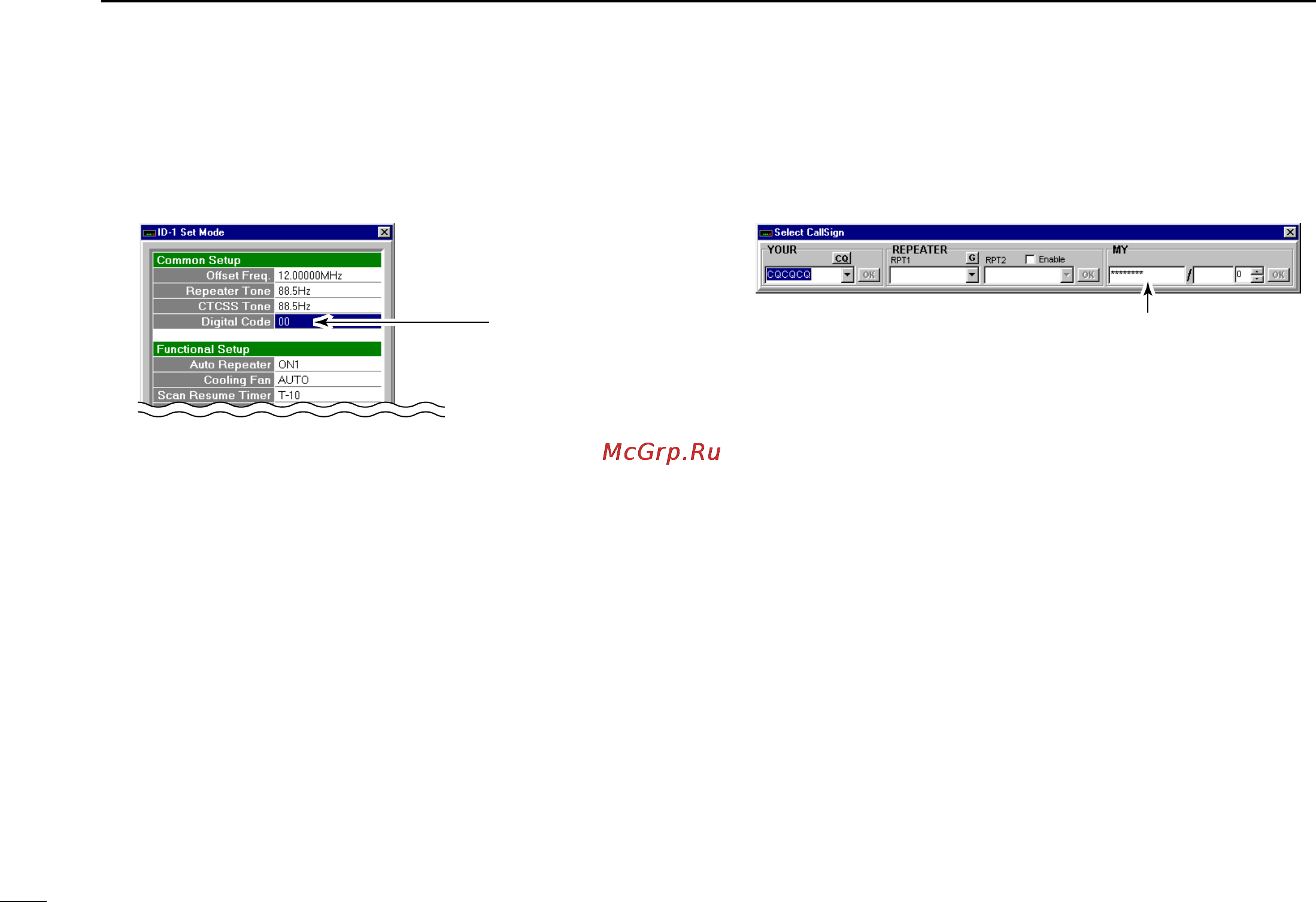

wDisplays the Set Mode screen.
eDouble click the “Digital Code” cell, then enter the desired
code number within 00 to 99.
rClick [DSQL] several times until “CSQL” appears to turn
the pocket beep function ON.
tWhen a signal with matched digital code is received, the
squelch opens and the signal can be heard.
• When the received signal includes an unmatched code, the
squelch does not open. However, the S/RF indicator shows the
received signal strength.
yOperate the transceiver in the normal way (push [PTT] to
transmit; release to receive).
• When the called station’s call sign is not selected in “YOUR” (in
Select Call Sign screen), click [CD] to display Received Call
Record screen, select the call then click [Select] to set the call
sign before pushing [PTT].
uClick [DSQL] several times to cancel the digital code
squelch function.
•“CSQL” indication disappears.
• Using the call sign squelch— in Digital voice mode
wClick [CS] to display Select Call Sign screen.
eSelect or enter the desired call sign in “MY.”
• After the setting, click [OK].
rClick [DSQL] several times until “DSQL” appears to turn
the call sign squelch function ON.
tWhen a signal with matched call sign is received, the
squelch opens and the signal can be heard.
• When the received signal includes an unmatched call sign, the
squelch does not open. However, the S/RF indicator shows the
received signal strength.
yOperate the transceiver in the normal way (push [PTT] to
transmit; release to receive).
• When the called station’s call sign is not selected in “YOUR” (in
Select Call Sign screen), click [CD] to display Received Call
Record screen, select the call then click [Select] to set the call
sign before pushing [PTT].
uClick [DSQL] several times to cancel the call sign squelch.
•“DSQL” indication disappears.
Select/enter the desired call sign.
Enter the desired
code number.
ID-1_ENG_2.qxd 04.9.22 9:30 Page 97 (1,1)
