60
8
REPEATER OPERATION— VOICE
New2001
8

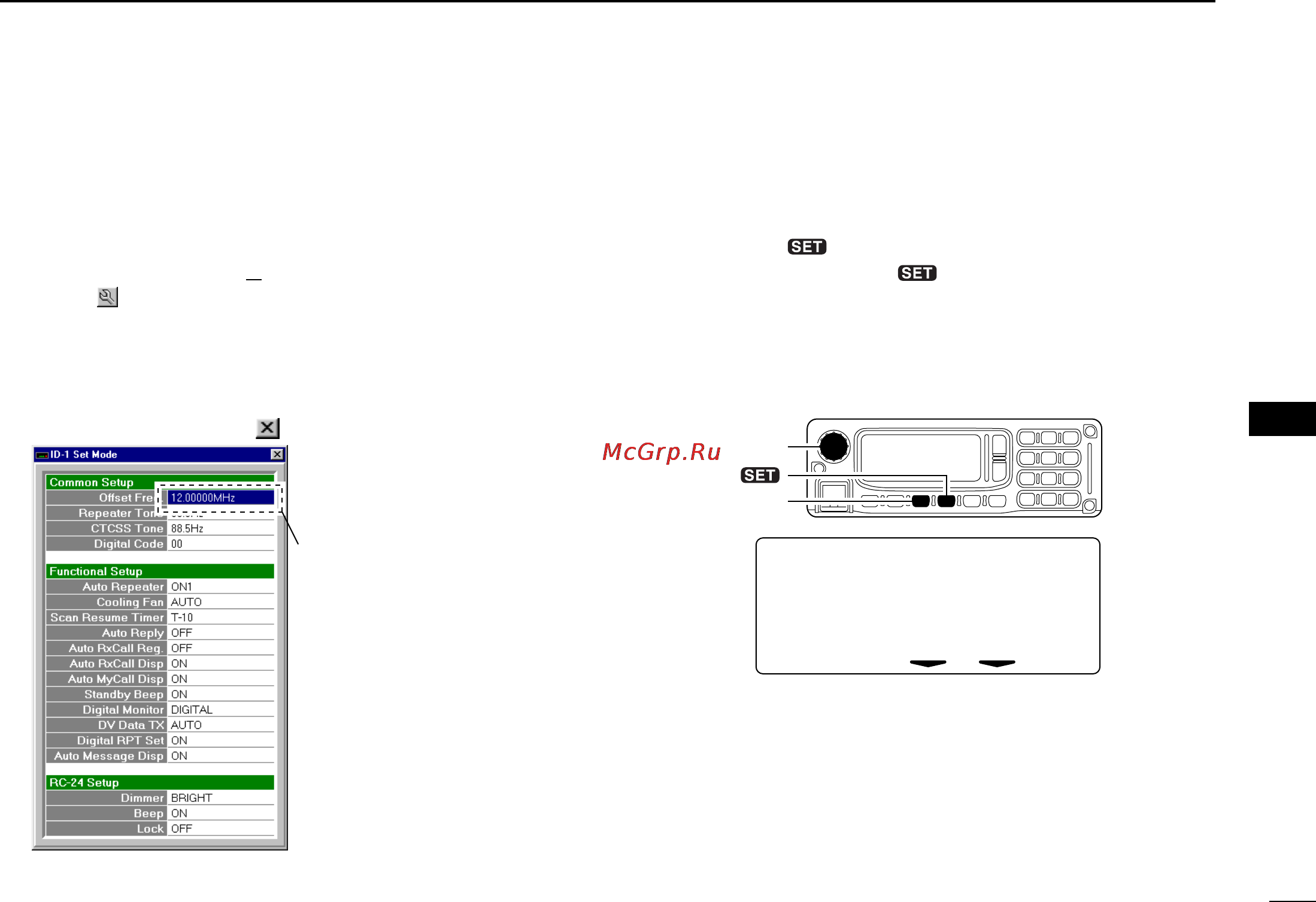

■ Offset frequency setting
DD
Setting from the application
qDisplays set mode screen by performing one of the follow-
ing operations.
- Select “Edit SetMode(C
)...” in view menu.
- Click “” button in tool bar.
- Click [SET].
- Press [F7] key on the PC keyboard.
wDouble click “Offset Freq” frequency cell, then enter the de-
sired frequency within 0 to 60.000 MHz range.
• To close the screen, click “” or repeat the operation as step q.
DD
Setting from the RC-24
qPush [MODE] several times to select FM mode.
wPush [TXinh• ] for 0.5 sec. to enter set mode.
ePush [MODE] or [TXinh• ] to select “Offset Fre-
quency” item.
rRotate [DIAL] to set the desired offset frequency.
• The tuning step, previously selected in VFO mode, is used for
the setting.
tPush [PWR] momentarily to exit set mode.
Offset
Frequency
12.000
[MODE]
[DIAL]
[TXinh• ]
Double click, then enter the
desired offset frequency.
ID-1_ENG_2.qxd 04.9.22 9:29 Page 60 (1,1)
