OTHER FUNCTIONS
New2001
14
DD

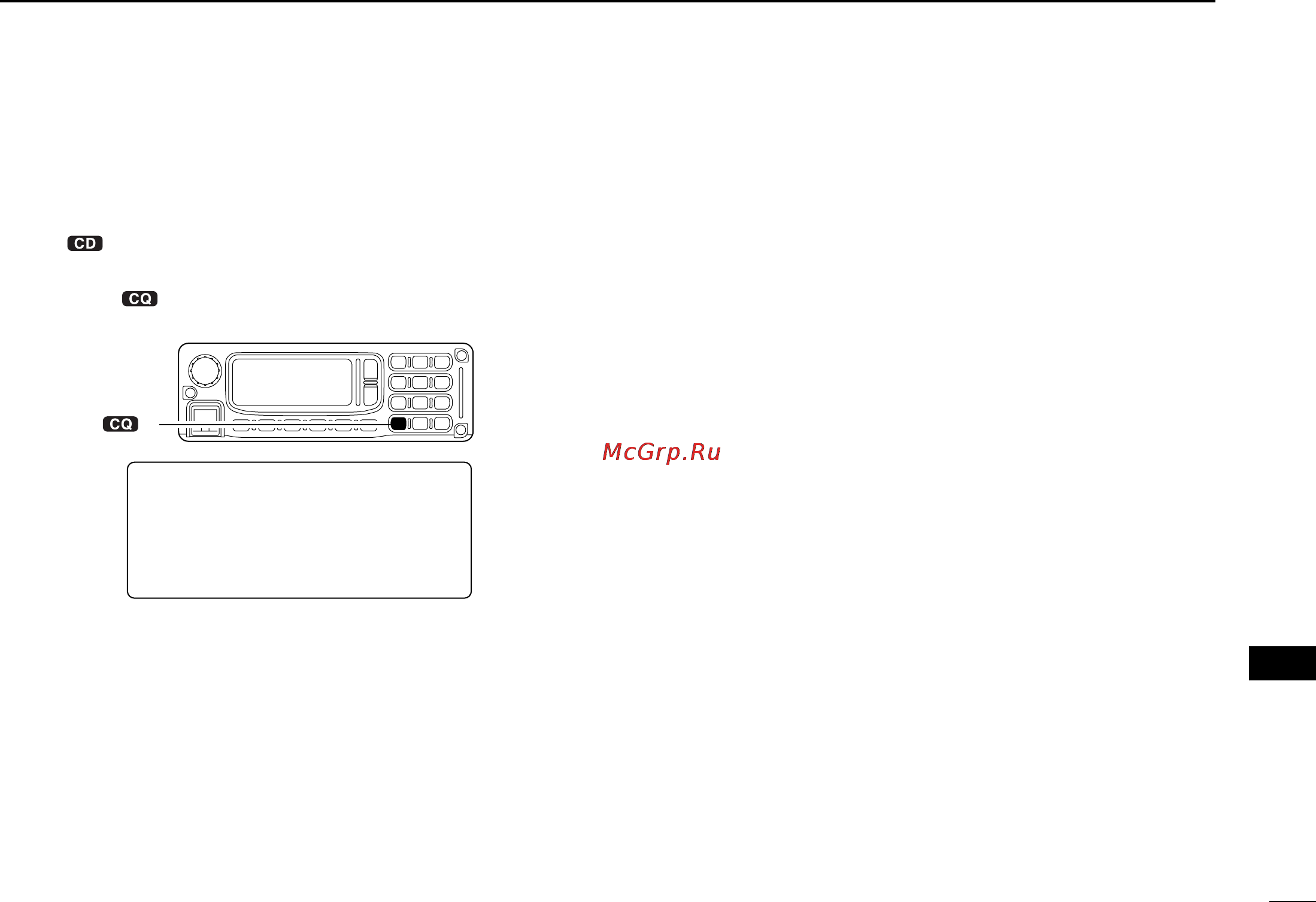

Operating from the RC-24
qWhile receiving an another stations communication, push
[CS••1] then set the either station/repeater call sign into
“UR” or “RPT1/2” and your call sign into “MY.”
wPush [BK••.].
•“BK” appears.
eWhen both stations are in standby, transmit to send a
break-in call.
• Programmed call sign station receives the break-in call as well
as your call sign.
rWait for the reply call from the station who receive the
break-in call.
tAfter receive the reply call, communicate normal way.
yTo cancel the break-in, push [BK].
•“BK” disappears.
LOW
DV
001294.500
BK
[BK• •.]
