TRANSMIT AND RECEIVE— VOICE
New2001
7
■ FM mode operation
qSet the desired frequency in VFO mode from the applica-
tion or the RC-24. (pgs. 35, 36)
• Set the squelch (p. 33) and volume (p. 34) level as desired.
wSelect FM mode with [MODE].
eClick [LOW] in the application (main screen); or push
[LOW•3] on the RC-24 to select the desired output power.
•“LOW” appears when low power is selected; disappears when
high power is selected.
rPush and hold [PTT] to transmit and speak into the micro-
phone at normal voice level.
tRelease [PTT] to return to receive.
■ Digital voice mode operation
qSet the desired frequency in VFO mode from the applica-
tion or the RC-24. (pgs. 35, 36)
• Set the volume (p. 34) level as desired.
wSelect DV (Digital voice) mode with [MODE].
eClick [LOW] in the application (main screen); or push
[LOW•3] on the RC-24 to select the desired output power.
•“LOW” appears when low power is selected; disappears when
high power is selected.
DD
When sending a CQ
rSelect “CQ” as the call sign.

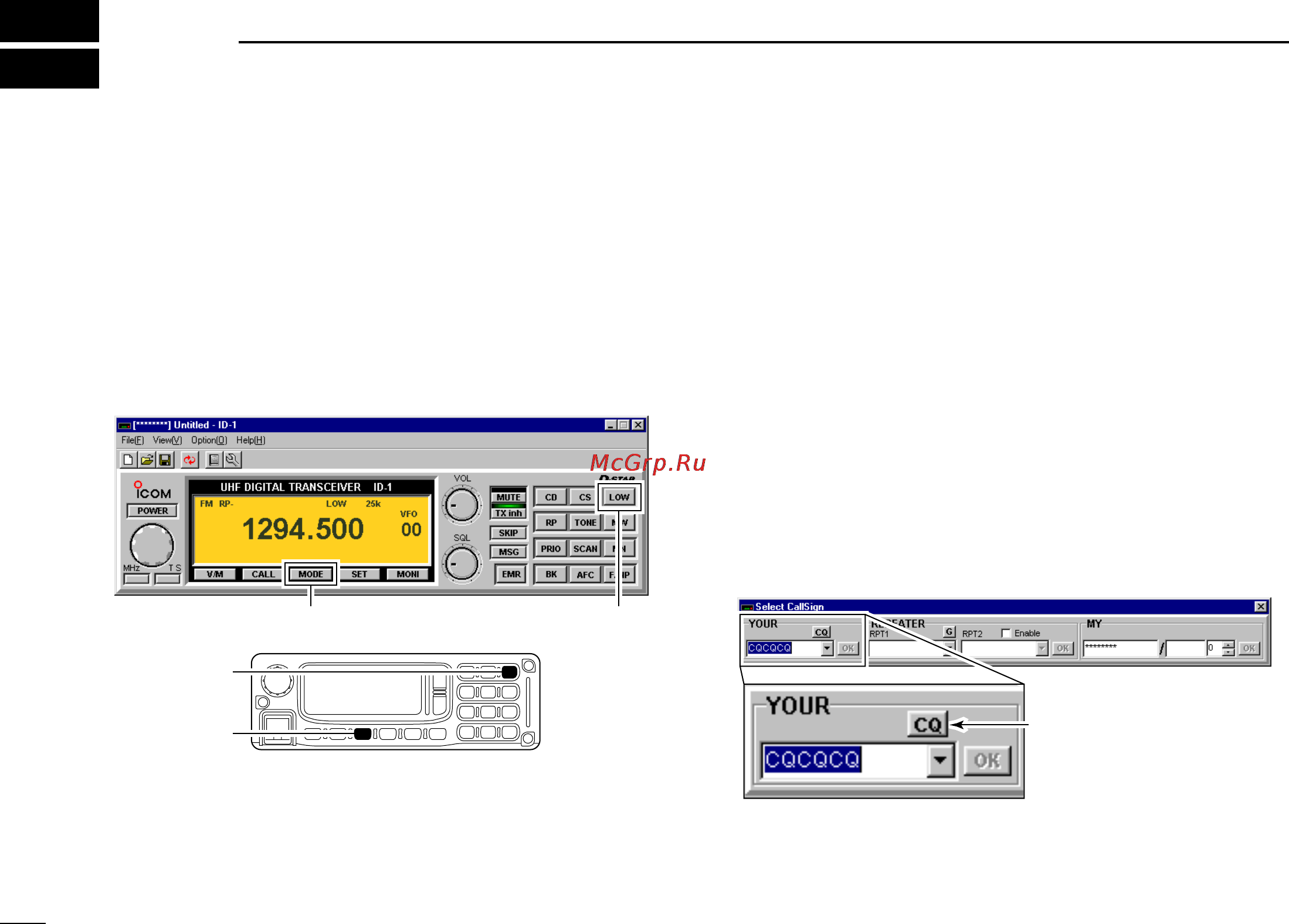

Application
- Click [CS] to shows the Select Call sign screen.
- Click “CQ” button of “YOUR” to display “CQCQCQ.”
- Click [OK].
Click to displays “CQCQCQ.”
[LOW•3]
[MODE]
ClickClick
