37
5 BASIC OPERATION
New2001

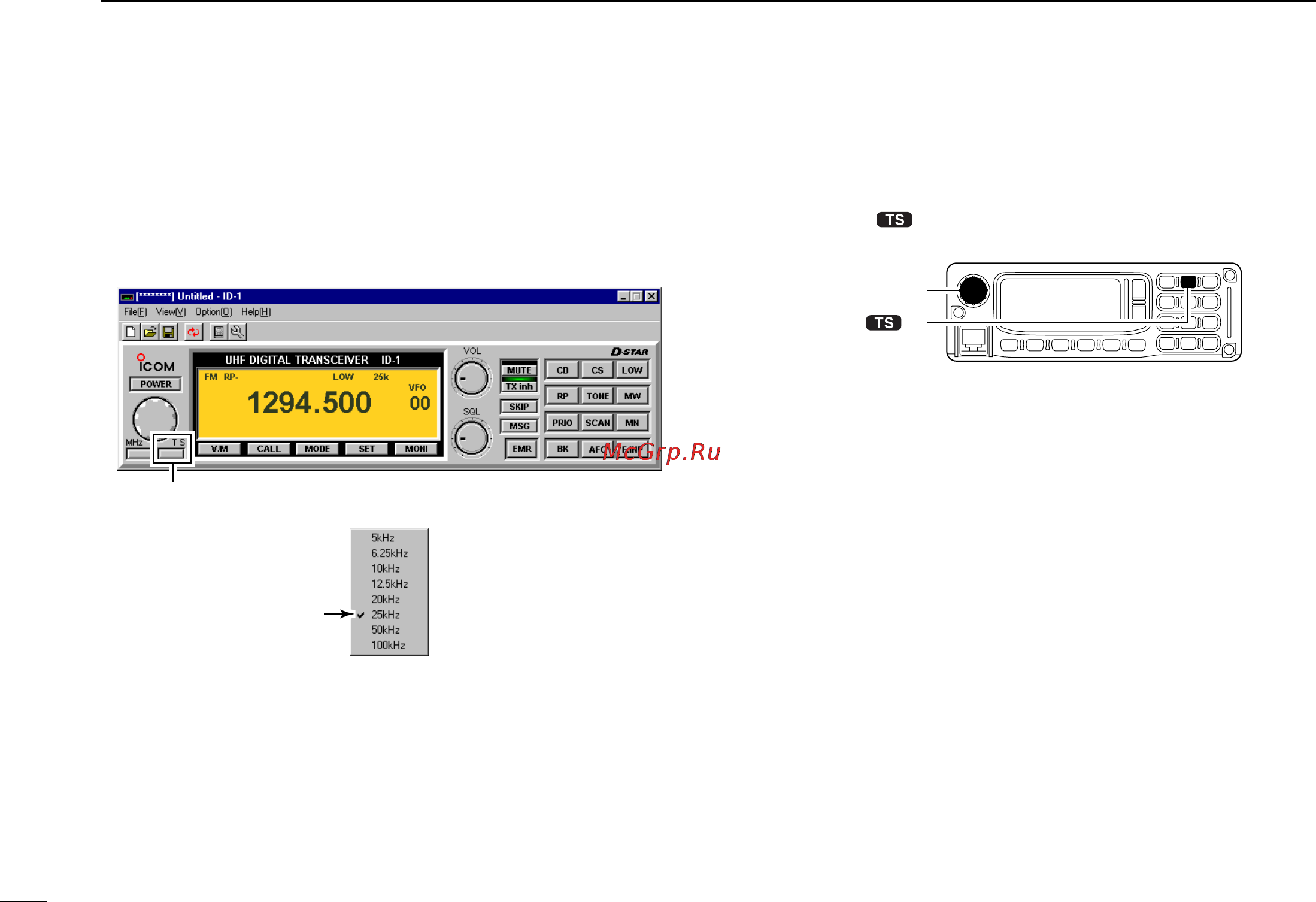

■ Tuning step selection
DD
Selecting with the application
➥ Click [TS], then select the desired tuning step from the list.
• 5, 6.25, 10, 12.5, 20, 25, 50 and 100 kHz tuning steps are avail-
able.
DD
Selecting with the RC-24
qPush [MHz••2] for 0.5 sec.
•“TS” and the selected tuning step appear.
wRotate [DIAL] to select the desired tuning step.
• 5, 6.25, 10, 12.5, 20, 25, 50 and 100 kHz tuning steps are avail-
able.
• When no operation is performed for 5 sec., both “TS” and tun-
ing step selection indication disappear and the transceiver return
to normal condition.
[DIAL]
[MHz• •2]
“✔” appears for the
selected tuning step
Click
ID-1_ENG_2.qxd 04.9.22 9:29 Page 37 (1,1)
