MEMORY/CALL OPERATION
New2001
10
■ Programming a memory/call channel
VFO settings, including the set mode contents such as re-
peater tone frequency, offset, can be programmed into a
memory and call channel.
DD
Programming from the application
— main screen

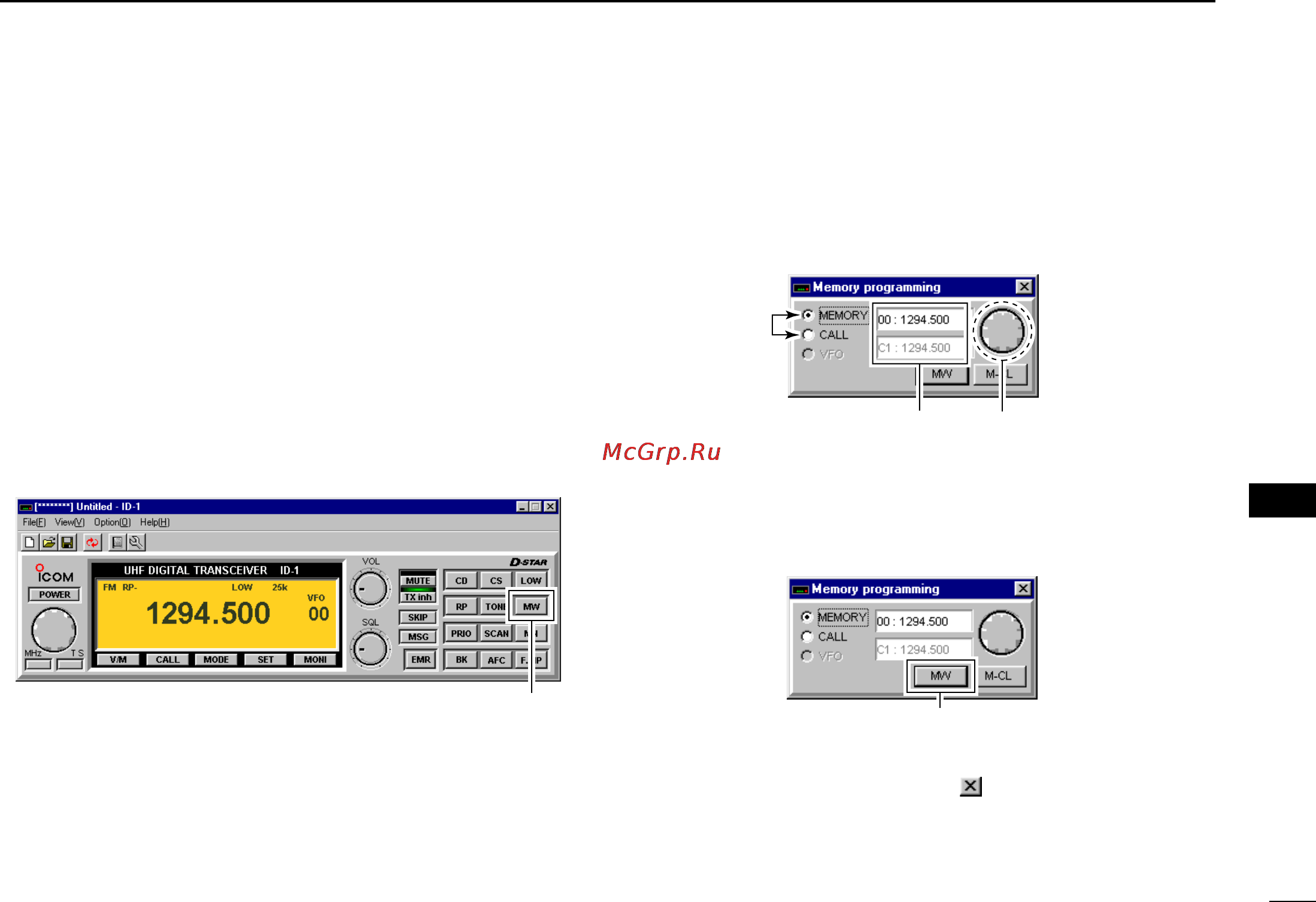

qSet the desired frequency in VFO mode.
➥ Set the operating mode with [MODE].
➥ Set the frequency using [DIAL] or keypad.
➥ Set other data (e.g. station call sign, tone information,
etc.) if required.
wClick [MW] to display the Memory programming screen.
eSelect the desired memory or call channel number by right
clicking or left clicking on the [DIAL] in the screen.
• Click “MEMORY” to select memory, or click “CALL” to select call
channel.
rClick [MW] on the Memory programming screen to pro-
gram.
tTo close the Memory programming screen, click [MW] on
the main screen again or click “
.
”
Click
Click to
select
Shows the selected memory
or call channel number and
previously programmed fre-
quency.
Right click to move memory
or call channel number up.
Left click to move memory or
call channel number down.
Click
