73
10 MEMORY/CALL OPERATION
New2001

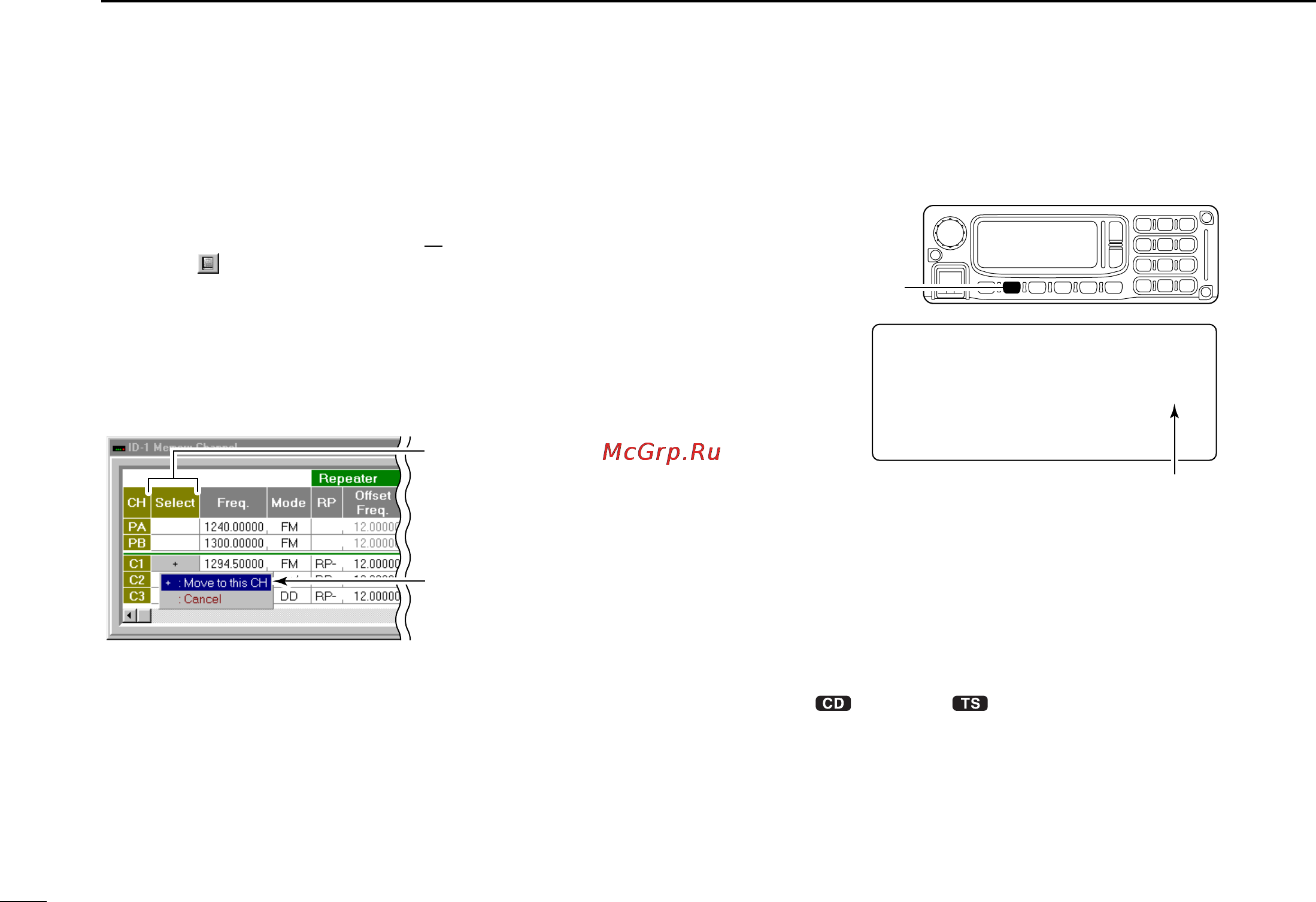

• Selecting from Memory Channel screen
wDisplay the Memory channel screen.
- Select “Edit Memory Channel(M
)...” in View menu.
- Click “” in tool bar.
- Press [F6] key on the PC keyboard.
eDouble click, or right click the desired channel’s “Select”
cell, then select “+ : Move to this CH” to select the desired
call channel.
• Click the desired call channel’s “Select” cell, then press [Enter]
while pressing [Ctrl] key on the PC keyboard.
DD
Selecting with the RC-24
qPush [CALL] to select call channel
•“C” appears beside the channel number indication.
• Dial selection
wRotate [DIAL] to select the desired call channel.
• Microphone’s [UP]/[DN] switches can also be used for the selec-
tion.
• Keypad selection
wPush [F.INP•L] then push the appropriate digit key
([CS••1], [MHz••2] or [LOW•3]) to select the de-
sired call channel.
• Channel number indication disappear after pushing [F.INP•L].
• [CALL] selection
wPush [CALL] each time to select C1 to C3 in sequence.
LOW
FM
C1
1294.500
[CALL]
“C” appears.
Double click the desired
channel’s “Select” cell.
Select “+ : Move to this CH”.
ID-1_ENG_2.qxd 04.9.22 9:30 Page 73 (1,1)
