33
5 BASIC OPERATION
New2001
yTo quit the application, select “Exit(X
)” in the file menu, or
click “” button on the top right corner of the screen.
• The application cannot be quit by turning OFF the transceiver’s
power only. And also, the transceiver power is still ON even the
application is quit without turning OFF with [POWER].
Hint!
The ID-1 has “WakeUp PowerON” function, which automati-
cally powers ON when the application is started up.
To turn the function ON and OFF, select “Wakeup PowerON”
item in option menu. “✔” appears when the function is acti-
vated.
DD
Turing power ON/OFF from the RC-24
➥ Push [PWR] to turn the power ON.
• Pushing [POWER] on the ID-1 front panel also turns power ON.
• Push [PWR] (or [POWER] on the ID-1 front panel) for 0.5 sec. to
turn the power OFF.

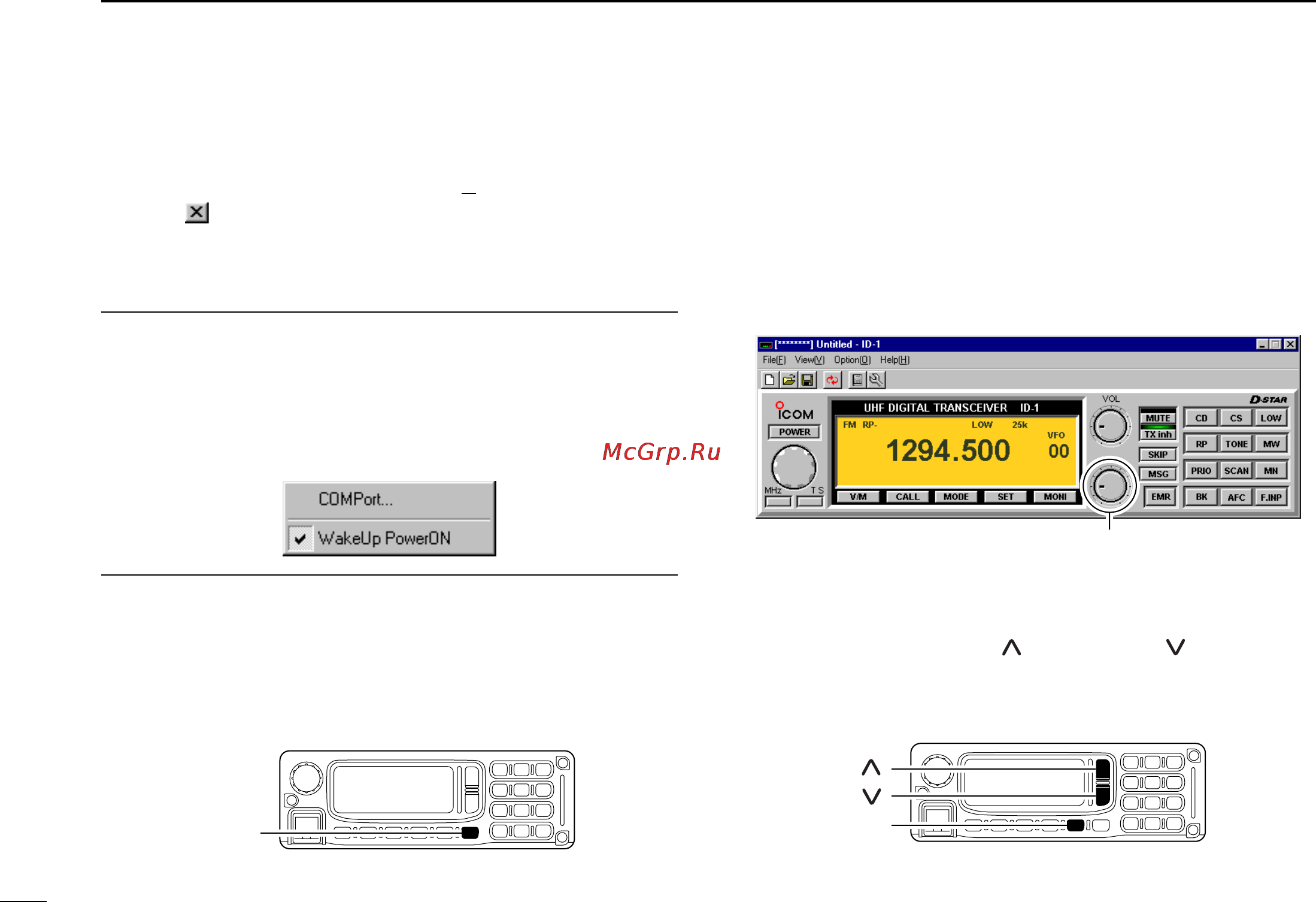

■ Squelch level adjustment
(FM mode only)
DD
From the application
➥ Set the pointer on [SQL] control then; right click to in-
crease, left click to decrease the squelch level.
• Set [SQL] within 9–12 o’clock position is recommended.
DD
From the RC-24
➥ Push [SQL], then push [ ] to increase, [ ] to decrease
the squelch level.
•“SQL” and set level appear on the function display.
• Set the squelch level within 9 to 19 is recommended.
[SQL]
[ ]
[ ]
Right click to increase; Left click to decrease
[PWR]
ID-1_ENG_2.qxd 04.9.22 9:29 Page 33 (1,1)
