58
8
REPEATER OPERATION— VOICE
8
DD

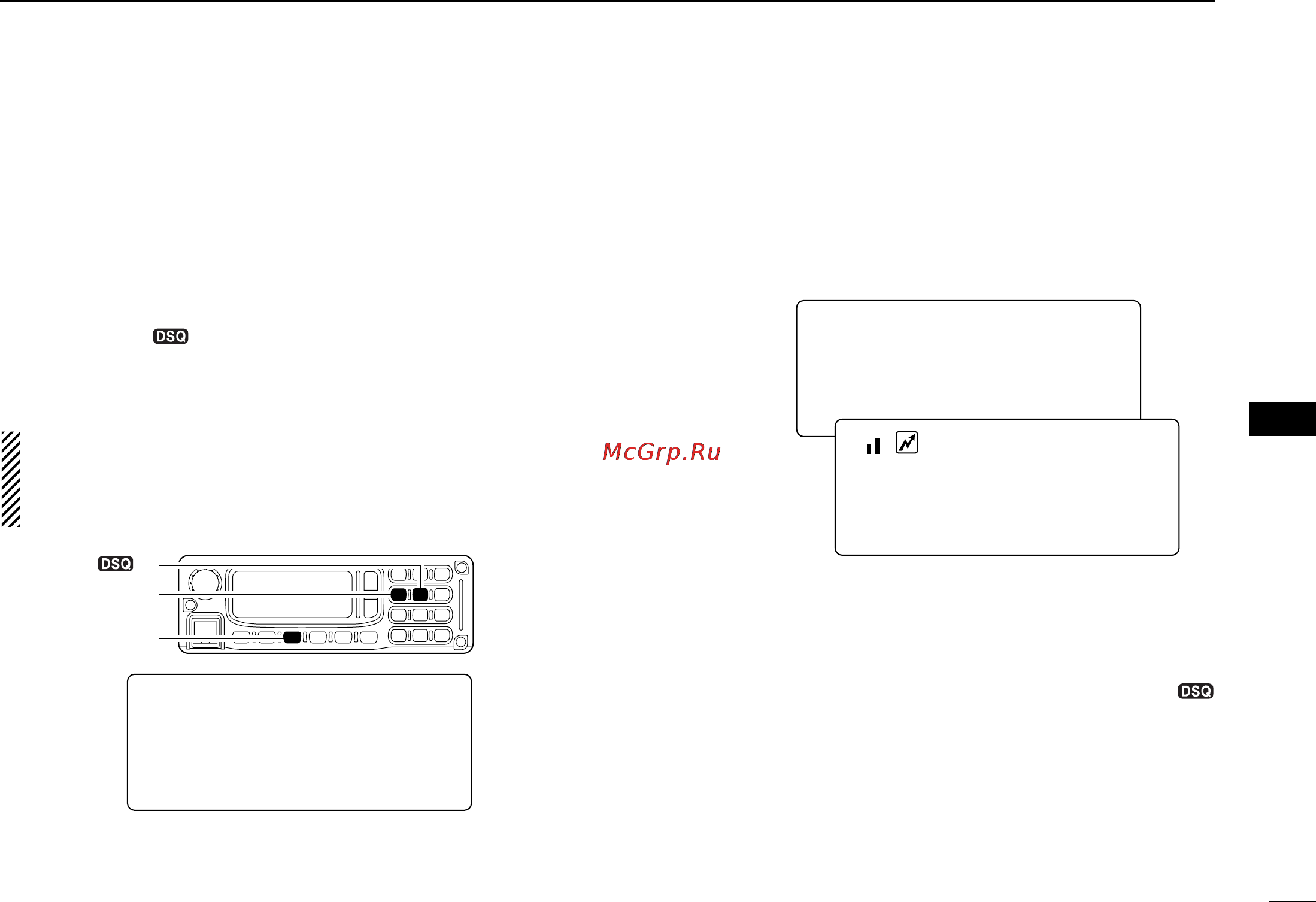

Setting from the RC-24
qPush [MODE] to select FM mode.
•“FM” appears.
wSet the desired receive frequency (repeater output frequency).
ePush [RP•4] several times to select minus or plus duplex.
•“RP-” or “RP+” appears.
• 12 MHz is set as the default. Refer to page 60 for offset fre-
quency setting.
rPush [TONE••5] to turn the repeater tone encoder ON.
•“TONE” appears.
• 88.5 Hz is set as the default. Refer to page 59 for tone frequency
setting.
NOTE for the USA version: During the auto repeater
function ON, the steps e and r are not necessary, de-
pending on the settings. See page 106 for the auto re-
peater function.
tPush and hold [PTT] to transmit.
• The display frequency automatically changes to the transmit fre-
quency (repeater input frequency).
• If the repeater indicator, “RP-” or “RP+” blinks, confirm that the
offset frequency (p. 60) is set correctly.
yRelease [PTT] to receive.
uPush and hold [SQL] to check whether the other station’s
transmit signal can be received directly.
iTo return to simplex operation, push [RP•4] several times to
clear the “RP-” or “RP+” indicator.
oTo turn OFF the repeater tone encoder, push [TONE•
•5] several times until no tone indicators appear.
LOW
FM RP- TONE
00
1294.500
LOW
FM RP- TONE
00
1282.500
During receive
During transmit
LOW
FM RP- TONE
00
1294.500
[MODE]
[RP•4]
[TONE• •5]
