Icom ID-1 [115/124] D operating from the rc 24
![Icom ID-1 [115/124] D operating from the rc 24](/views2/1074124/page115/bg73.png)
108
14
OTHER FUNCTIONS
New2001
14
DD

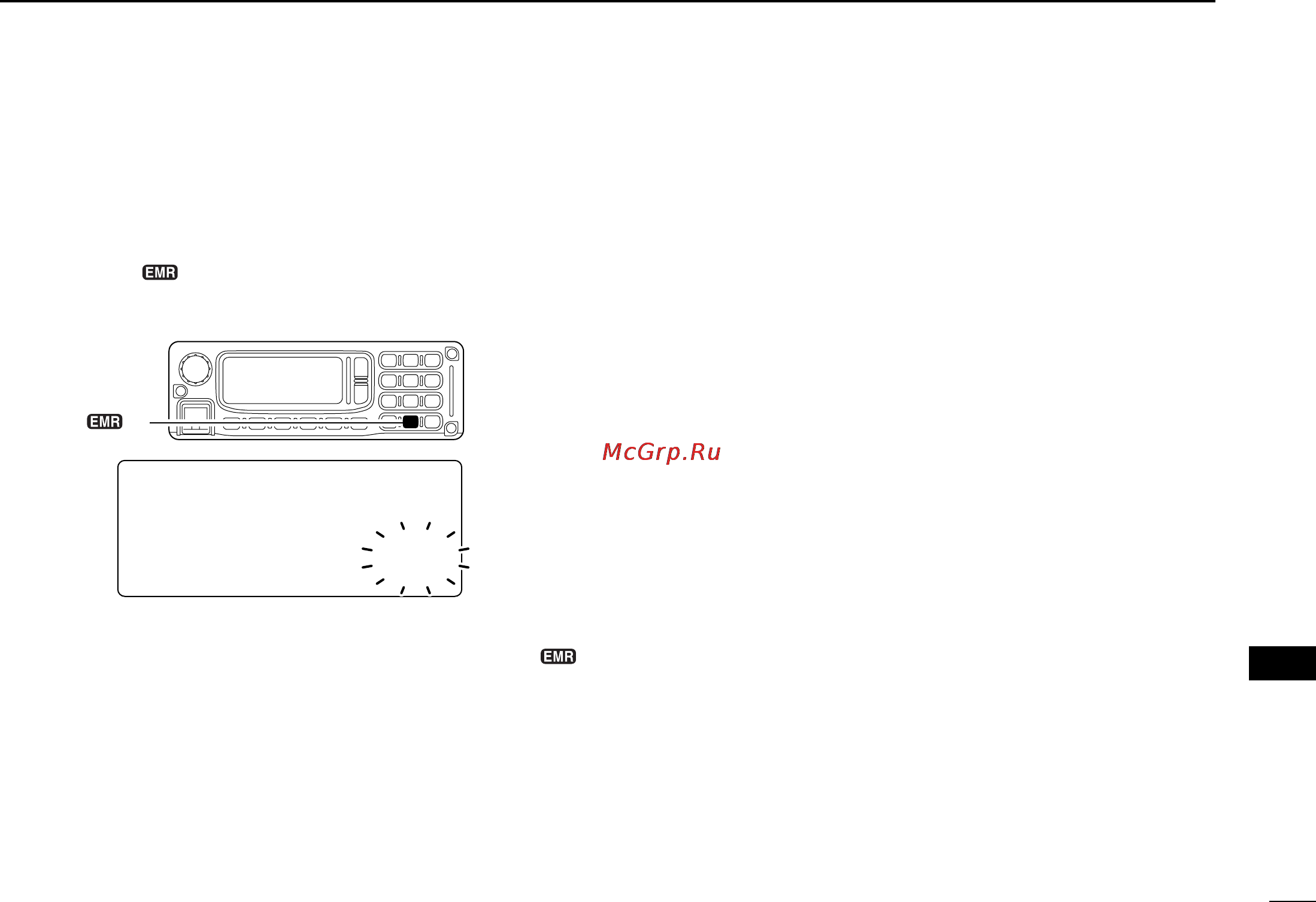

Operating from the RC-24
qSet the desired frequency and select either Digital voice
mode.
wPush [AFC••0] for 1.5 sec. (until 3 short and 1 long
beeps sound) to set the transceiver into EMR mode.
•“EMR” blinks.
eOperate the transceiver normal way.
rTo cancel the EMR communication mode, push [AFC•
•0] for 0.5 sec. (until 1 long beep sounds) to exit the trans-
ceiver from EMR mode.
•“EMR” disappears.
LOW
DV
001294.500
EMR
[AFC• •0]
