52
7
TRANSMIT AND RECEIVE— VOICE
New2001
7
DD

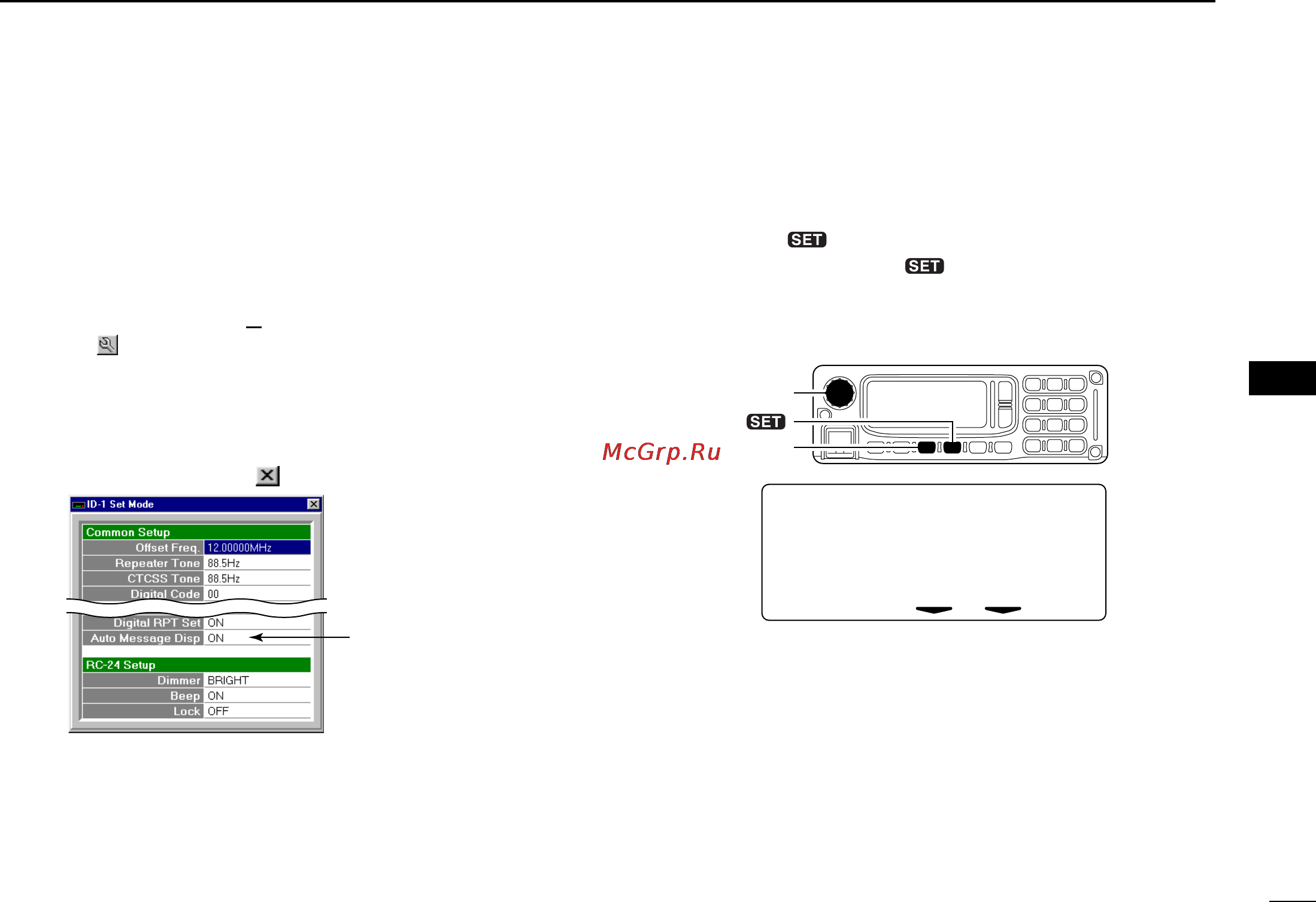

Automatic message indication
The received message can be displayed on the RC-24 with-
out selecting the “RX Message” indication.
• Setting from the application
qDisplays set mode screen by performing one of the follow-
ing operations.
- Select “Edit SetMode(C
)...” in view menu.
- Click “” button in tool bar.
- Click [SET].
- Press [F7] key on the PC keyboard.
wDouble click “Auto Message Disp” cell, then select the
function ON and OFF.
• To close the screen, click “” or repeat the operation as step q.
• Setting from the RC-24
qPush [MODE] several times to select DV or DD mode.
wPush [TXinh• ] for 0.5 sec. to enter set mode.
ePush [MODE] or [TXinh• ] to select “Auto RxMSG
Disp” item.
rRotate [DIAL] to turn the function ON and OFF.
tPush [PWR] momentarily to exit set mode.
[MODE]
[DIAL]
[TXinh• ]
Auto
RxMSG
Disp
ON
Double click then
select the function
ON and OFF.
ID-1_ENG_2.qxd 04.9.22 9:29 Page 52 (1,1)
