Icom ID-1 [39/124] Basic operation

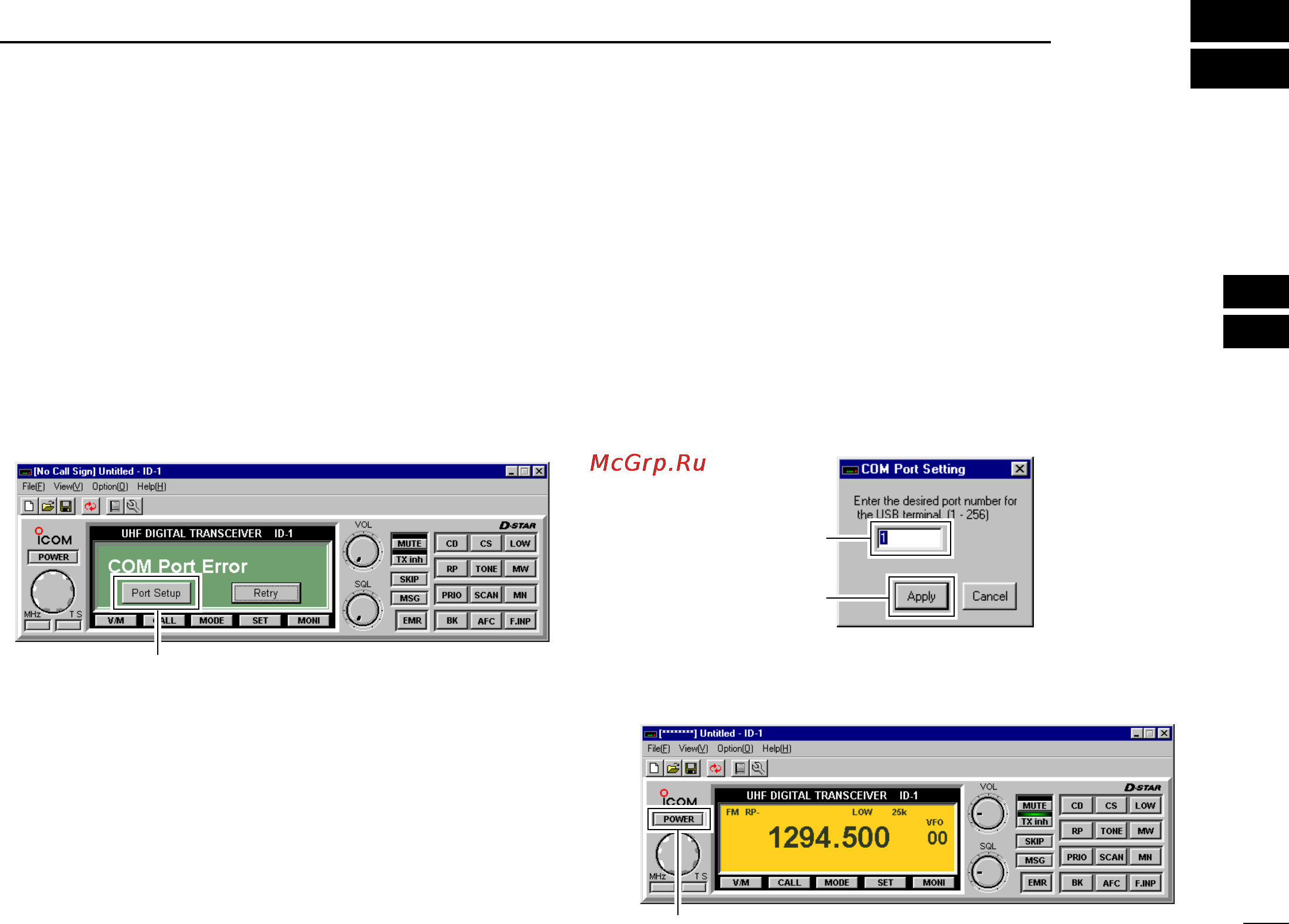

![Icom ID-1 [39/124] Basic operation](/views2/1074124/page39/bg27.png)
32
5
BASIC OPERATION
4
5
■ Preparation
DD
Turing power ON/OFF from the applica-
tion
qBoot up Windows.
wStart the ID-1 application by double clicking the icon on the
desktop, or select “ID-1” in the program menu.
• ID-1 main screen appears and “COM Port Error” may be dis-
played for 1st time as below.
eClick [Port Setup].
• COM Port Setup dialog box appears.
rEnter the appropriate COM port number from the PC’s key-
board within 1–256 range, then click [Apply].
• See pages 28, 29 for how to confirm the COM port number.
• The transceiver power comes up and the default frequency will
be displayed on the main screen when the correct port number is
entered.
• Once the COM port is set, this operation will not be necessary.
• When using multiple radios with the same Laptop, changing the
COM Port number will be required each time a new radio is con-
nected to the computer.
tClick [POWER] to turn the power OFF.
• The transceiver power can also be turned OFF by pushing
[POWER] on the ID-1 front panel.
Click
Enter the appropriate
port number
(within 1–256)
Click
Click
ID-1_ENG_2.qxd 04.9.22 9:29 Page 32 (1,1)
