87
11 SCAN OPERATION
New2001
• Call Sign— YOUR, RPT1, RPT2
Click to select the cell, then enter the desired station or
repeater call sign from the PC keyboard directly.
• Memory Name
Click to select the cell, then enter the desired memory
name from the PC keyboard directly.
tRepeat the steps w to r to program another scan edge
channel.
yTo close the Memory Channel screen, click “” in tool bar
or click “
.
”
DD
Programming with the RC-24
qSet the desired scan edge frequency in VFO mode.
➥ Set the operating mode with [MODE]
➥ Set the frequency using [DIAL] or keypad.
➥ Set other data (e.g. station call sign, tone information,
etc.) if required.
wPush [MW•6] momentarily.
• Memory channel number blinks.
eRotate [DIAL] to select a scan edge channel to be pro-
grammed.
• Select “MPA” as the PA, “MPB” as the PB channel.
rPush [MW•6] for 0.5 sec. to program.
• 3 beeps sound.
• Scan edge channel number automatically increases when con-
tinuing to push [MW•6] after programming.
tRepeat the steps q to r to program the another scan
edge channel.

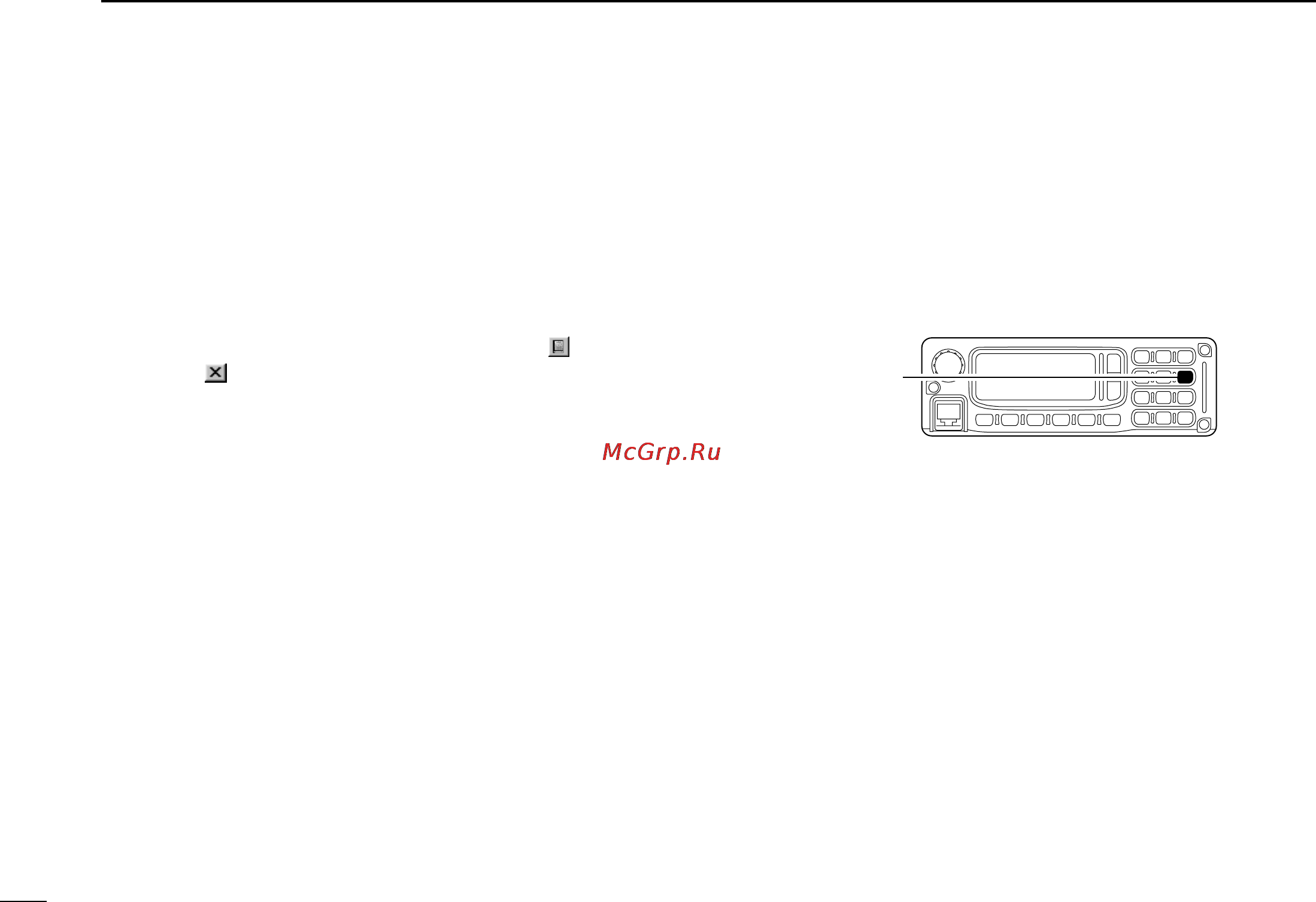

[MW•6]
ID-1_ENG_2.qxd 04.9.22 9:30 Page 87 (1,1)
