3 DRIVER INSTALLATION
New2001

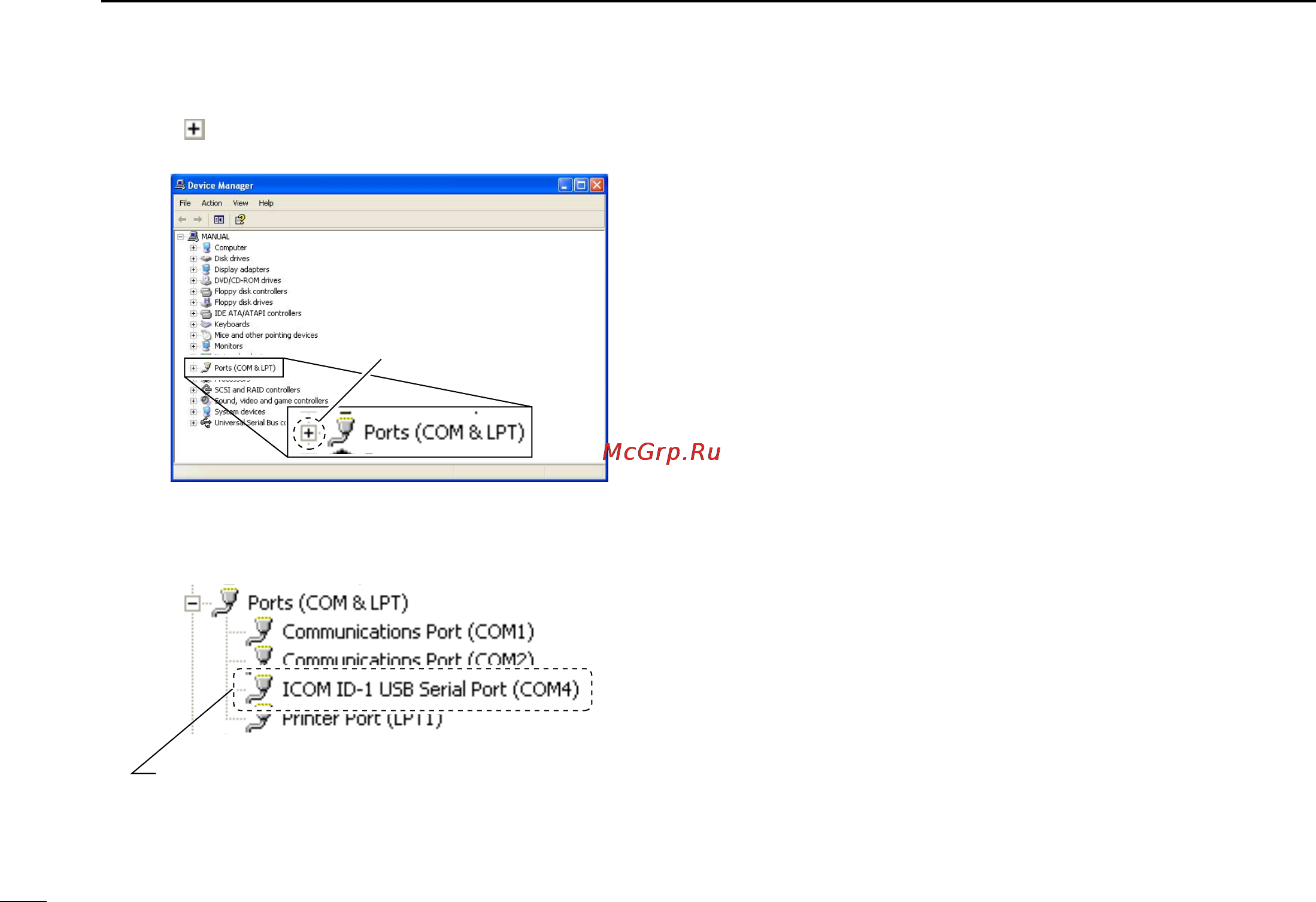

yClick “” of the “Ports (COM & LPT)” to display the usable
COM port and the port number.
uConfirm the USB serial port availability and the COM port
number.
• The COM port number is used for the COM port setup. (p. 32)
iClose the Device Manager, System Properties screen and
then Control panel.
Confirm the USB serial port availability and the COM port
number.
(In this example, the USB serial port number is “4.”)
Click
