BASIC OPERATION
5
■ Audio level adjustment
DD
From the application

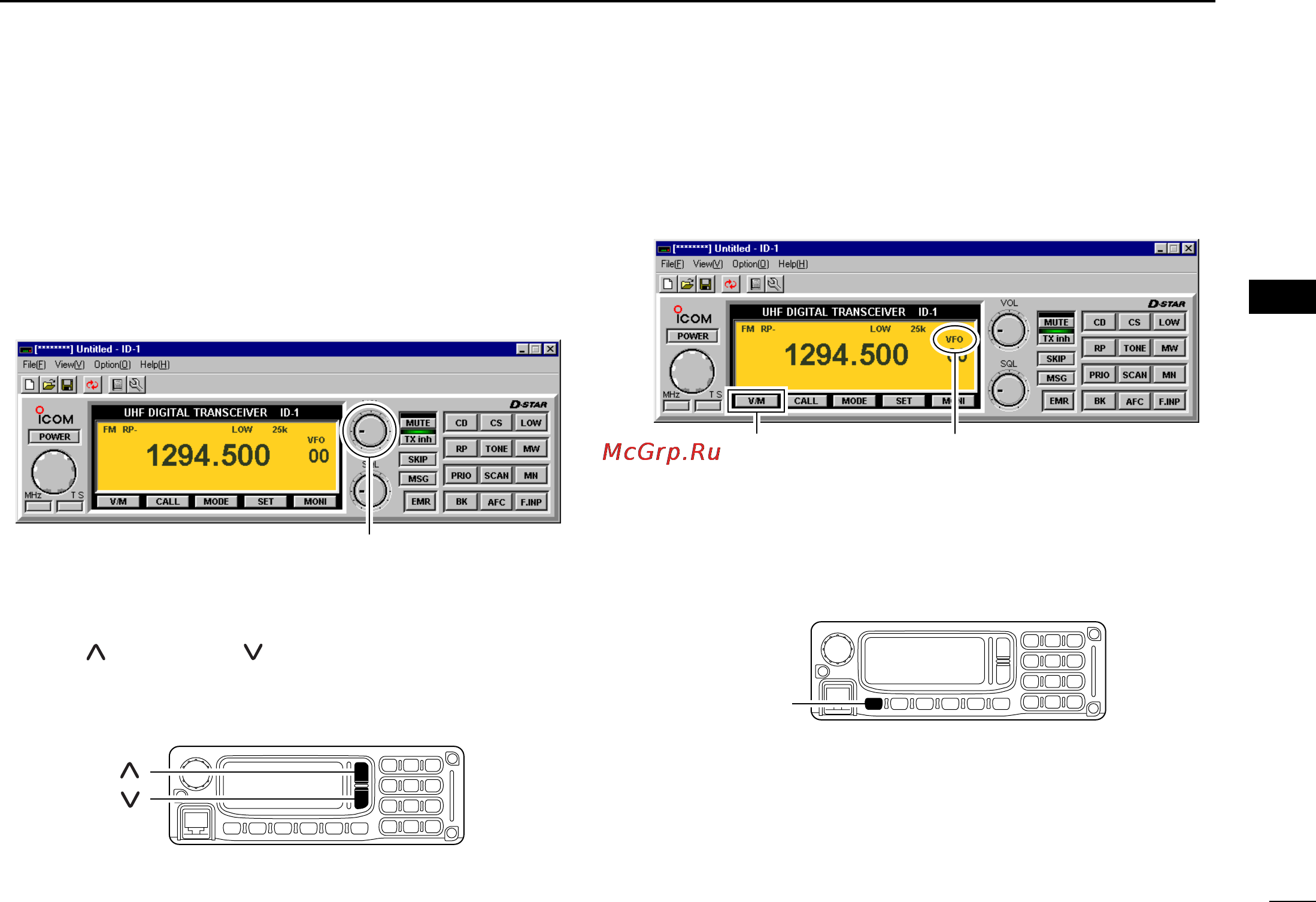

qOpen the squelch.
• The monitor function is available to open the squelch without ad-
justing [SQL] level— click [MONI] to open and close the squelch.
wSet the pointer on [VOL] control then; right click to in-
crease, left click to decrease the audio level.
DD
From the RC-24
➥ Push [ ] to increase, [ ] to decrease the audio level.
•“VOL” and set level appear on the function display.
• The audio level can be adjusted within 0 (no audio) to 32 (max.
audio) levels.
■ VFO and memory mode
DD
From the application
➥ Click [V/M] to toggle between VFO and memory mode.
DD
From the RC-24
➥ Push [V/M] to toggle between VFO and memory mode.
•“M” appears besides memory channel number when memory
mode is selected.
[V/M]
Click “VFO” or “MEMO” appears
[ ]
[ ]
Right click to increase; Left click to decrease
ID-1_ENG_2.qxd 04.9.22 9:29 Page 34 (1,1)
