40
6
CALL SIGN SETTING
New2001
6
DD

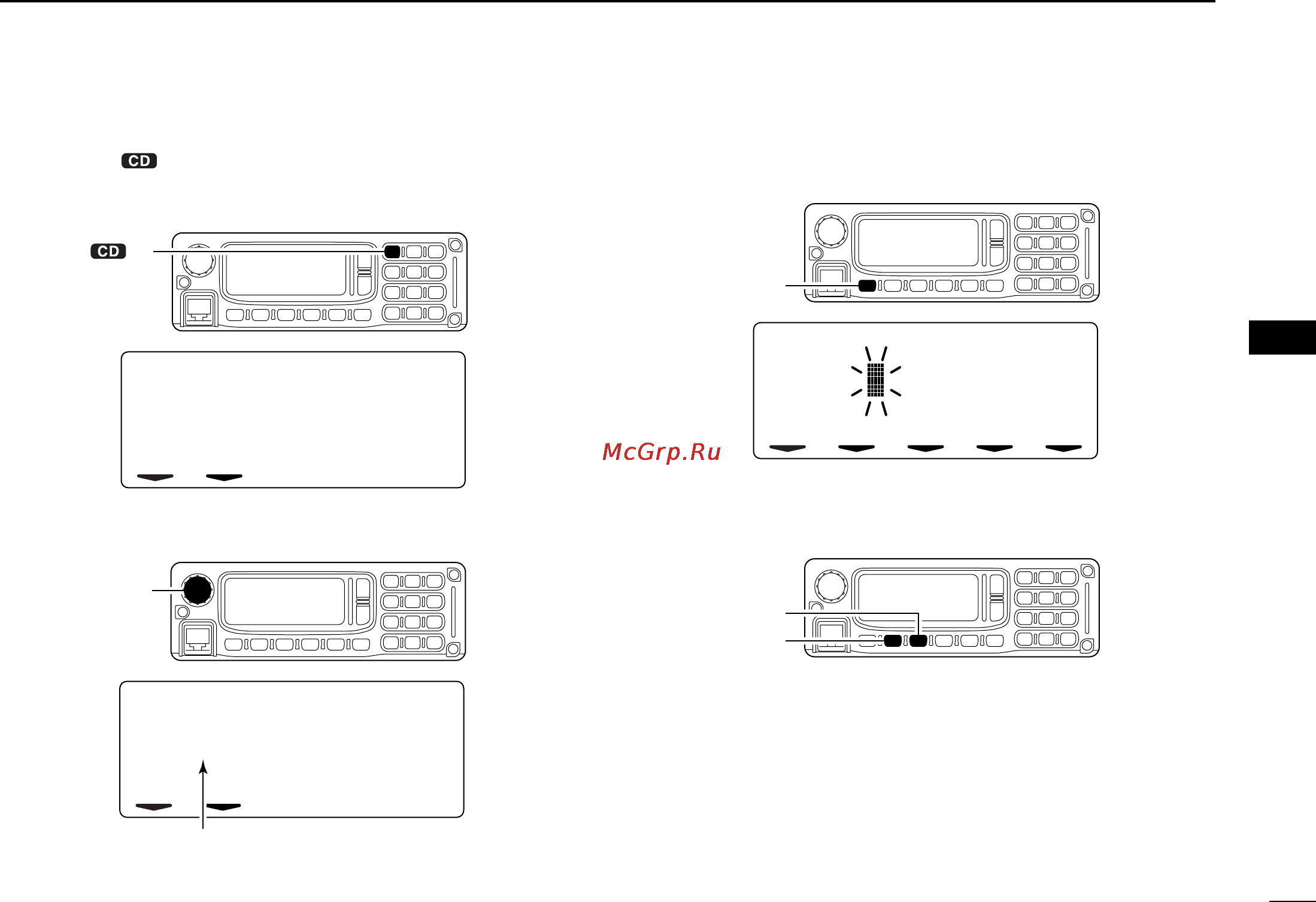

Setting with the RC-24
qPush [CS••1] 4 times to enter call sign select mode and
select My call sign item.
•“MY” call sign channel number and programmed call sign appear.
wRotate [DIAL] to select the desired call sign channel.
• Displays “********” when no call sign is programmed.
ePush [V/M] to enter the call sign edit condition.
• The 1st digit blinks.
rPush [CALL] or [MODE] to select the digit to be edited.
• Pushing [CALL] moves the cursor to left; pushing [MODE] moves
cursor to right.
[CALL]
[MODE]
SçåAAB
MY
1:********
[V/M]
E/
MY
1:********
[DIAL]
Channel number
E/
MY
0:********
[CS• •1]
ID-1_ENG_2.qxd 04.9.22 9:29 Page 40 (1,1)
