22
3
DRIVER INSTALLATION
New2001
3
■ Microsoft
®
Windows
®
98/Me
qConnect the ID-1 to the desired USB port.
• Push [POWER] to turn the power ON.
•“New Hardware is found” dialog box appears.

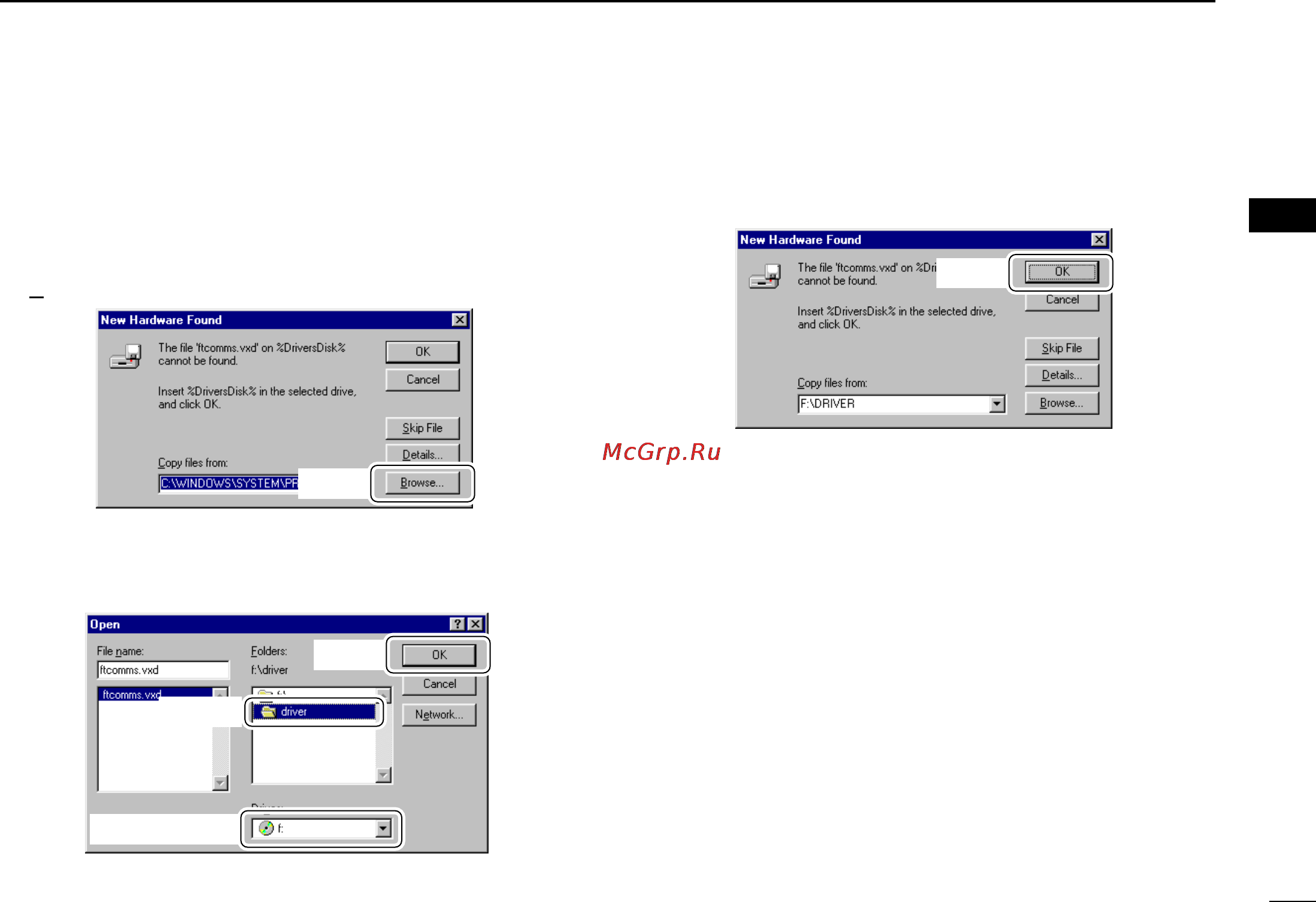

wThe “New Hardware Found” will come up as below. Click
[B
rowse...].
eInsert the supplied CD into the drive.
rClick [Z] to select the appropriate CD-ROM drive then click
“Driver” folder. After the driver is found, click [OK].
tClick [OK].
• The driver installation starts.
yAfter the installation, eject the CD.
• Rebooting the PC is recommended.
Click
e Click
q Click to select
w Select
Click
ID-1_ENG_2.qxd 04.9.22 9:29 Page 22 (1,1)
