36
5
BASIC OPERATION
New2001
5
DD

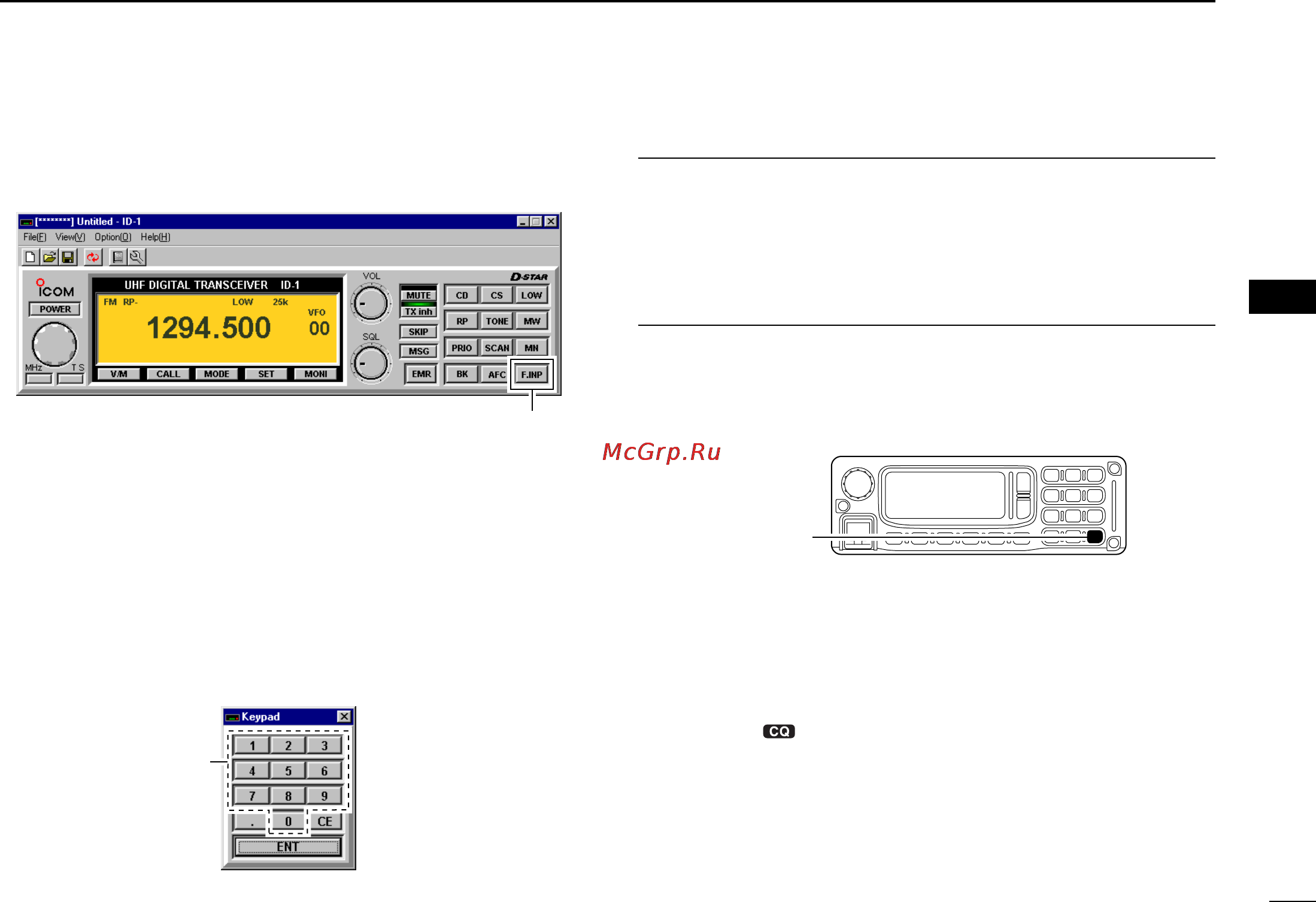

Direct frequency input from the application
qClick [F.INP].
• Keypad screen appears.
wClick 4 to 7 digit desired numeric buttons to enter the de-
sired operating frequency within 1240.000 to
1300.000 MHz range.
• After the 7th digit is entered, the frequency automatically fixed
and set to the transceiver.
• Click [ENT] to fix and set the frequency when 4 to 6 digits are en-
tered.
• When a digit is mistakenly input, click [CE] to clear the input, then
input from the 1st digit.
• Click [.] first, when changing frequency below 100 kHz digits.
Hint!
The direct frequency input can also be performed from the
PC’s keyboard.
Enter the desired operating frequency via the PC’s keyboard.
e.g. When entering 1295.575 MHz;
[1], [2], [9], [5], [.], [5], [7], [5]
DD
Direct frequency input from the RC-24
qPush [F.INP•L]
• Operating frequency disappears.
wPush the appropriate 7-digit keys to enter the desired op-
erating frequency.
• After the 7th digit is entered, the frequency automatically fixed
and set to the transceiver.
• When a digit is mistakenly input, push [F.INP•L] to clear the
input, then input from the 1st digit.
• Push [BK••.] first, when changing frequency below 100 kHz
digits.
[F.INP•L]
Numeric buttons
Click
