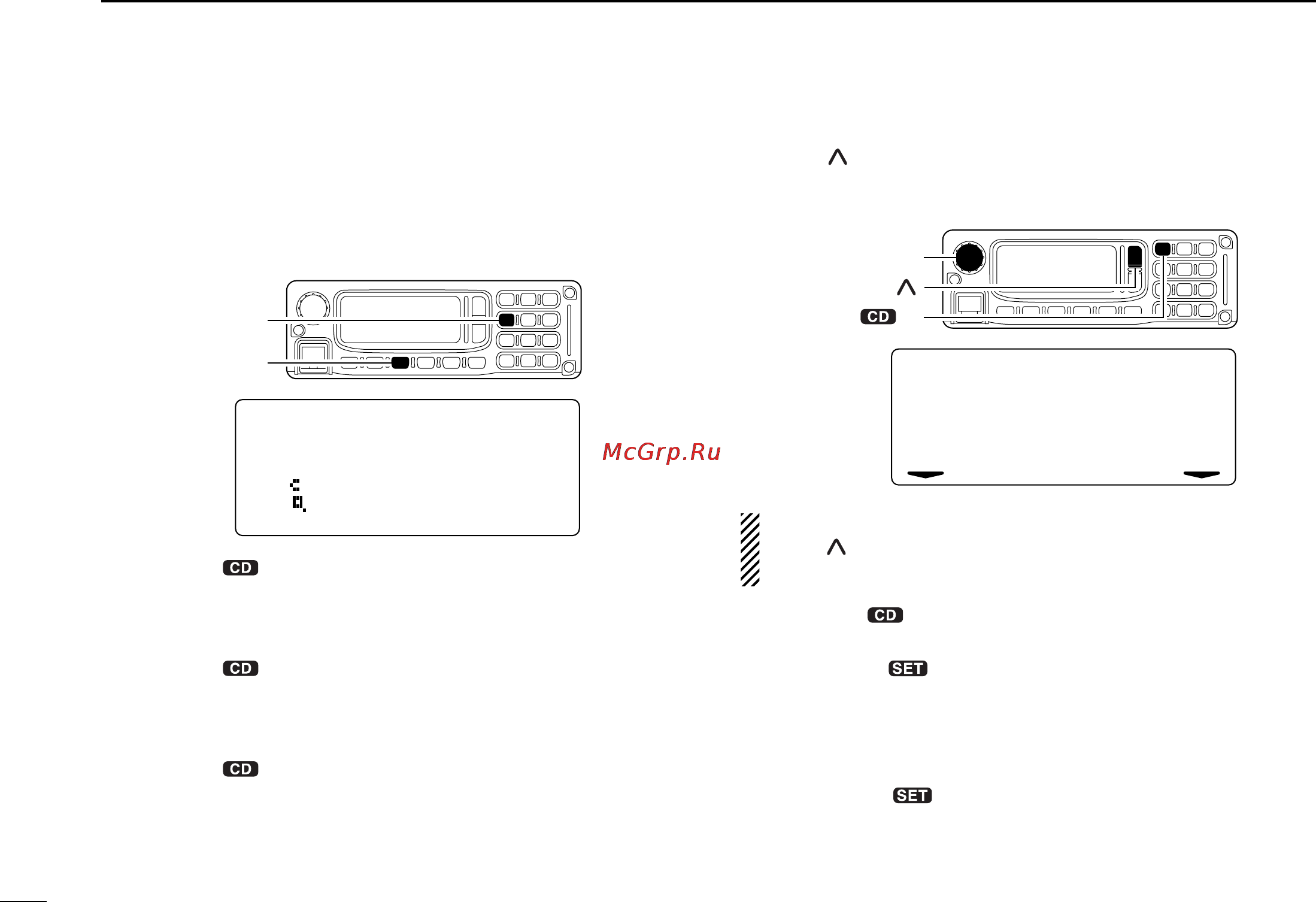

9 DATA OPERATION
New2001
DD
Setting from the RC-24
qPush [MODE] to select DD (Data) mode.
•“DD” appears.
wSet the near-by repeater frequency.
ePush [RP•4] several times to select “RPS.”
• “RPS” displayed briefly.
rPush [CS••1] to enter call sign select mode, then rotate
[DIAL] to select the gateway repeater call sign.
• Refer to the pages 42 to 44 for call sign setting when the desired
call sign is not programmed.
tPush [CS••1] one more time to select “RPT1,” then ro-
tate [DIAL] to select the desired near-by repeater call sign.
• Refer to the pages 42 to 44 for call sign setting when the desired
call sign is not programmed.
yPush [CS••1] one more time to select “RPT2,” then ro-
tate [DIAL] to select the gateway repeater call sign.
uPush [ ] for 0.5 sec. to enable the gateway connection,
when the repeater requires the “G” setting.
•“G” appears beside the call sign.
NOTE: When the near-by repeater is gateway repeater,
push [ ] for 0.5 sec. (if necessary) after the call sign set-
ting into “RPT1” in step t and skip step y.
iPush [CS••1] once (or twice) to exit call sign select
mode.
oPush [TXinh• ] to release transmission inhibit.
•“RPS” appears instead of “TXinh” indication.
• Starts accessing to the gateway repeater.
!0Start up a web browser then access to the desired web
site.
!1Push [TXinh• ] again to disconnect (inhibit the trans-
mission) from the gateway repeater.
LOW
E
s00:GATEWY W
RPT2:GATEWY GåG
G
[CS• •1]
[DIAL]
[ ]
LOW
DD TXinh
00
1294.500
[MODE]
[RP•4]
