10 MEMORY/CALL OPERATION
New2001
DD
Clearing from the application
— Memory Channel screen

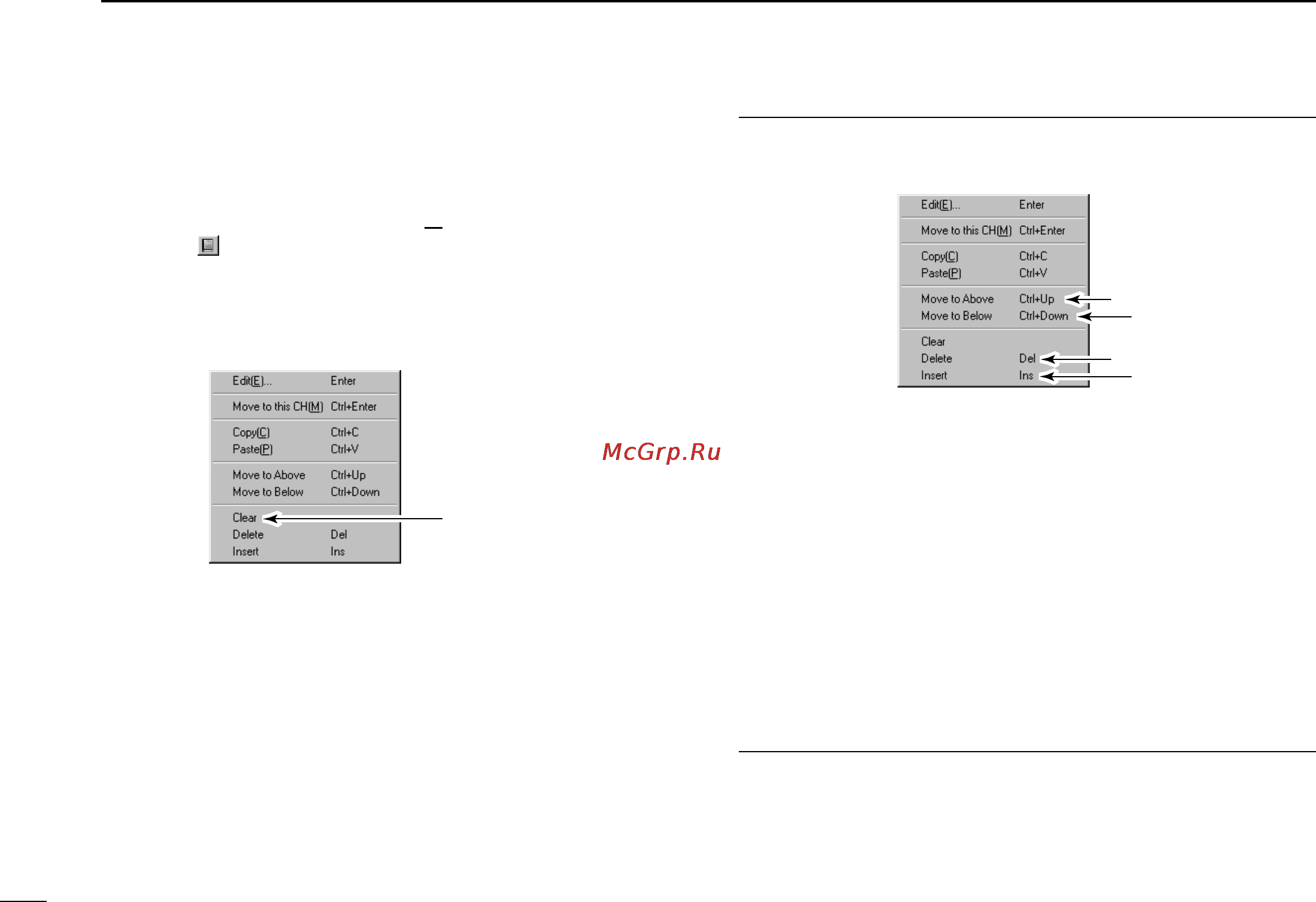

qDisplay the Memory channel screen.
- Select “Edit Memory Channel(M
)...” in View menu.
- Click “” in tool bar.
- Press [F6] key on the PC keyboard.
wRight click any cell of the desired memory channel to be
cleared, except “Select,” then select “Clear” from the dis-
played menu as below.
DD
Clearing with the RC-24
qPush [V/M] to select VFO mode.
wPush [MW•6] momentarily.
•“M--” blinks.
eSelect the desired memory channel with [DIAL] or keypad
to be cleared.
rPerform the following operations within 2 sec.
- Push [MW•6] momentarily.
- Push [MW•6] for 0.5 sec. again.
• The programmed frequency disappears and the selected mem-
ory channel number blinks.
Select to clear.
✔ For your convenience— Memory Chan-
nel screen other operations
qMove to above (Press [Ctrl] and [⇑] keys at the same time)
swaps the selected Memory Channel with the Channel
above it.
wMove to below (Press [Ctrl] and [⇓] keys at the same time)
swaps the selected Memory Channel with the Channel
below it.
eDelete [Del]
Deletes the selected Memory Channel and moves the
Memory Channels up one Memory Channel location.
rInsert [Ins]
Inserts an empty Memory Channel above the selected
Memory Channel and moves the Memory Channels down
one Memory Channel location.
q
w
e
r
