BASIC OPERATION
3
N Channel selection
D Channel 16
Channel 16 is the distress and safety channel. It is used for
establishing initial contact with a station and for emergency
communications. Channel 16 is monitored during both Du-
alwatch and Tri-watch. While standing by, you must monitor
Channel 16.
± Push ;s= momentarily to select Channel 16.
± Push ;#(78s$5!,s5)#= to return to the screen before
you selected Channel 16, or rotate [DIAL] to select an op-
erating channel.

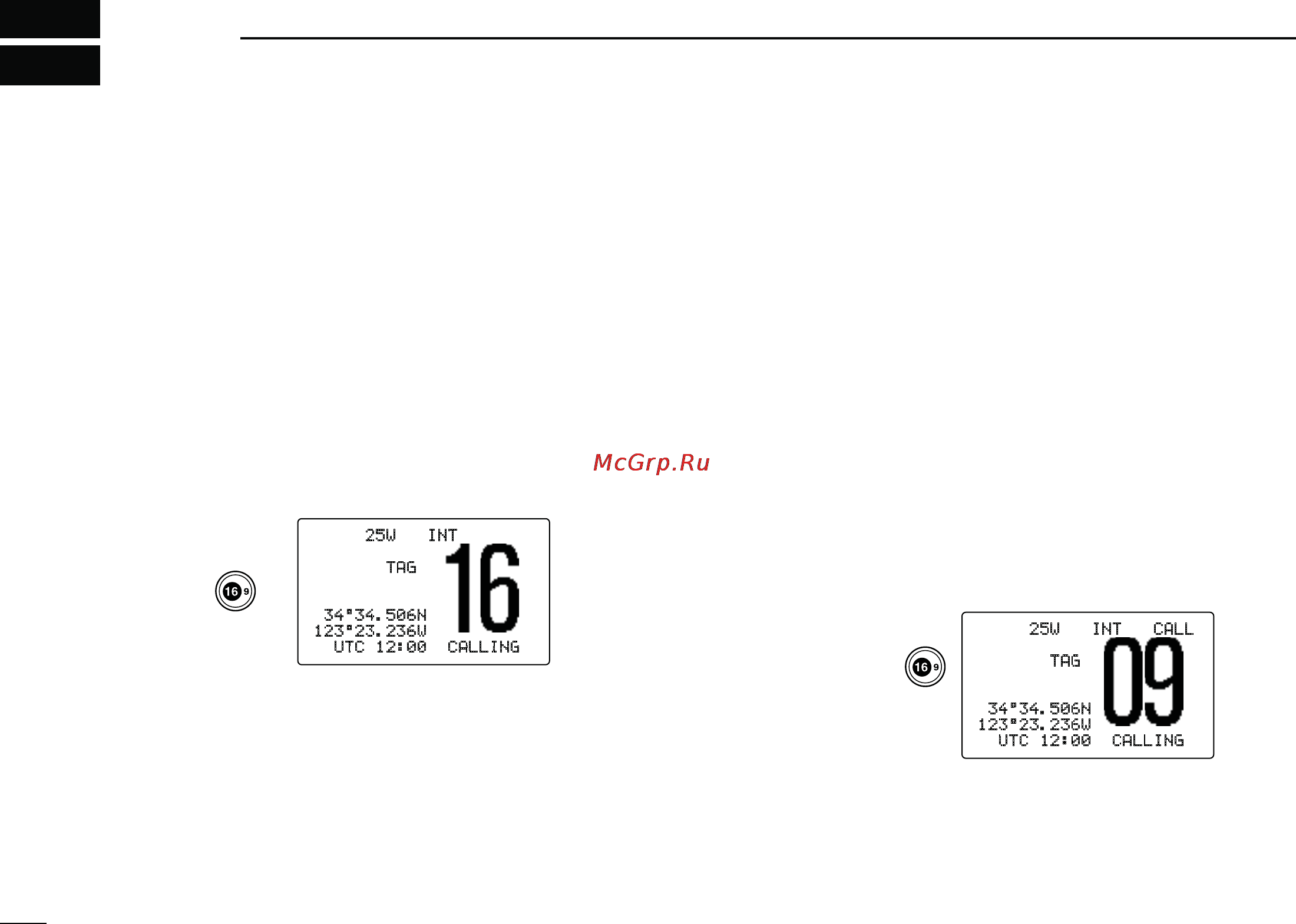

25W INT
TAG
34°34.506N
123°23.236W
UTC 12:00 CALLING
Push
D Channel 9 (Call channel)
Each regular channel group has a separate leisure-use Call
channel. The Call channel is monitored during Tri-watch. The
Call channels can be programmed and are used to store your
most often used channel in each channel group for quick re-
call. (p. 9)
± Hold down ;s= for 1 second to select the Call channel of
the selected channel group.
shCALL” and Call channel number appear.
s%ACHCHANNELGROUPMAYHAVEANINDEPENDENTCALLCHANNELAFTER
programming a Call channel. (p. 9)
± Push ;#(78s$5!,s5)#= to return to the screen before
you selected Call channel, or rotate [DIAL] to select a chan-
nel.
25W INT CALL
TAG
34°34.506N
123°23.236W
UTC 12:00 CALLING
Hold down
for 1 second
