21
6
DSC OPERATION
r After receiving the acknowledgment, reply using the micro-
phone.

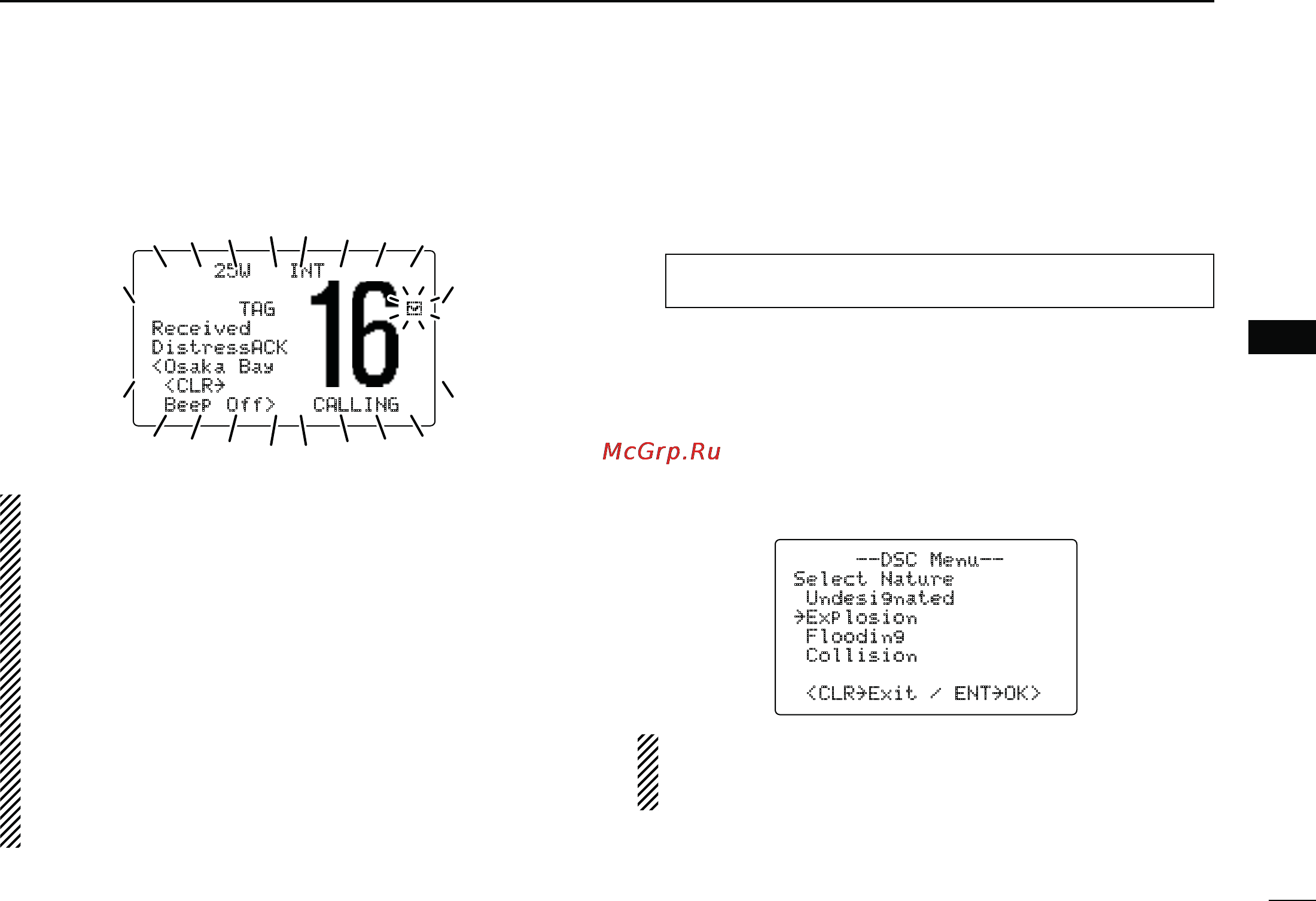

25W INT
TAG
Received
DistressACK
<Osaka Bay
<CLR
˘
Beep Off> CALLING
± A distress alert contains (default);
s+INDOFDISTRESS5NDESIGNATEDDISTRESS
s0OSITIONDATA 4HE LATEST'03ORMANUALINPUT POSITION
data is held for 23.5 hours, or until the
power is turned OFF.
± The Distress call is repeated every 3.5 to 4.5 minutes, until
an ‘acknowledgement’ is received. (‘Call repeat’ mode)
± Push [DISTRESS] to transmit a renewed Distress call,
if required.
± Push [CLR] to transmit the Cancel Ack call, then cancel
the ‘Call repeat’ mode.
± “??” may blink instead of position and time displays
when the GPS data is invalid, or has not been manually
updated for 4 hours.
D Regular call
The nature of the Distress call should be included in the Dis-
tress call.
q Enter “Distress Setting” in the DSC menu.
eDSC Menuf ¶ eDistress Settingf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to select the nature of the distress, then
push ;$)!,s%.4%2=.
s@5NDESIGNATED@%XPLOSION@&LOODING@#OLLISION@'ROUNDING
‘Capsizing,’ ‘Sinking,’ ‘Adrift (Disable adrift),’ ‘Abandoning (Aban-
doning ship),’ ‘Piracy (Piracy attack)’ and ‘MOB (Man overboard)’
are available.
sThe nature of the distress is stored for 10 minutes after a selec-
tion is made.
--DSC Menu--
Select Nature
Undesignated
˘Explosion
Flooding
Collision
<CLR˘Exit / ENT˘OK>
When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, steps e and r (Current position/time program-
ming) do not appear. Go to step t.
Continued on the next page.
