39
6
DSC OPERATION
D Receiving a Geographical Area Call
When a Geographical Area Call (for the area you are in) is
received:
± Emergency alarm or beeps sound depending on the re-
ceived category.
± “Received Geographic” appears on the display.
± “
” and the LCD backlight blink.
± Push [CLR] to stop the beeps and the backlight blinking,
then push ;$)!,s%.4%2= to change to the channel speci-
fied by the calling station for voice communication; push
other key to ignore the call.
s
“ ” continues to blink.
± Monitor the selected channel for an announcement from
the calling station.

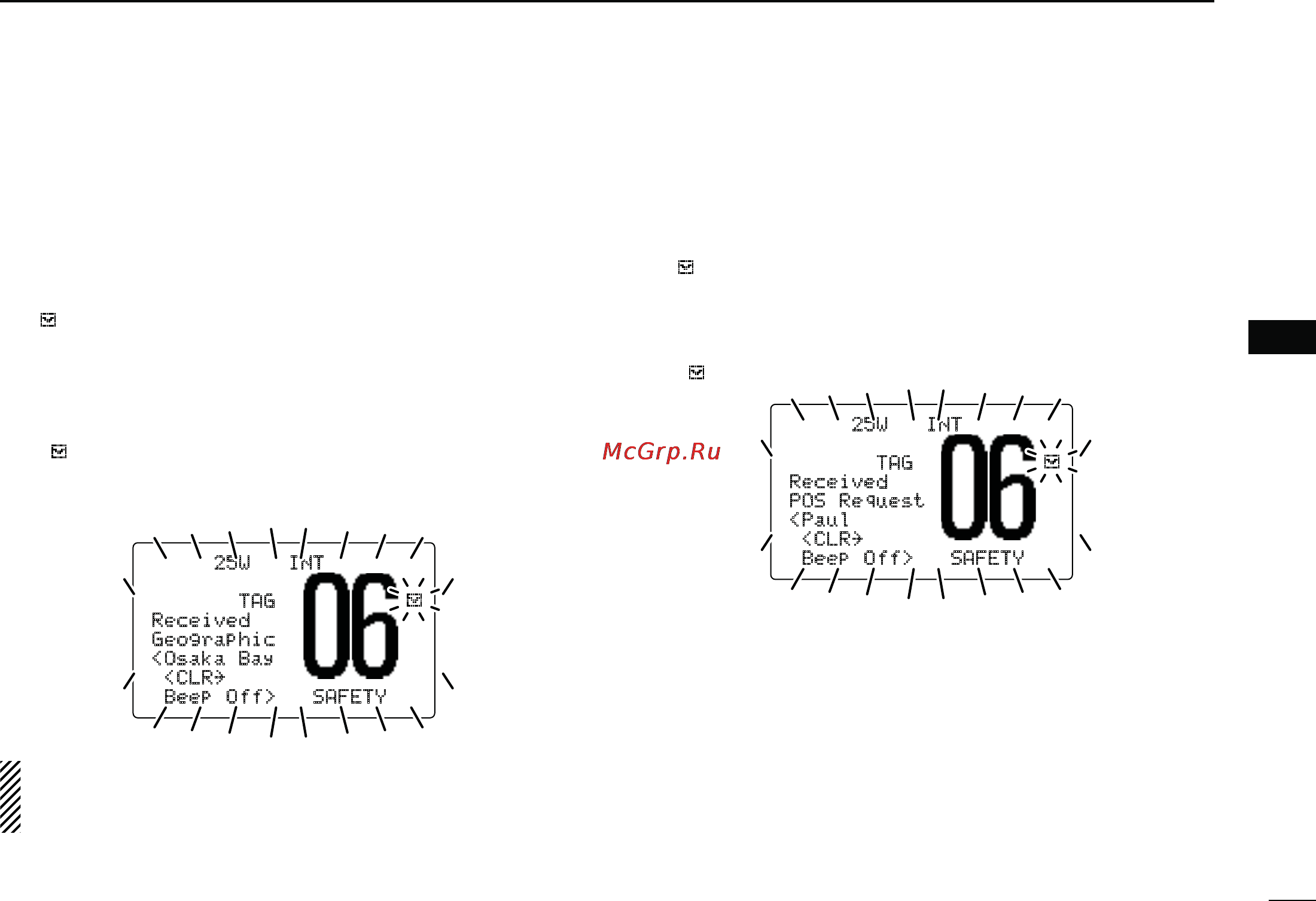

25W INT
TAG
Received
Geographic
<Osaka Bay
<CLR
˘
Beep Off> SAFETY
When no GPS receiver is connected or if there is a prob-
lem with the connected receiver, all Geographical Area
Calls are received, regardless of your position.
D Receiving a Position Request Call
When a Position Request Call is received:
± The beeps sound.
± “ Received POS Request” appears on the display.
± “
” and the LCD backlight blink.
±
Push [CLR] to stop the beeps and the backlight blinking,
then push
;$)!,s%.4%2=
to reply to the call; push [CLR] to
ignore the call.
s “ ” continues to blink.
25W INT
TAG
Received
POS Request
<Paul
<CLR
˘
Beep Off> SAFETY
