33
6
DSC OPERATION
D Transmitting a Position Report Reply call
Transmit a Position Report Reply Call when a Position Report
Call* is received.
When the Automatic Acknowledgement function is ON (p. 45),
the transceiver automatically transmits a reply call after receiv-
ing a Position Report call*.
*Only when the received Position Report call requires a reply,
q Enter “POS Report Reply” in the DSC menu.
shPOS Report Reply” item appears after a Position Report
Call is received.
eDSC Menuf ¶ ePOS Report Replyf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to select the desired individual address or
ID code, then push ;$)!,s%.4%2=.

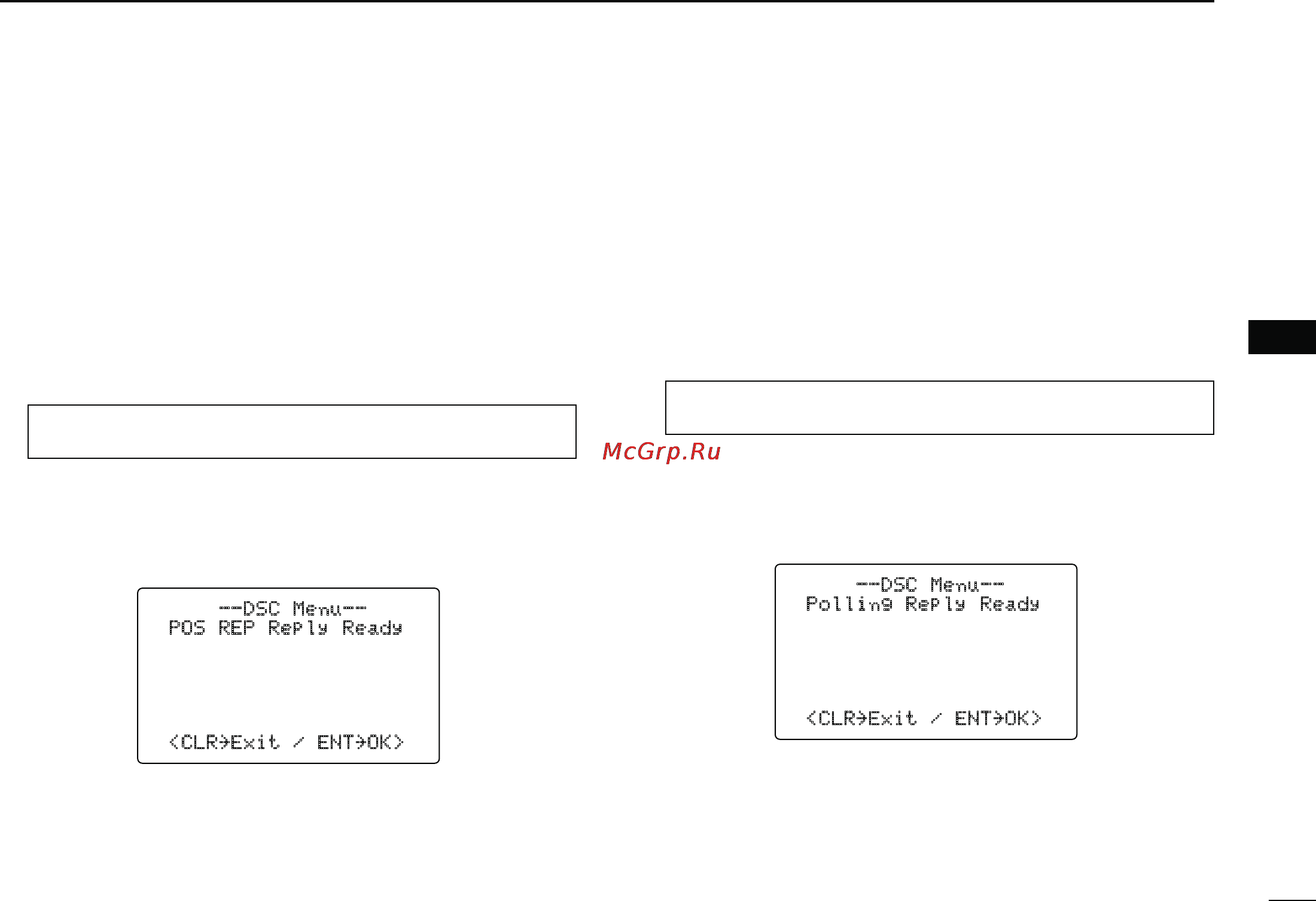

s!FTERPUSHING;$)!,s%.4%2=, “POS REP Reply Ready” is
displayed.
--DSC Menu--
POS REP Reply Ready
<CLR
˘
Exit / ENT
˘
OK>
e Push ;$)!,s%.4%2= to transmit the Position Report Reply
Call to the selected station.
s%MERGENCYCHANNEL#HANNELISAUTOMATICALLYSELECTED
s If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
D Transmitting a Polling Reply Call
Transmit a Polling Reply Call when a Polling Request Call is
received.
When the Automatic Acknowledgement function is ON (p. 45),
the transceiver automatically transmits a reply call after receiv-
ing a Polling Request call.
q Enter “Polling Reply” in the DSC menu.
shPolling Reply” item appears after a polling request call is
received.
eDSC Menuf ¶ ePolling Replyf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to select the desired individual address or
ID code, then push ;$)!,s%.4%2=.
s!FTERPUSHING;$)!,s%.4%2=, “Polling Reply Ready” is
displayed.
--DSC Menu--
Polling Reply Ready
<CLR
˘
Exit / ENT
˘
OK>
e Push ;$)!,s%.4%2= to transmit the Polling Reply call to
the selected station.
s%MERGENCYCHANNEL#HANNELISAUTOMATICALLYSELECTED
s If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
