29
6
DSC OPERATION
D Transmitting a Position Request Call
Transmit a Position Request Call when you want to know a
specific ship’s current position, etc.
q Enter “Position Request” in the DSC menu.
eDSC Menuf ¶ ePosition Requestf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to select the desired pre-programmed
individual address, or “Manual Input,” then push
;$)!,s%.4%2=.
s4HE)$CODEFORTHE)NDIVIDUALCALLCANBESETlRSTP
sWhen “Manual Input” is selected, set the 9 digit MMSI ID
code for the individual you wish to call with [DIAL]. (See ‘About
Manual Inputting’ as described on page 24.)
s!FTERPUSHING;$)!,s%.4%2=, “POS Request Ready” is
displayed.

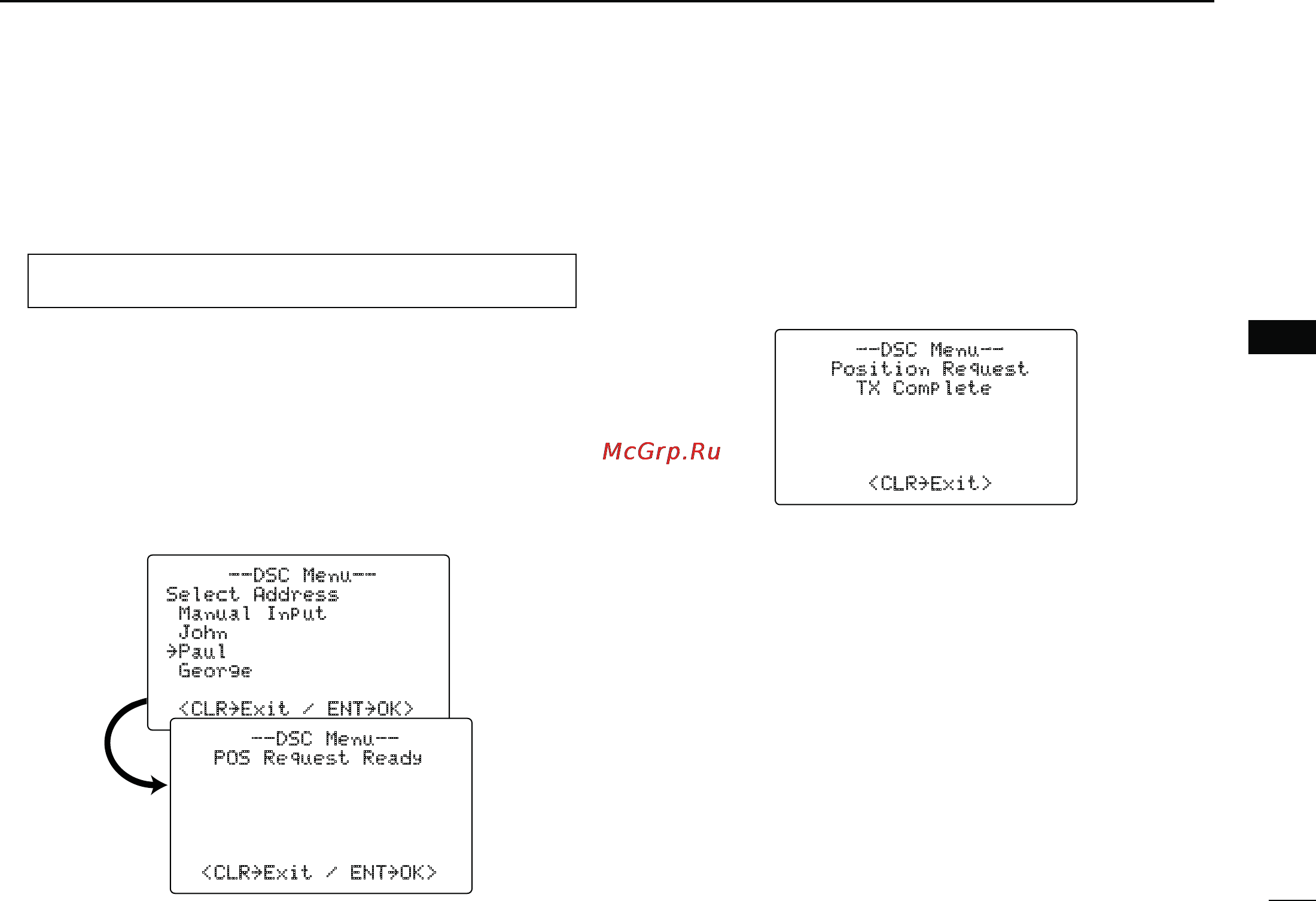

--DSC Menu--
Select Address
Manual Input
John
˘Paul
George
<CLR
˘
Exit / ENT
˘
OK>
--DSC Menu--
POS Request Ready
<CLR
˘
Exit / ENT
˘
OK>
e Push ;$)!,s%.4%2= to transmit the Position Request
Call.
s%MERGENCYCHANNEL#HANNELISAUTOMATICALLYSELECTED
s If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
r After the Position Request Call has been transmitted, the
following message is displayed.
--DSC Menu--
Position Request
TX Complete
<CLR
˘
Exit>
t Push [CLR] to return to the previous screen before you
entered the DSC menu.
s%VENIF[CLR] hasn’t been pushed, the display automatically re-
turns to the previous screen after 2 second of inactivity.
