62
9
CONNECTIONS AND MAINTENANCE
N UT-112/UT-98 installation (Continued)
r Return the cables and screws to the original position.
sBe sure the flat cable is not installed upside down.
CAUTION:
s7HENREASSEMBLINGTHECASEANDTIGHTENINGTHESCREWS
you must keep the specified torque (0.5±0.07 Nsm). Oth-
erwise, the transceiver may be damaged (torque too
high) or lose waterproof efficiency (torque too low).
s7HENUNINSTALLINGTHEOPTIONALUNITREMOVEITVERTICALLY
Wiggling the unit from side to side may damage the con-
nector.
N Microphone installation

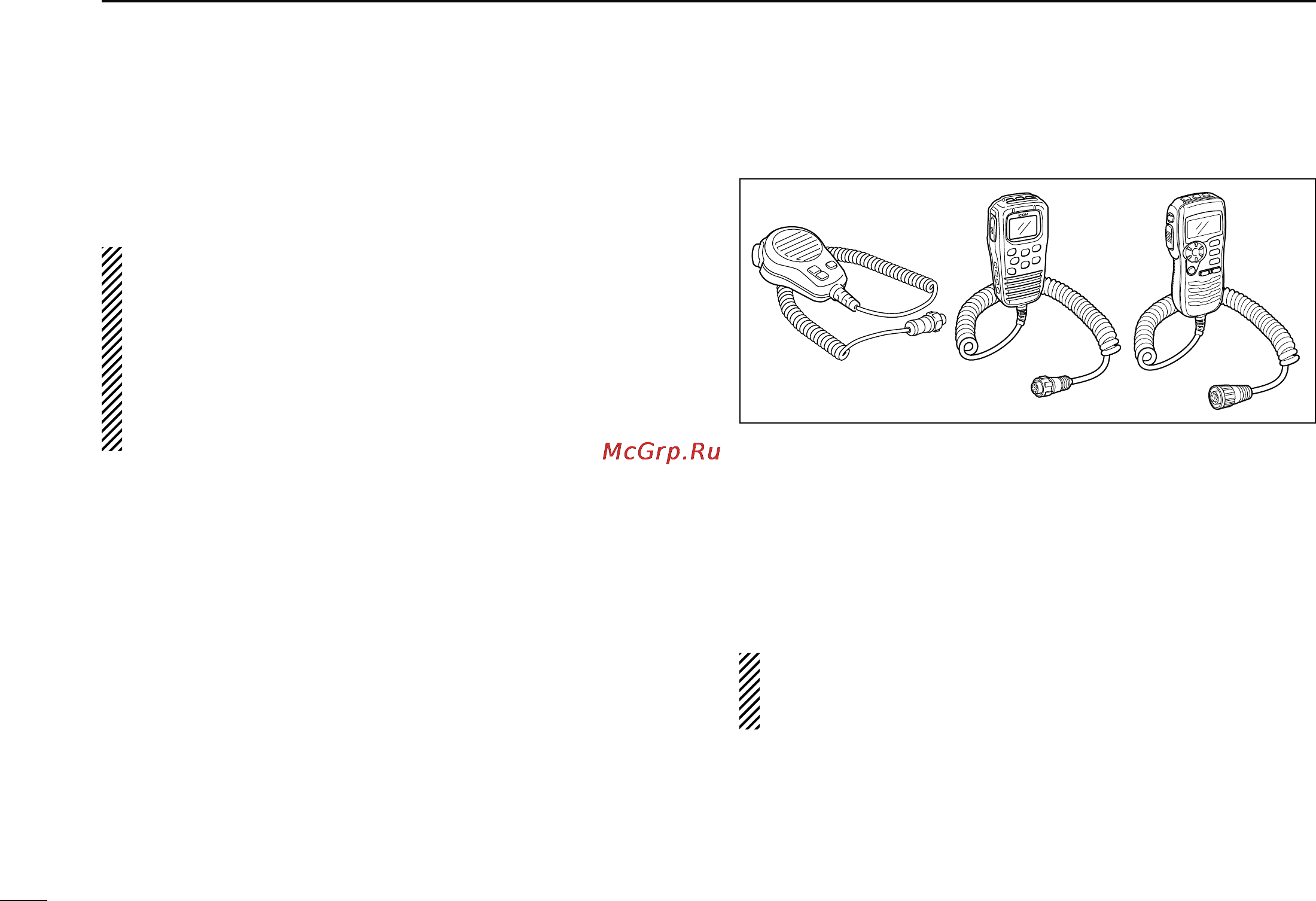

HM-126* HM-157 HM-162
The supplied/optional HM-126* and optional HM-157 can
be connected to the transceiver directly, as well as using the
long connection cable that comes with the microphone.
The connection cable is used for a longer distance remote
operation, and the cable connector can be installed into a
cabinet, wall, etc., as a built-in plug.
* Not supplied with some versions.
The optional HM-162 should be attached to the transceiver
using the connection cable that comes with the micro-
phone.
