Icom IC-M504A [70/80] Connections and maintenance
![Icom IC-M504A [70/80] Connections and maintenance](/views2/1074291/page70/bg46.png)
64
9
CONNECTIONS AND MAINTENANCE
N Microphone installation (Continued)
w To use the connection cable as a wall socket, perform the
following steps.
e Using the mounting base as a template, carefully mark the
holes where the cable and three screws will be fastened.
r Drill holes at these marks.

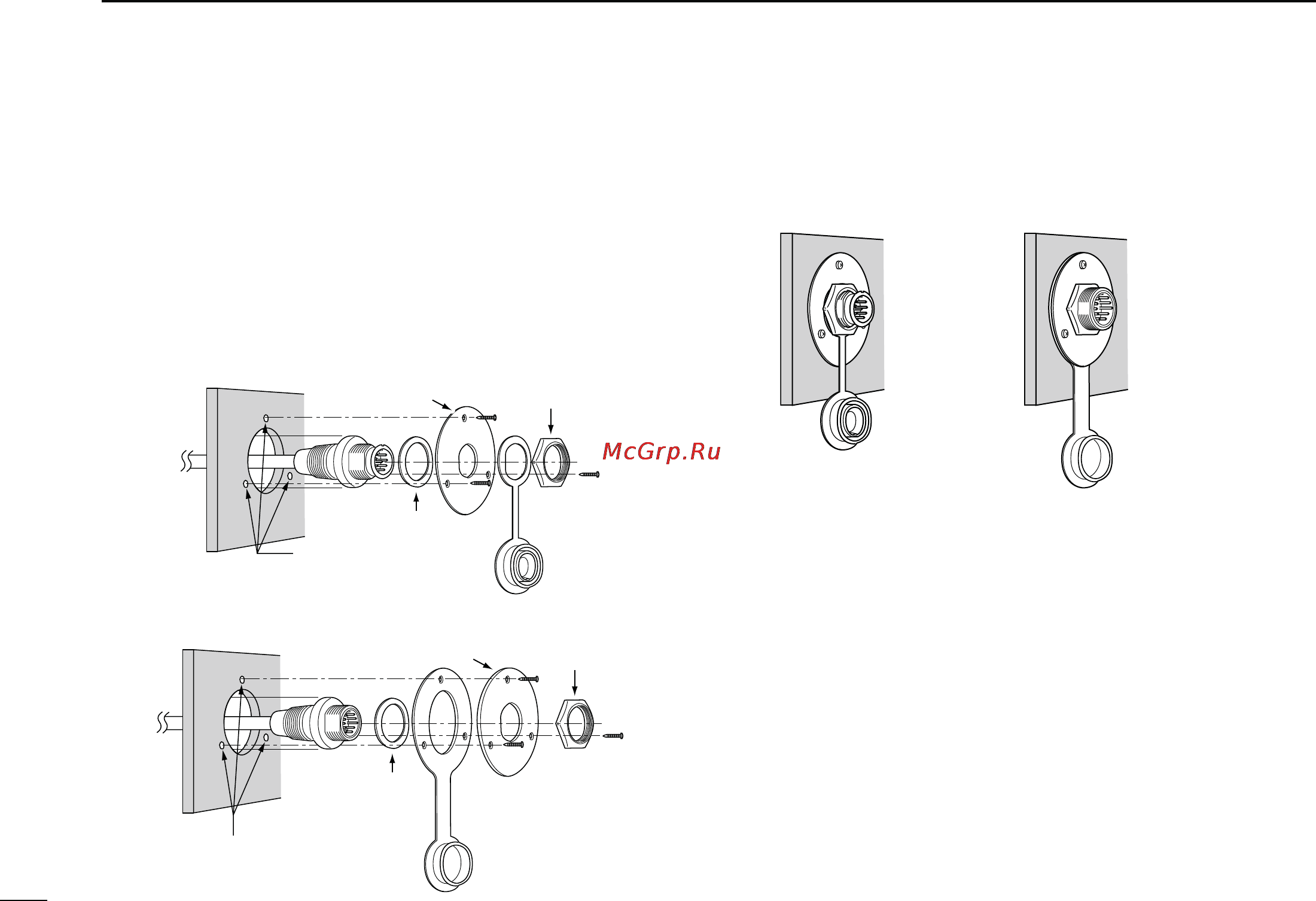

t Install the mounting base using the supplied screws as
shown below.
s(-(-
Gasket
Cap
Mounting base
Nut
Screw holes
(approx. 2 (d) mm;
3
⁄32˝)
s(-
Gasket
Cap
Mounting base Nut
Screw holes
(approx. 2 (d) mm;
3
⁄32˝)
y The completed installation should look like this.
s(-(- s(-
