25
6
DSC OPERATION

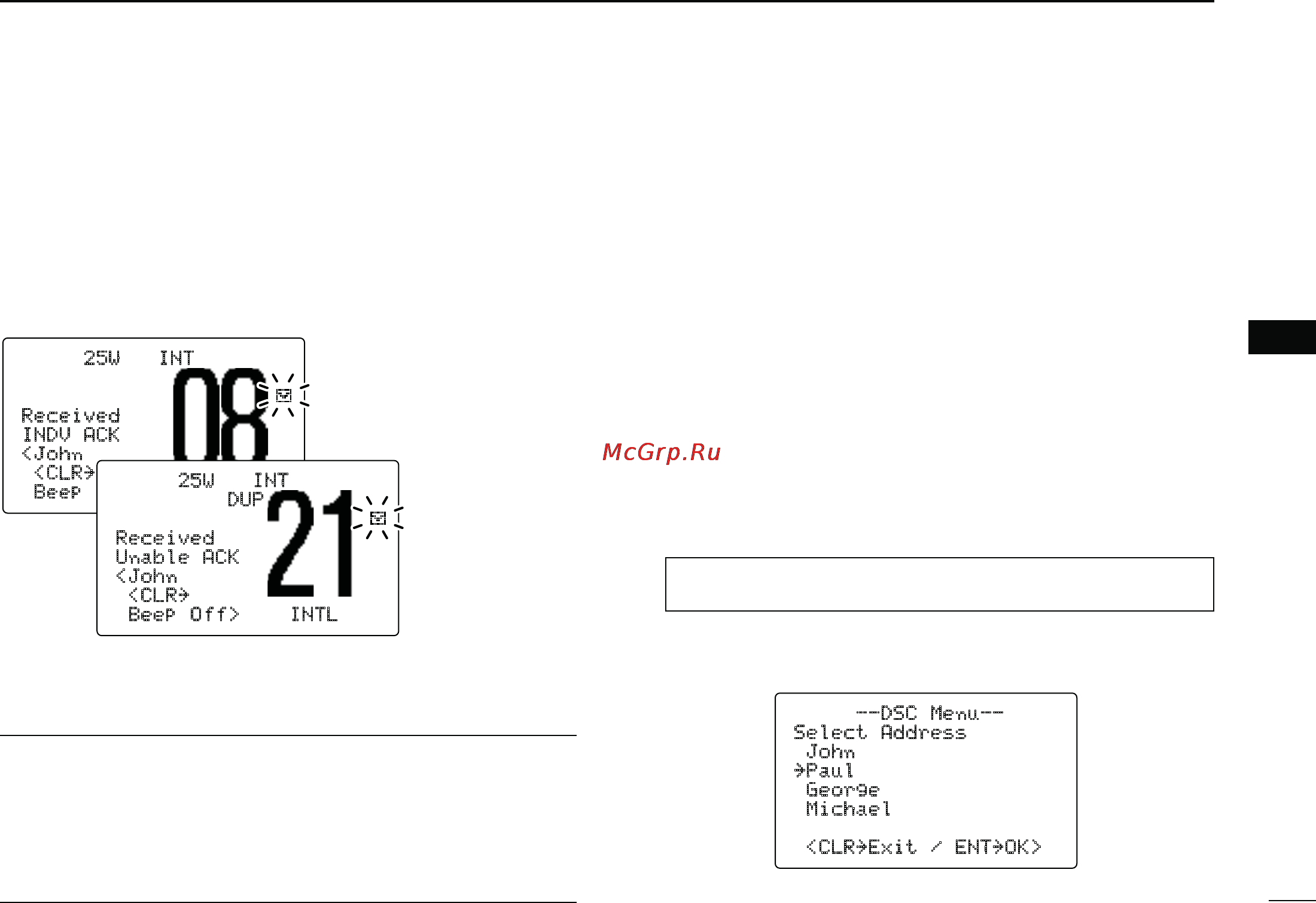

y When the acknowledgement ‘Able to comply’ is received,
the channel specified in step e is selected and beeps au-
tomatically sound.
Or, when the acknowledgement ‘Unable to comply’ is re-
ceived, beeps sound and the display returns to the oper-
ated channel (before you entered the DSC menu).
25W INT
Received
INDV ACK
<John
<CLR
˘
Beep Off> COMMERCIAL
25W INT
DUP
Received
Unable ACK
<John
<CLR
˘
Beep Off> INTL
‘Able to comply’
is received.
‘Unable to comply
’
is received.
u Push [CLR] to stop the beeps, then hold down [PTT] to
communicate your message to the responding ship.
Convenient!
When the lcom MA-500TR
CLASS B AIS TRANSPONDER
is con-
nected to your transceiver, you can transmit individual DSC
Calls to selected AIS targets on the transponder without
needing to enter the target’s MMSI code.
See the MA-500TR instruction manual for more details.
D Transmitting an Individual Acknowledgement
When receiving an Individual Call, you can transmit an ac-
knowledgement (‘Able to comply’ or ‘Unable to comply’) by
using the on screen prompts (Quick ACK.) Also, you can
send an acknowledgement through the menu system (Man-
ual ACK.)
Quick ACK:
± After an Individual call is received, push [CLR] to stop the
beeps, and then push ;$)!,s%.4%2=. (Now go to step e
on the next page.)
Manual ACK:
q Enter “Individual ACK” in the DSC menu.
shIndividual ACK” item appears after an Individual Call is
received.
eDSC Menuf ¶ eIndividual ACKf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to select the desired individual address or
ID code, then push ;$)!,s%.4%2=.
--DSC Menu--
Select Address
John
˘Paul
George
Michael
<CLR
˘
Exit / ENT
˘
OK>
Continued on the next page.
