26
6
DSC OPERATION
N Transmitting DSC calls
D Transmitting an Individual Acknowledgement (Continued)
e Rotate [DIAL] to select “Able to Comply” or “Un-
able to Comply,” then push ;$)!,s%.4%2=.
s7HENhUnable to Comply” is selected, ‘No Reason Given’
will be transmitted.
s!FTERPUSHING;$)!,s%.4%2=, “Individual ACK Ready”
is displayed.

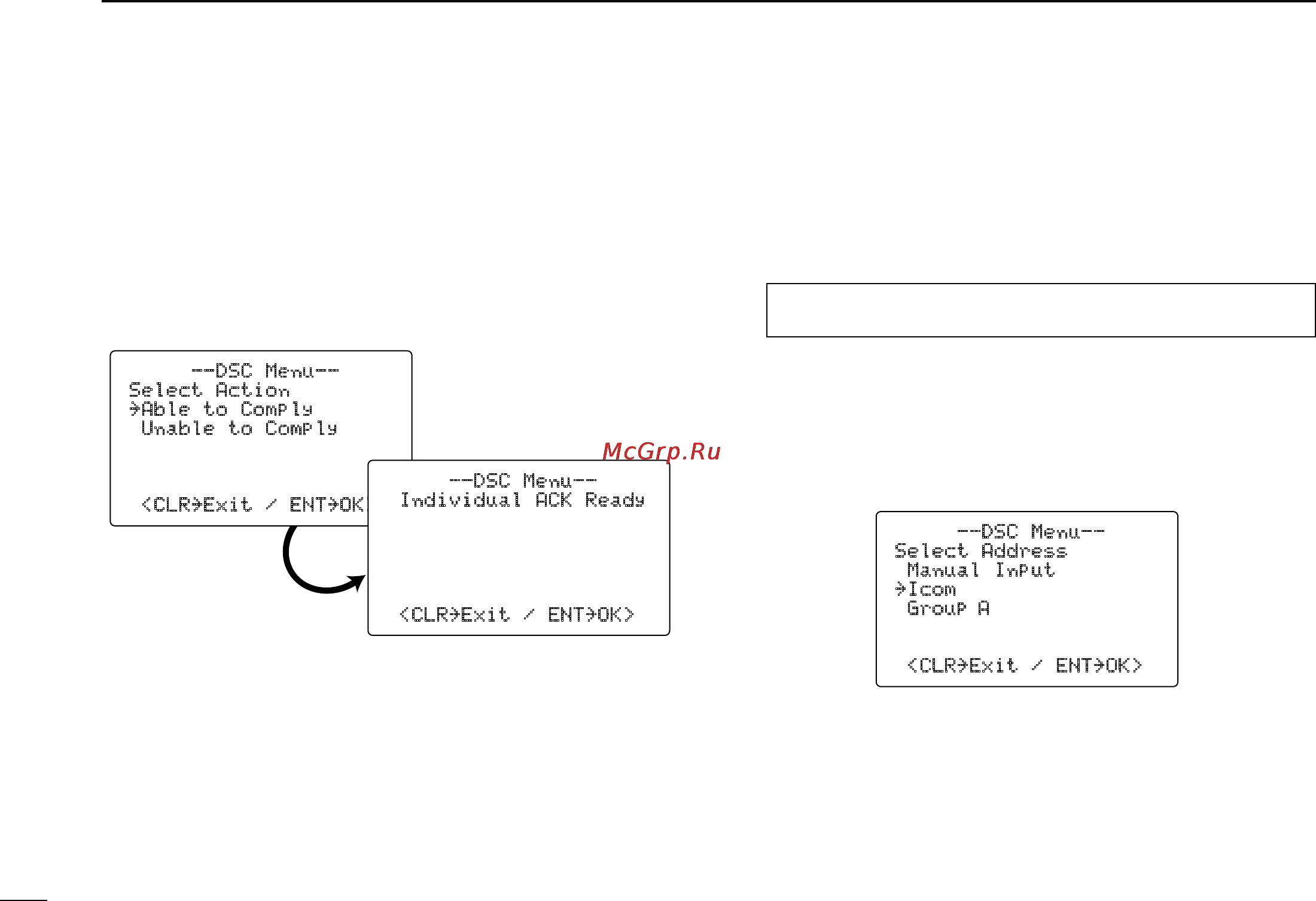

--DSC Menu--
Select Action
˘Able to Comply
Unable to Comply
<CLR
˘
Exit / ENT
˘
OK>
--DSC Menu--
Individual ACK Ready
<CLR
˘
Exit / ENT
˘
OK>
r Push ;$)!,s%.4%2= to transmit the Acknowledgement
Call to the selected station.
s%MERGENCYCHANNEL#HANNELISAUTOMATICALLYSELECTED
s If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
t After the call has been transmitted, the channel, speci-
fied by the calling station, is automatically selected when
“Able to Comply” is selected in step e. Or the dis-
play returns to the previous screen (before you entered the
DSC menu) when “Unable to Comply” is selected.
D Transmitting a Group Call
The Group Call function allows you to transmit a DSC signal
to only a specific group.
q Enter “Group Call” in the DSC menu.
eDSC Menuf ¶ eGroup Callf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w
Rotate [DIAL] to select the desired pre-programmed group
address or “Manual Input,” then push ;$)!,s%.4%2=.
s4HE)$CODEFORTHE'ROUPCALLCANBESETlRSTP
sWhen “Manual Input” is selected, set the 8 digit ID code for
the group you wish to call with [DIAL]. (See ‘About Manual Input-
ting’ as described to the right.)
--DSC Menu--
Select Address
Manual Input
˘Icom
Group A
<CLR
˘
Exit / ENT
˘
OK>
