42
6
DSC OPERATION
N Receiving DSC calls (Continued)
D Receiving a Test Call
When a Test Call is received:
± The beeps sound.
± “Received Test Call” appears on the display.
± “
” and the LCD backlight blink.
± Push [CLR] to stop the beeps and the backlight blinking,
then push ;$)!,s%.4%2= to reply to the call; push [CLR]
to ignore the call
.
s “ ” continues to blink.

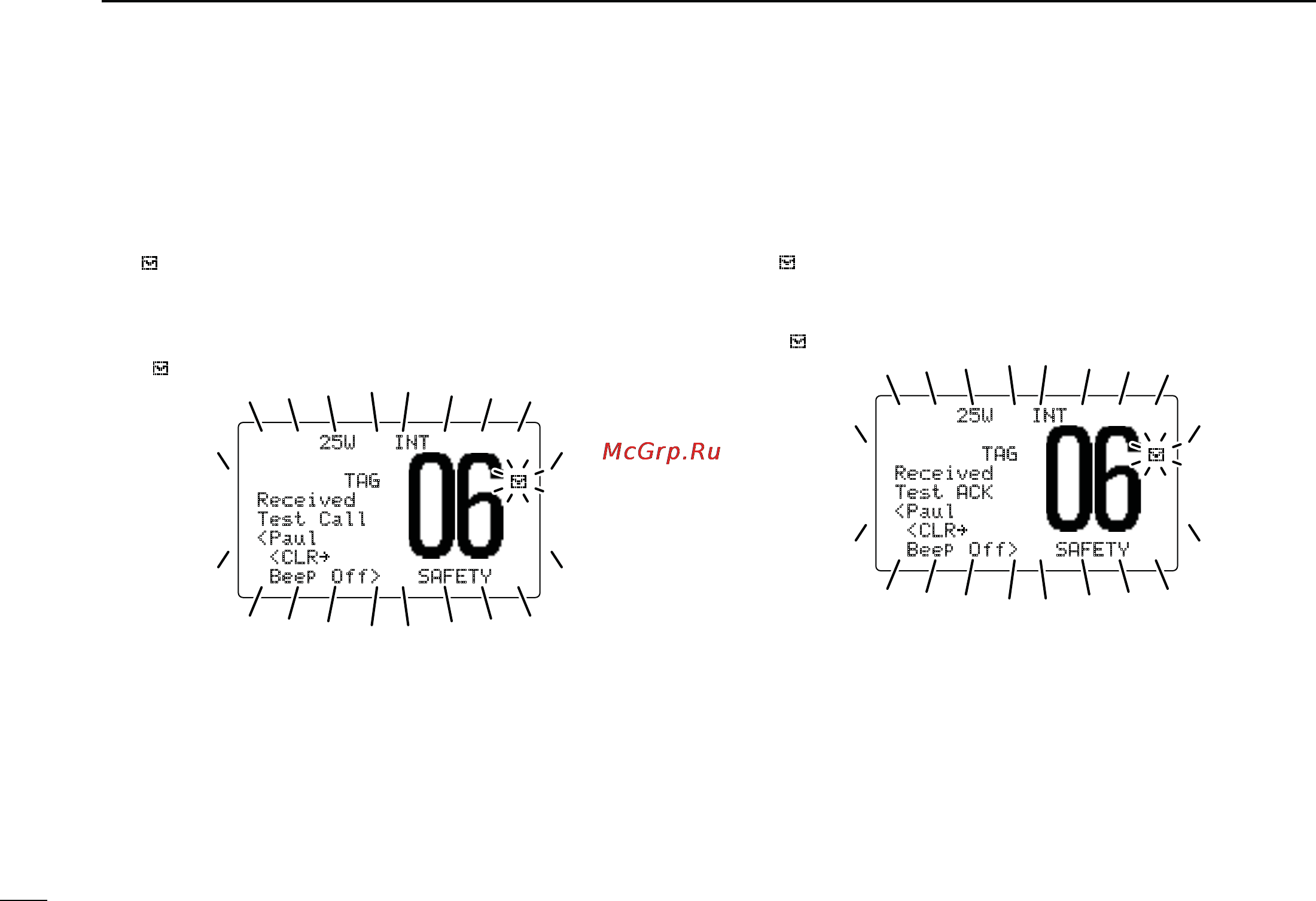

25W INT
TAG
Received
Test Call
<Paul
<CLR
Beep Off> SAFETY
D Receiving a Test Acknowledgement Call
When a Test Acknowledgement Call is received:
± The beeps sound.
± “Received Test ACK” appears on the display.
± “
” and the LCD backlight blink.
±
Push [CLR] to stop the beeps
and the backlight blinking
,
then push [CLR] again
to exit the screen.
s
“ ” continues to blink.
25W INT
TAG
Received
Test ACK
<Paul
<CLR
Beep Off> SAFETY
