Icom IC-M504A [20/80] Dualwatch tri watch
![Icom IC-M504A [20/80] Dualwatch tri watch](/views2/1074291/page20/bg14.png)
14
DUALWATCH/TRI-WATCH
5
N Description
Dualwatch monitors Channel 16 while you are receiving
on another channel; Tri-watch monitors Channel 16 and the
Call channel while receiving another channel. Dualwatch/Tri-
watch is convenient for monitoring Channel 16 when you are
operating on another channel.
N Operation
q Select Dualwatch or Tri-watch in Set mode. (p. 54)
w Rotate [DIAL] to select the desired operating channel.
e Hold down ;#(78s$5!,s5)#= for 1 second to start Du-
alwatch or Tri-watch.
shDUAL 16” appears during Dualwatch; “TRI 16” appears dur-
ing Tri-watch.
s!BEEPTONESOUNDSWHENASIGNALISRECEIVEDON#HANNEL
r To cancel Dualwatch/Tri-watch, push ;#(78s$5!,s5)#=
again.

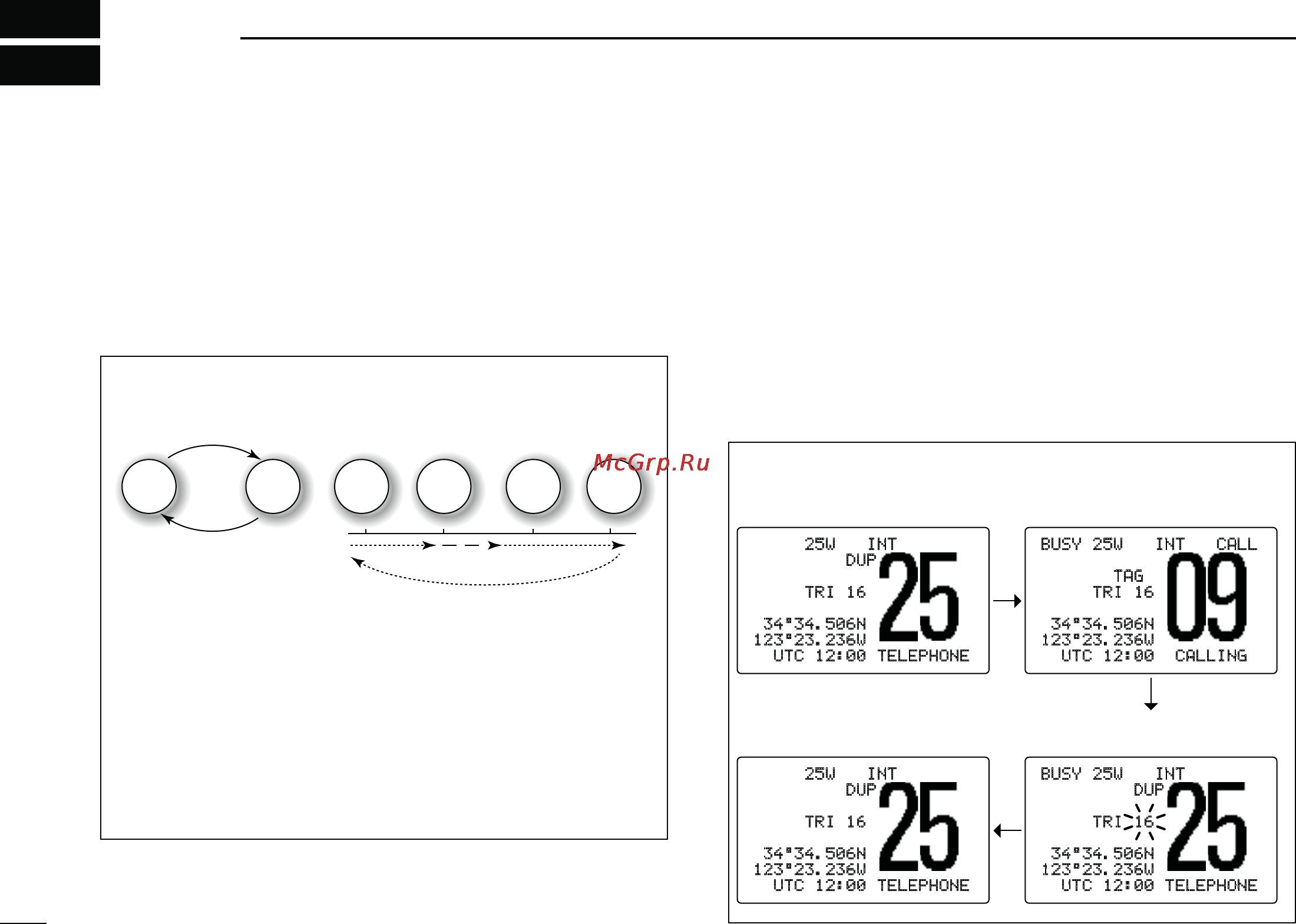

DUALWATCH/TRI-WATCH SIMULATION
Dualwatch
Tri-watch
Call channel
Ch 88
Ch 16
Ch 88
Ch 16
Ch 88
Ch 9
s)FASIGNALISRECEIVEDON#HANNEL$UALWATCH4RIWATCH
pauses on Channel 16 until the signal disappears.
s)F ASIGNALISRECEIVEDON THE#ALL CHANNELDURING4RI
watch, Tri-watch becomes Dualwatch until the signal dis-
appears.
s4OTRANSMITONTHESELECTEDCHANNELDURING$UALWATCH4RI
watch, hold down [PTT].
[Example]: Operating Tri-watch on INT Channel 25
25W INT
DUP
TRI 16
34°34.506N
123°23.236W
UTC 12:00 TELEPHONE
BUSY 25W INT CALL
TAG
TRI 16
34°34.506N
123°23.236W
UTC 12:00 CALLING
Tri-watch starts.
Signal is received on
Call channel.
BUSY 25W INT
DUP
TRI 16
34°34.506N
123°23.236W
UTC 12:00 TELEPHONE
Signal received on Channel
16 takes priority.
25W INT
DUP
TRI 16
34°34.506N
123°23.236W
UTC 12:00 TELEPHONE
Tri-watch resumes after the
signal disappears.
