Icom IC-M504A [16/80] Display backlight
![Icom IC-M504A [16/80] Display backlight](/views2/1074291/page16/bg10.png)
10
3
BASIC OPERATION
N Microphone Lock function

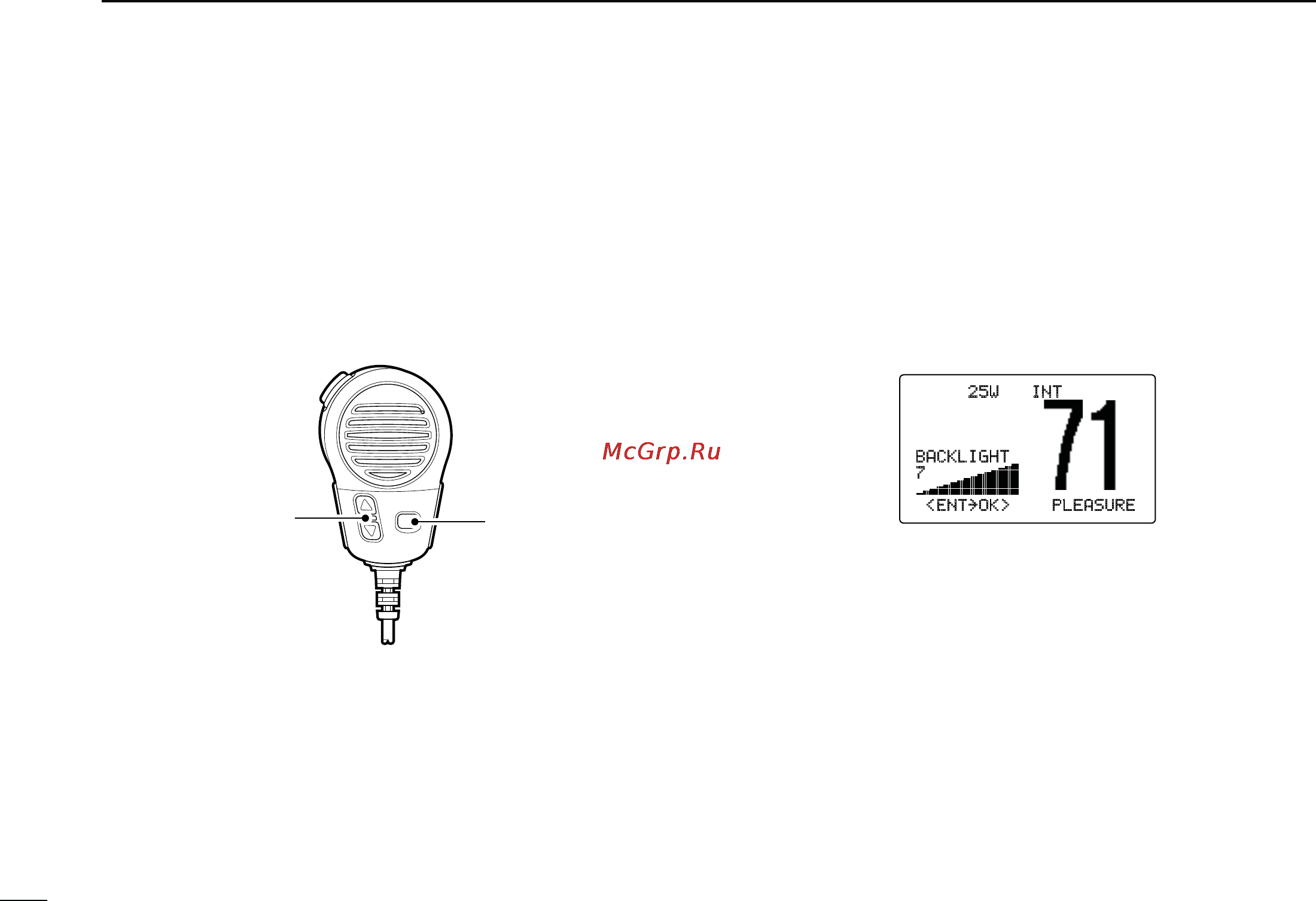

The Microphone Lock function electrically locks [Y]/[Z] and
[HI/LO] keys on the supplied microphone. This prevents ac-
cidental channel changes and function access.
± While holding down [HI/LO] on the microphone, turn ON
the power to turn the Microphone Lock function ON or
OFF.
[HI/LO]
[Y]/[Z]
N Display backlight
The function display and keys can be backlit for better visibil-
ity under low light conditions.
± While holding down [H/L], rotate [DIAL] to adjust the
brightness of the LCD and key backlight. Then, push
;$)!,s%.4%2=.
s4HEBACKLIGHTISADJUSTABLEINLEVELSAND/&&
25W INT
BACKLIGHT
7
<ENT˘OK> PLEASURE
