Icom IC-M504A [30/80] Dsc operation
![Icom IC-M504A [30/80] Dsc operation](/views2/1074291/page30/bg1e.png)
24
6
DSC OPERATION
N Transmitting DSC calls
D Transmitting an individual call (Continued)
About Manual Inputting:
Rotate [DIAL]
to input
the 9 digit individual ID, then push
;$)!,s%.4%2=
.
s0USH;s= to move the cursor forward, or ;#(78s$5!,s5
I/C] to move it backward.
s0USH[CLR] to cancel and return to the DSC Set up menu.
s4HEFIRSTDIGITISSPECIFIEDAS@FORA'ROUP)$
s4HEFIRSTTWODIGITSARE@FORANY#OASTSTATION)$

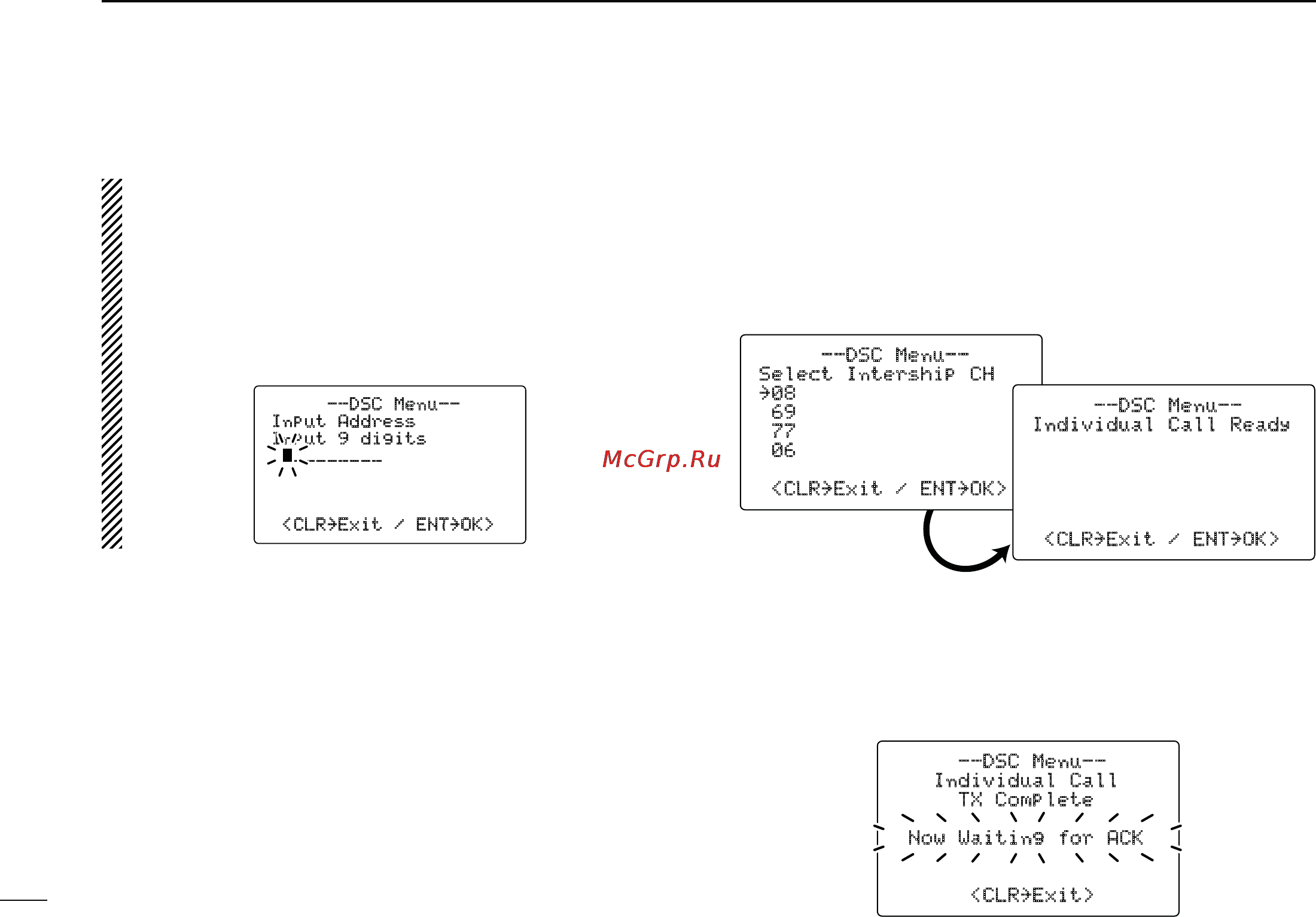

--DSC Menu--
Input Address
Input 9 digits
_________
<CLR
˘
Exit / ENT
˘
OK>
e Rotate [DIAL] to select a desired intership channel or
“Manual Input,” then push ;$)!,s%.4%2=.
s)NTERSHIPCHANNELSAREALREADYPRESETINTOTHETRANSCEIVERINTHE
recommended order.
s!FTERPUSHING;$)!,s%.4%2=, “Individual Call Ready”
is displayed.
--DSC Menu--
Select Intership CH
˘08
69
77
06
<CLR
˘
Exit / ENT
˘
OK>
--DSC Menu--
Individual Call Ready
<CLR
˘
Exit / ENT
˘
OK>
r Push ;$)!,s%.4%2= to transmit the Individual Call.
s%MERGENCYCHANNEL#HANNELISAUTOMATICALLYSELECTED
s If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
t Standby on Channel 70 until an acknowledgement is re-
ceived.
--DSC Menu--
Individual Call
TX Complete
Now Waiting for ACK
<CLR
˘
Exit>
