43
6
DSC OPERATION

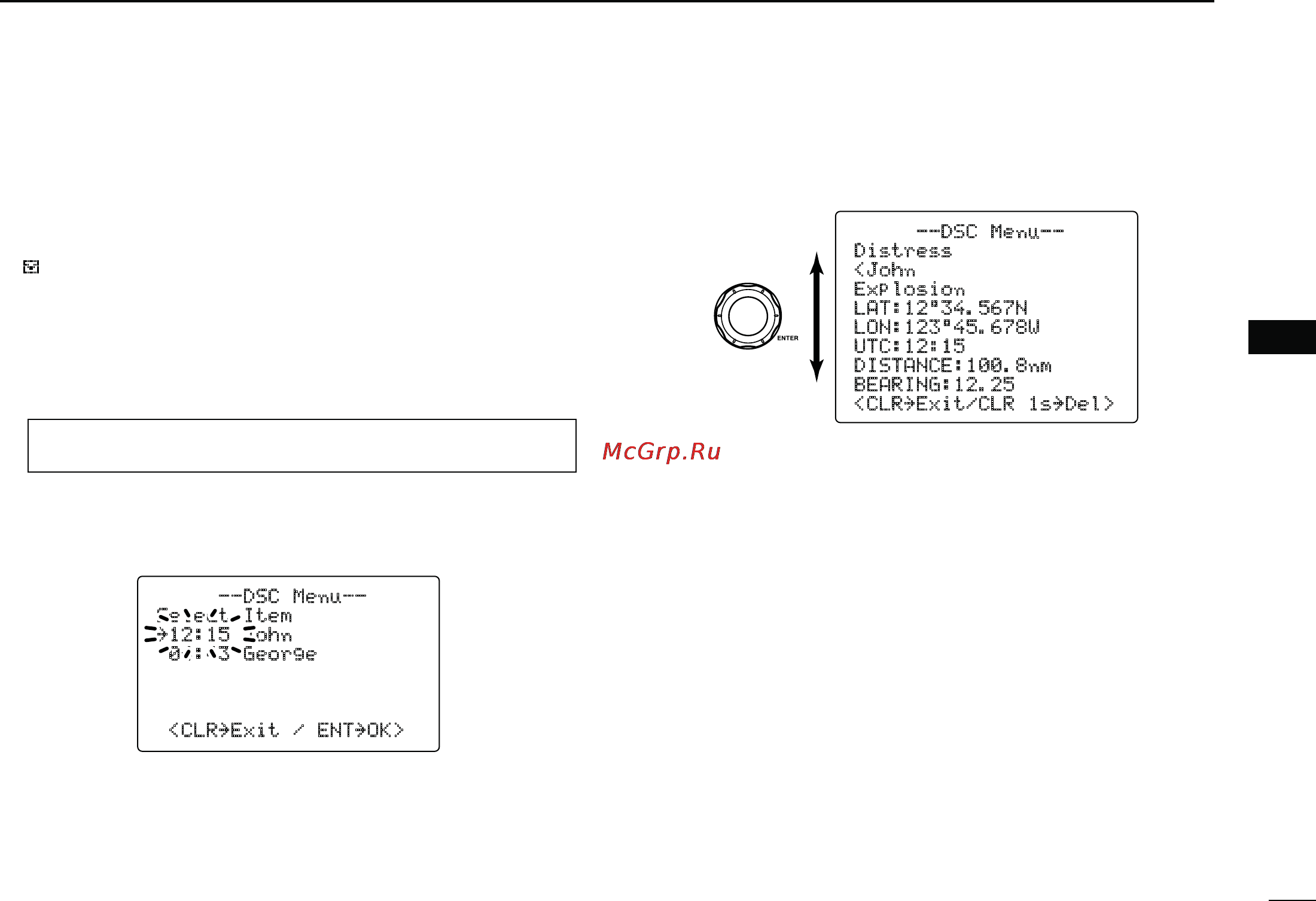

N Received messages
The transceiver automatically stores up to 20 distress mes-
sages and 20 other messages. The messages can be used
as a supplement to your logbook.
sh ” blinks when there is an unread message.
D Distress message
q Enter “Distress” in the DSC menu.
s4HEMESSAGESARESTOREDINh$ISTRESSvIFITSFORMATSPECIlERIS
‘Distress.’
eDSC Menuf ¶ eReceived Call Logf ¶ eDistressf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to select the desired item, then push
;$)!,s%.4%2=.
s"LINKINGITEMSMESSAGEHASNOTBEENREAD
--DSC Menu--
Select Item
˘12:15 John
04:43 George
<CLR
˘
Exit / ENT
˘
OK>
e Rotate [DIAL] to scroll the message contents.
--DSC Menu--
Distress
<John
Explosion
LAT:12
°
34.567N
LON:123
°
45.678W
UTC:12:15
DISTANCE:100.8nm
BEARING:12.25
<CLR
˘
Exit/CLR 1s
˘
Del>
Rotate
r Push [CLR] to exit, or hold down [CLR] for 1 second to de-
lete the displayed message and return to the DSC menu.
t Push [CLR], or rotate [DIAL] to select “Exit” then push
;$)!,s%.4%2=, to return to the normal operating mode.
