37
6
DSC OPERATION

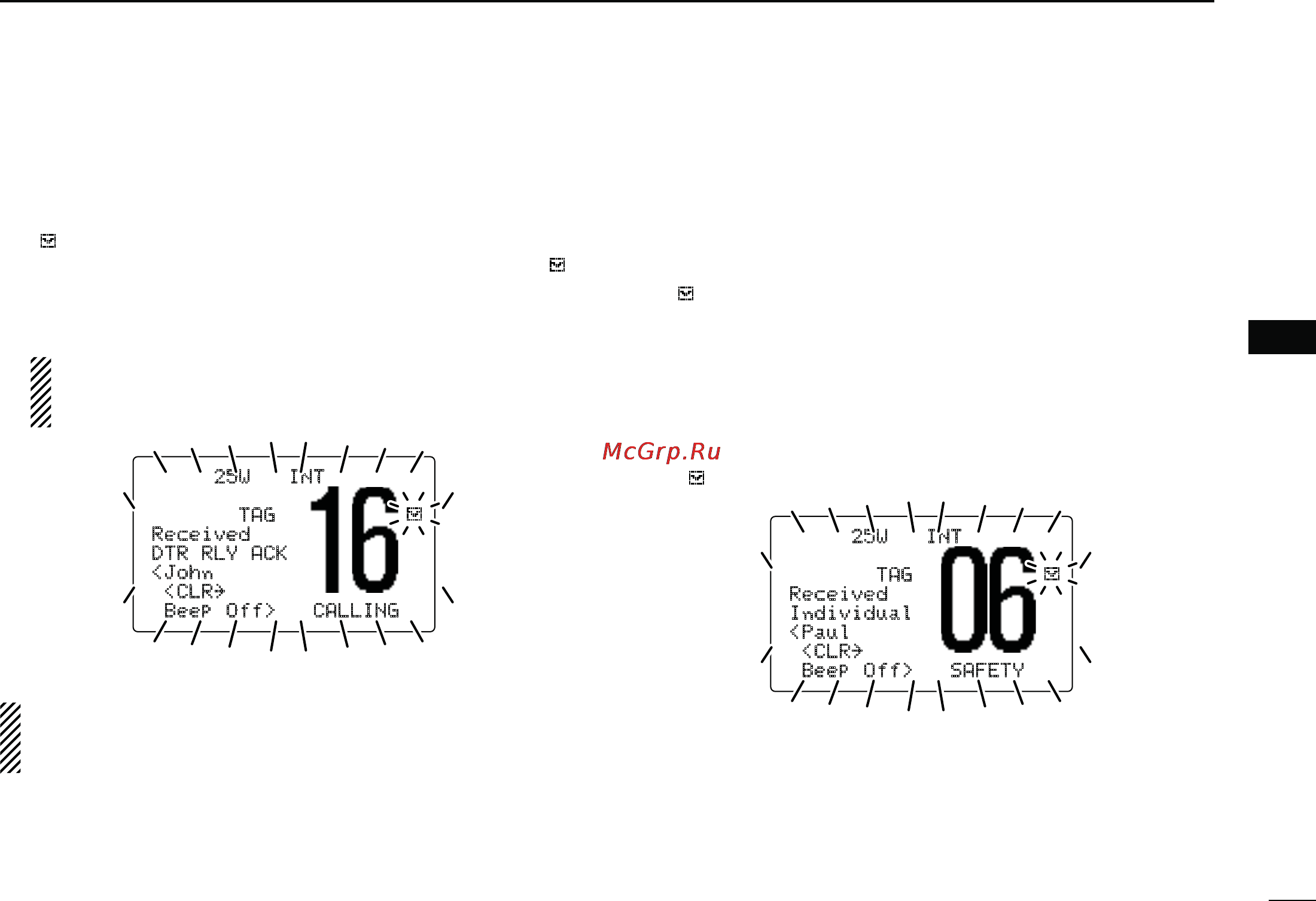

D Receiving a Distress Relay Acknowledgement
When a Distress Relay Acknowledgement is received:
± The emergency alarm sounds.
± “
” and the LCD backlight blink.
s0USH[CLR] to stop the beeps and the backlight blinking. (“ ”
continues to blink.)
± “DTR RLY ACK” appears on the display, then Channel
16 is automatically selected.
This action can be changed, depending on the combi-
nation of the Auto Switch function and Auto Tune timer
settings. See pages 46 and 47 for more details.
25W INT
TAG
Received
DTR RLY ACK
<John
<CLR
˘
Beep Off> CALLING
NOTE: The alarm does not sound within 1 hour from re-
ceiving the distress relay or distress relay acknowledge-
ment call if receiving the duplicate call.
D Receiving an Individual Call
When an Individual Call is received:
± The emergency alarm or beeps sound depending on the
received category.
± “Received Individual” appears on the display.
± “
” and the LCD backlight blink.
± Push [CLR] to stop the beeps and the backlight blinking,
then push ;$)!,s%.4%2= to reply to the call and select
the channel specified by the calling station for voice com-
munication (depending on your situation; see page 25 for
details of the Individual Acknowledgement procedure.);
push [CLR] to ignore the call.
s
“ ” continues to blink.
25W INT
TAG
Received
Individual
<Paul
<CLR
˘
Beep Off> SAFETY
