Icom IC-M504A [44/80] D receiving a group call
![Icom IC-M504A [44/80] D receiving a group call](/views2/1074291/page44/bg2c.png)
38
6
DSC OPERATION
N Receiving DSC calls (Continued)
D Receiving a Group Call
When a Group Call is received:
± The emergency alarm or beeps sound depending on the
received category.

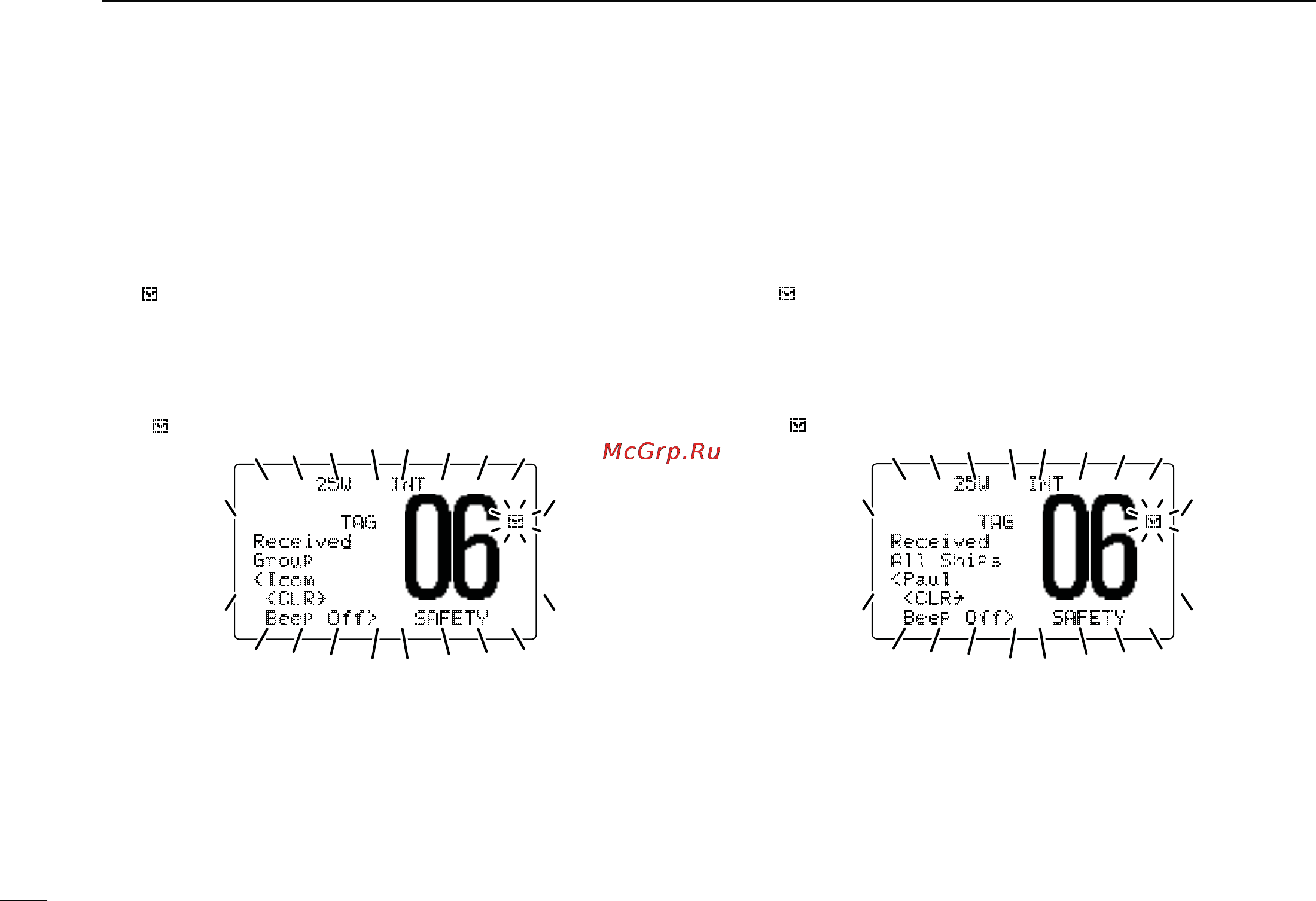

± “Received Group” appears on the display.
± “
” and the LCD backlight blink.
± Push [CLR] to stop the beeps and the backlight blinking,
then push ;$)!,s%.4%2= to monitor the specified channel
for an announcement from the calling vessel; push [CLR]
to ignore the call.
s
“ ” continues to blink.
25W INT
TAG
Received
Group
<Icom
<CLR
˘
Beep Off> SAFETY
D Receiving an All Ships Call
When an All Ships Call is received:
± The emergency alarm sounds when the category is ‘Dis-
tress’ or ‘Urgency’; 2 beeps sound for other categories.
± “Received All Ships” appears on the display.
± “
” and the LCD backlight blink.
± Push [CLR] to stop the beeps and the backlight blinking,
then push ;$)!,s%.4%2= to monitor channel 16 for an an-
nouncement from the calling vessel, push [CLR] to ignore
the call.
s
“ ” continues to blink.
25W INT
TAG
Received
All Ships
<Paul
<CLR
˘
Beep Off> SAFETY
