Icom IC-M504A [8/80] Panel description
![Icom IC-M504A [8/80] Panel description](/views2/1074291/page8/bg8.png)
2
PANEL DESCRIPTION
2

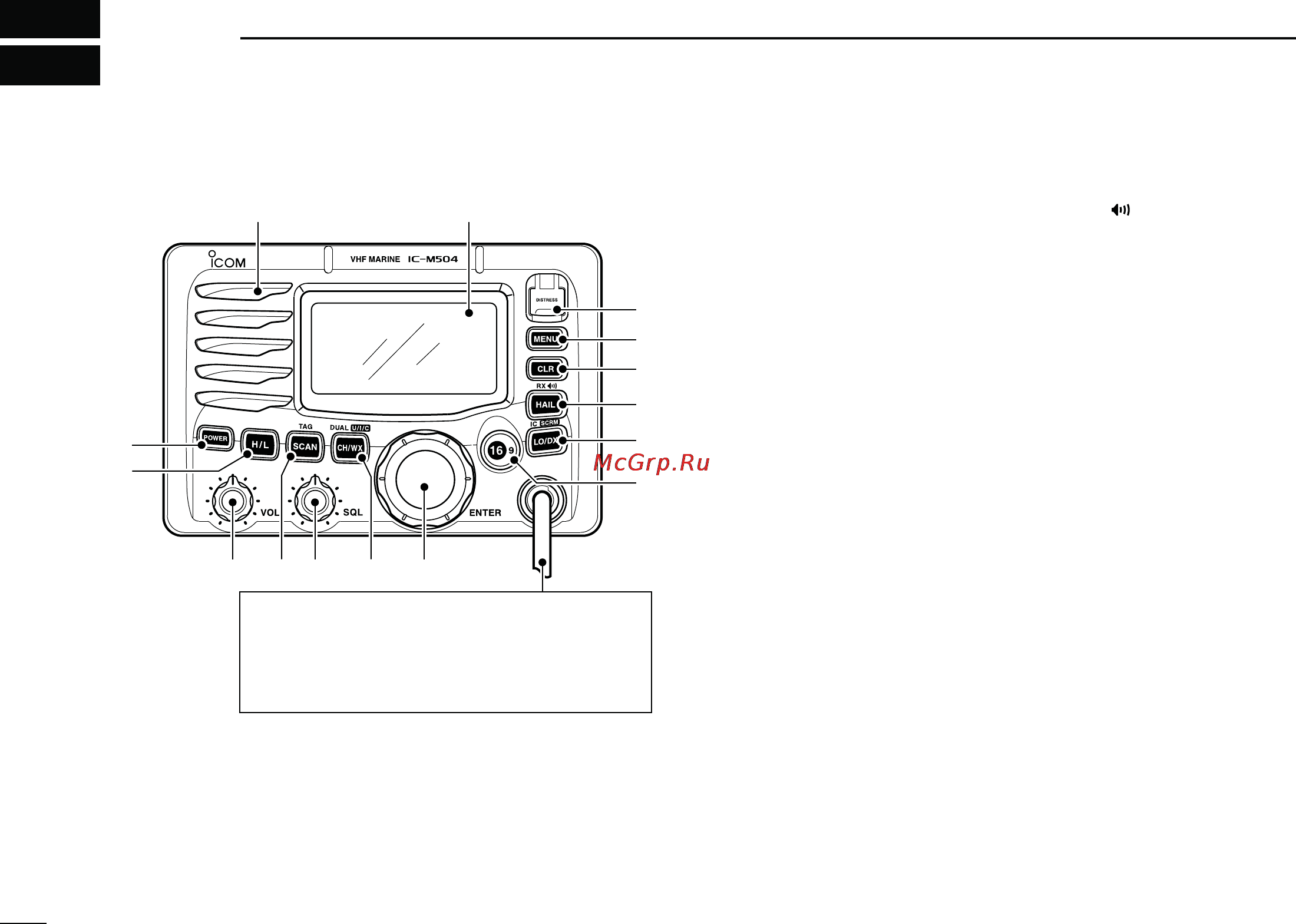

N Front panel
Function display (p. 4)Speaker
q
e
r
t
y
w
uio!0!1
!2
!3
The microphone may be connected here, or the
microphone and its connection kit for the rear
panel are separately included, depending on the
transceiver version.
#for details.
q DISTRESS KEY [DISTRESS] (pp. 20, 22)
Hold down for 5 seconds to transmit a Distress call.
w DSC MENU KEY [MENU]
Push to toggle the DSC menu appear or disappear. (p. 15)
e CLEAR KEY [CLR]
(pp. 9, 55)
Push to cancel the entered function, exit Set mode.
r(!),2830%!+%2+%9;(!),s28
]
± Push to turn the hailer mode ON or OFF. (p. 50)
± Hold down for 1 second to turn the RX Speaker mode
ON or OFF. (p. 49)
± While holding down [H/L], push to turn the Automatic
Foghorn function ON. (p. 51)
t!44%.5!4/2).4%2#/-+%9;,/$8s)#s3#2-=
± Push to turn the Attenuator function ON or OFF. (p. 8)
shLOC” appears when the Attenuator function is turned ON.
± Hold down for 1 second to activate an optional Inter-
com function. (p. 48)
± Hold down to call the optional Command microphone
while in Intercom mode. (p. 48)
± While holding down [H/L], push to turn the Voice
Scrambler function ON or OFF. (p. 11)
y#(!..%,#!,,#(!..%,+%9;s=
± Push to select Channel 16. (p. 6)
±
Hold down for 1 second to select Call channel. (p. 6)
shCALL” appears when Call channel is selected.
±
Hold down for 3 seconds to enter Call channel program-
ming mode when Call channel is selected. (p. 9)
± While holding down [H/L], push to enter the channel
comment programming mode. (p. 9)
± Push to move the cursor forward while in the channel
comment programming mode. (p. 9)
± While turning power ON, push to enter Set mode.
(p. 53)
