N Distress call
D Regular call (Continued)
e Edit your position (latitude and longitude) data by rotating
[DIAL].
s0USH;s= to move the cursor forward, or ;#(78s$5!,s5
I/C] to move it backward.
s2OTATE[DIAL] to edit N; North latitude or S; South latitude when
the cursor is on the ‘N’ or ‘S’ position.
s2OTATE[DIAL] to edit W; West longitude or E; East longitude
when the cursor is on the ‘W’ or ‘E’ position.
s(OLDDOWN[CLR] for 1 second to clear the latitude/
longitude
data.
s0USH[CLR] to cancel and return to the DSC menu.

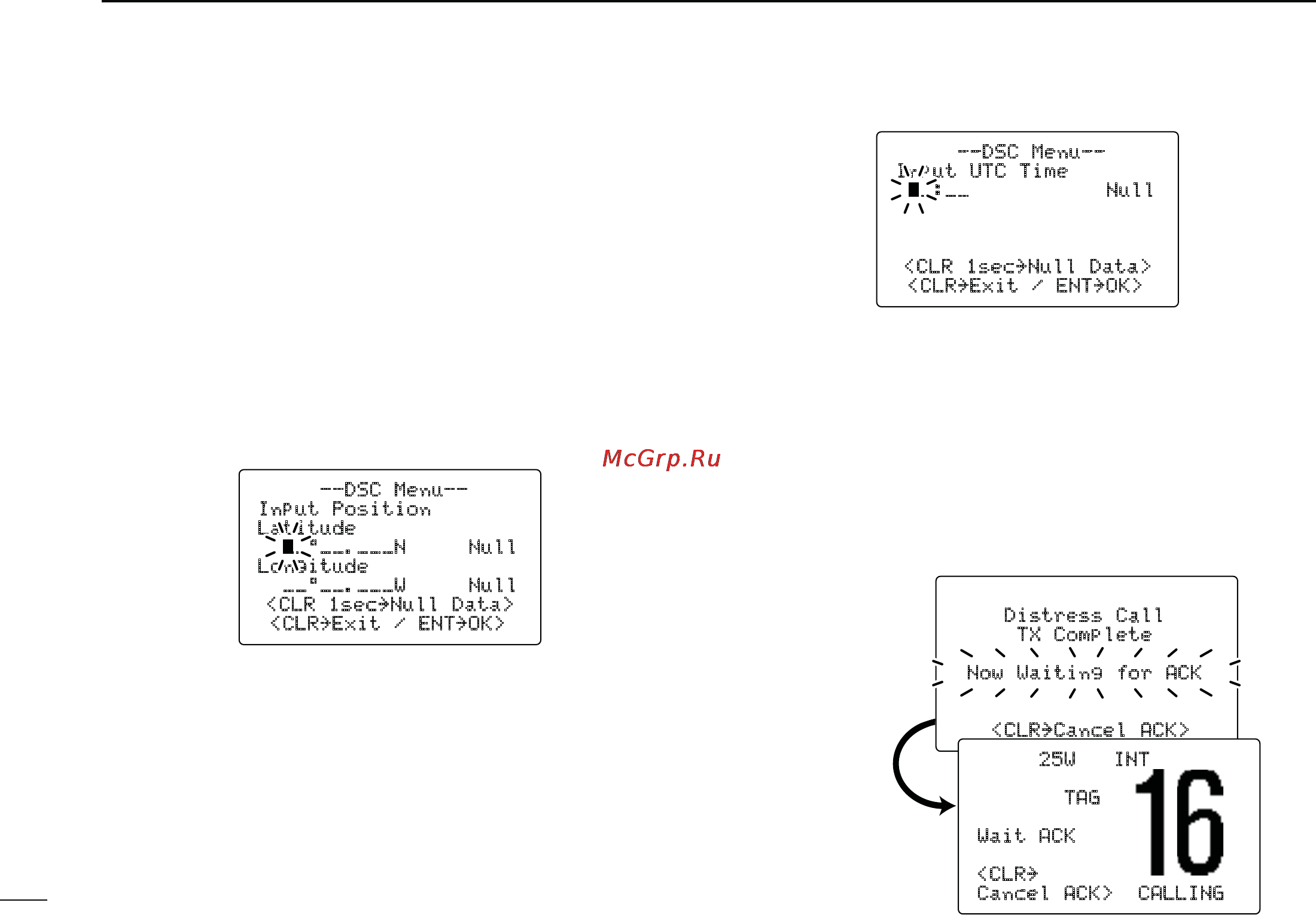

--DSC Menu--
Input Position
Latitude
__°__.___N Null
Longitude
__°__.___W Null
<CLR 1sec˘Null Data>
<CLR˘Exit / ENT˘OK>
r After editing the position data, push ;$)!,s%.4%2= to pro-
gram. Edit the current UTC time by rotating [DIAL], then
push ;$)!,s%.4%2=.
s0USH;s= to move the cursor forward, or ;#(78s$5!,s5
I/C] to move it backward.
s(OLDDOWN[CLR] for 1 second to clear the UTC time data.
s0USH[CLR] to cancel and return to the DSC menu.
--DSC Menu--
Input UTC Time
__:__ Null
<CLR 1sec˘Null Data>
<CLR˘Exit / ENT˘OK>
t Hold down [DISTRESS] for 5 seconds to transmit the Dis-
tress call.
s7HILEHOLDINGDOWN[DISTRESS], the key backlighting blinks.
s4HESELECTEDNATUREOFTHEDISTRESSISSTOREDFORMINUTES
y After transmitting the Distress call, the transceiver waits for
an acknowledgment call.
s4HE$ISTRESSCALLISAUTOMATICALLYTRANSMITTEDEVERYTOMIN-
utes.
s!FTERSECONDSTHETRANSCEIVERISAUTOMATICALLYSETTO#HANNEL
16.
Distress Call
TX Complete
Now Waiting for ACK
<CLR˘Cancel ACK>
After 2 seconds
25W INT
TAG
Wait ACK
<CLR
˘
Cancel ACK> CALLING
22
6
DSC OPERATION
