Icom IC-M504A [59/80] Set mode

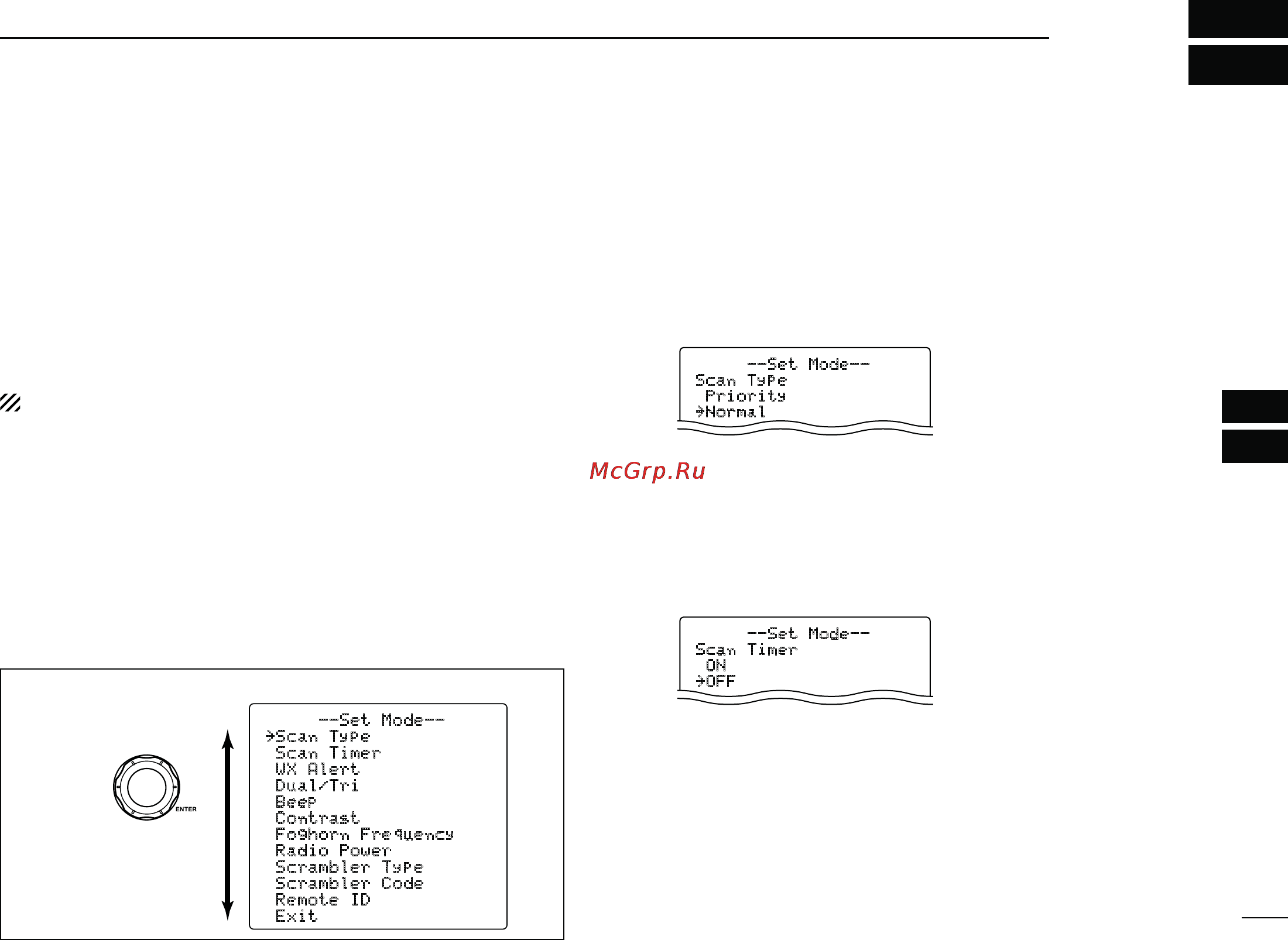

![Icom IC-M504A [59/80] Set mode](/views2/1074291/page59/bg3b.png)
53
8
SET MODE
N Set mode programming
Set mode is used to change the settings of the transceiver’s
functions: Scan type, Scan resume timer, Weather alert, Dual/
Tri-watch, Beep tone, LCD contrast, Automatic foghorn fre-
quency, Radio power*
1
, Scrambler type*
2
, Scrambler code*
2
and Remote ID.
*
1
Appears only when the optional Command microphone is connected.
*
2
Appears only when the optional scrambler unit is installed.
Selectable functions may differ depending on dealer setting.
q Turn the power OFF, and while holding down ;s=, push
[POWER] to enter the Set mode.
w After the display appears, release ;s=.
e Rotate [DIAL] to select the desired item, then push
;$)!,s%.4%2=.
r Rotate [DIAL] to select the desired setting of the item, then
push ;$)!,s%.4%2=.
t Push [CLR], or rotate [DIAL] to select “Exit,” then push
;$)!,s%.4%2= to exit the Set mode.
Rotate
--Set Mode--
˘Scan Type
Scan Timer
WX Alert
Dual/Tri
Beep
Contrast
Foghorn Frequency
Radio Power
Scrambler Type
Scrambler Code
Remote ID
Exit
s3%4-/$%#/.3425#4)/.
N Set mode items
D Scan type
The transceiver has two scan types: Normal scan and Priority
scan. Normal scan searches all TAG channels in the selected
channel group. Priority scan sequentially searches all TAG
channels while monitoring Channel 16.
--Set Mode--
Scan Type
Priority
˘Normal
(Default: Normal)
D Scan resume timer
The scan resume timer can be selected as a pause (OFF)
or timer scan (ON). When OFF is selected, the scan pauses
until the signal disappears. When ON is selected, the scan
pauses 5 seconds and resumes, even if a signal has been
received on any channel other than Channel 16.
--Set Mode--
Scan Timer
ON
˘OFF
(Default: OFF)
