44
6
DSC OPERATION
N Received messages (Continued)
D Other messages
q Enter “Other” in the DSC menu.
s4HEMESSAGESARESTOREDINh/THERvIFITSFORMATSPECIFIERIS
other than ‘Distress.’
eDSC Menuf ¶ e
Received Call Log
f ¶ eOtherf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to select the desired message, then push
;$)!,s%.4%2=.
s"LINKINGMESSAGESHAVENOTBEENREAD

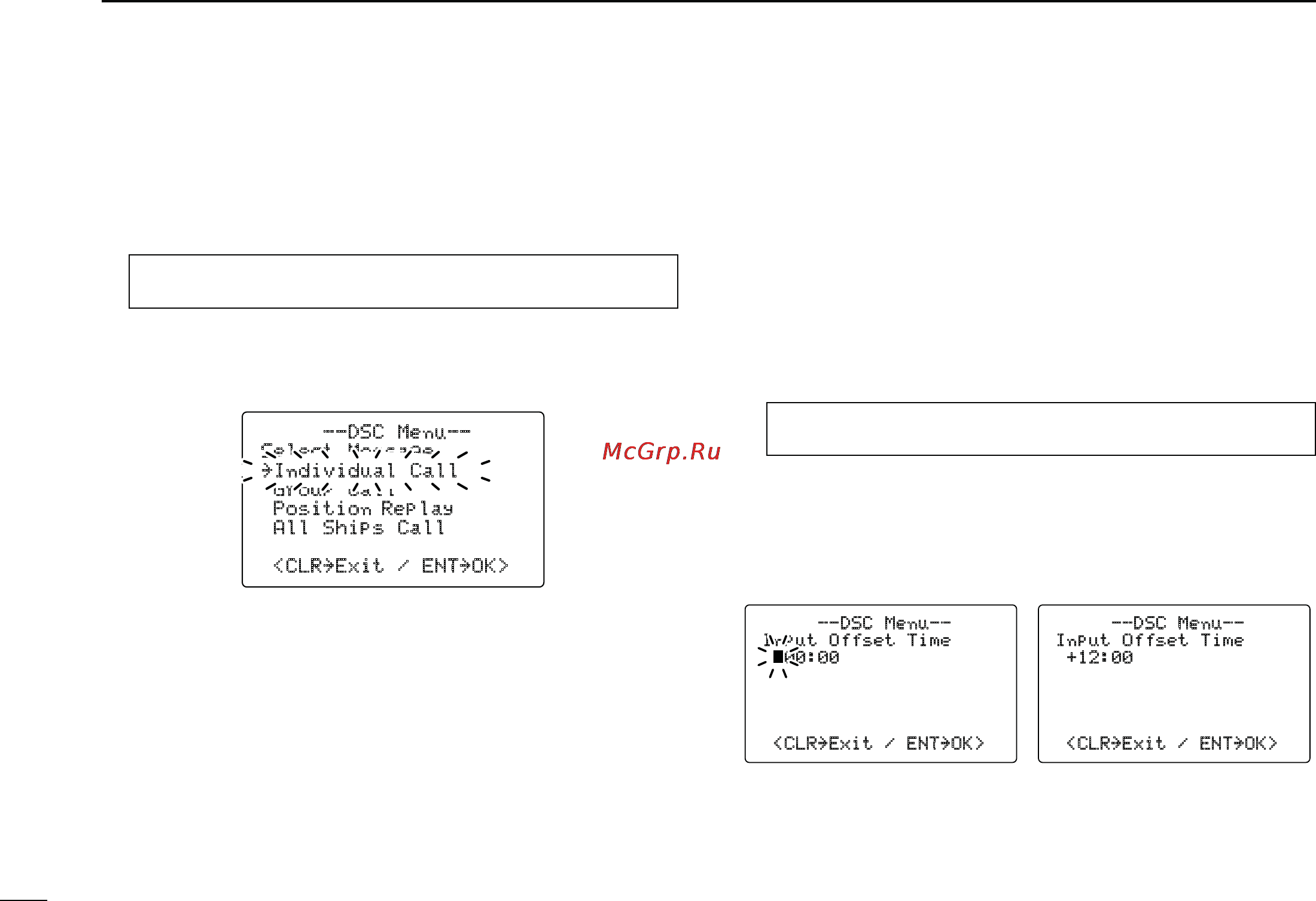

--DSC Menu--
Select Message
-Individual Call
Group Call
Position Replay
All Ships Call
<CLR
˘
Exit / ENT
˘
OK>
˘Individual Call
e Rotate [DIAL] to scroll the message contents.
s4HESTOREDMESSAGEHASVARIOUSINFORMATIONDEPENDINGONTHE
DSC call type.
r Push [CLR] to exit, or hold down [CLR] for 1 second to de-
lete the displayed message and return to the DSC menu.
t Push [CLR], or rotate [DIAL] to select “Exit” then push
;$)!,s%.4%2=, to return to the normal operating mode.
N DSC Set up menu
D Add Individual ID/Group ID (See pages 16, 17)
D Delete Individual ID/Group ID (See pages 16, 17)
D Offset time
This item sets the offset time from the UTC (Universal Time
Coordinated) time.
q Enter “
Offset Time
” in the DSC Set up menu.
eDSC Menuf ¶ eSet upf ¶ e
Offset Time
f
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to edit the offset time from the UTC (Univer-
sal Time Coordinated) time.
s0USH;s= to move the cursor forward, or ;#(78s$5!,s5
I/C] to move it backward.
s0USH[CLR] to cancel and return to the DSC Set up menu.
--DSC Menu--
Input Offset Time
00:00
<CLR˘Exit / ENT˘OK>
No offset time (default)
--DSC Menu--
Input Offset Time
+12:00
<CLR˘Exit / ENT˘OK>
+12 hours
e After editing, push ;$)!,s%.4%2= to program.
r Push [CLR], or rotate [DIAL] to select “Exit” then push
;$)!,s%.4%2=, to return to the DSC menu.
s2EPEATSTEPr again to return to the normal operating mode.
