DSC OPERATION
About Manual Inputting:
Rotate [DIAL]
to input
the 8 digit group ID, then push
;$)!,s%.4%2=
.
s0USH;s= to move the cursor forward, or ;#(78s$5!,s5
I/C] to move it backward.
s0USH[CLR] to cancel and return to the DSC Set up menu.
s4HEFIRSTDIGITISSPECIFIEDAS@FORA'ROUP)$
s4HEFIRSTTWODIGITSARE@FORANY#OASTSTATION)$

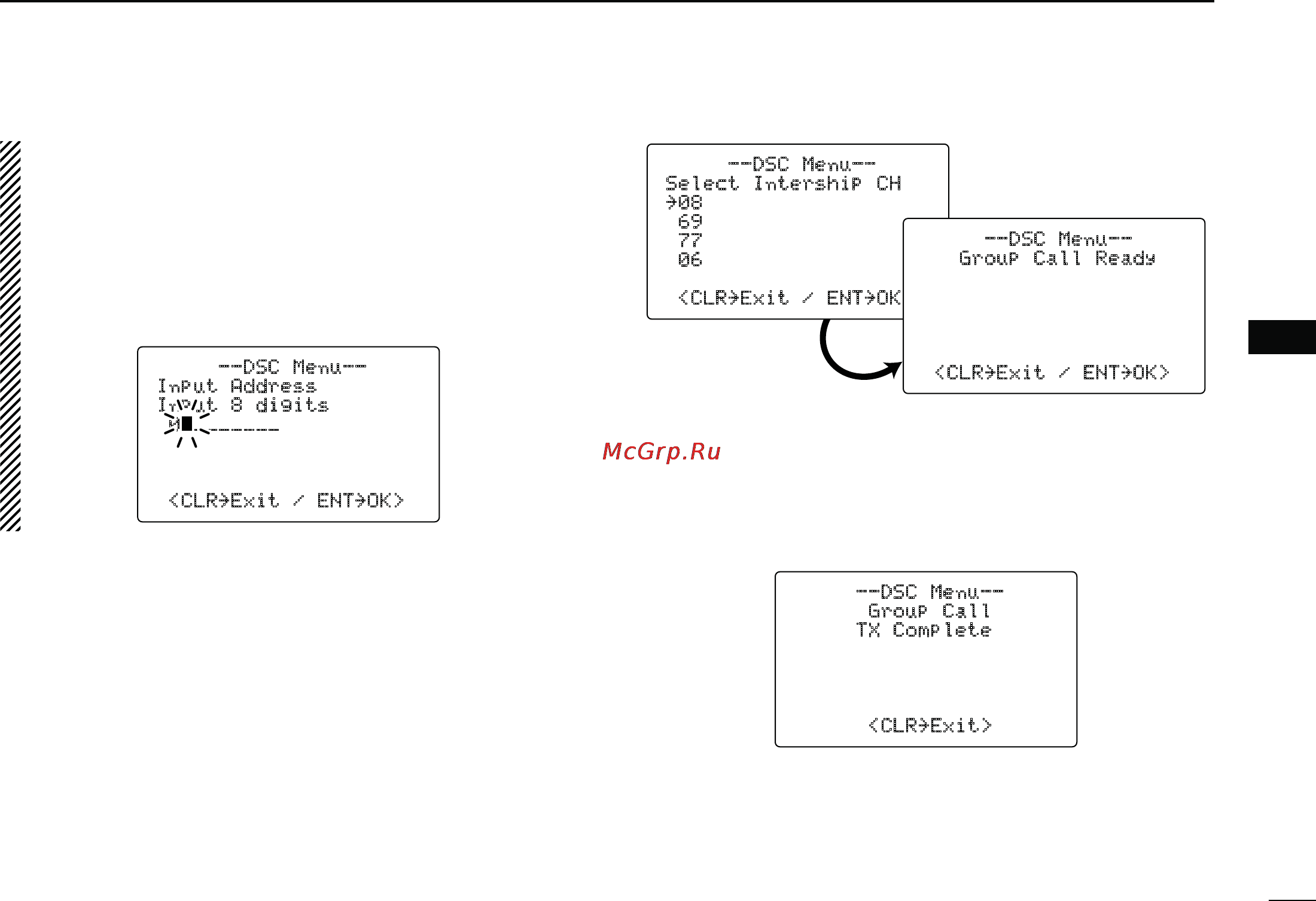

--DSC Menu--
Input Address
Input 8 digits
0________
<CLR
˘
Exit / ENT
˘
OK>
e Rotate [DIAL] to select a desired intership channel, then
push ;$)!,s%.4%2=.
s)NTERSHIPCHANNELSAREALREADYPRESETINTOTHETRANSCEIVERINREC-
ommended order.
s!FTERPUSHING;$)!,s%.4%2=, “Group Call Ready” is dis-
played.
--DSC Menu--
Select Intership CH
˘08
69
77
06
<CLR
˘
Exit / ENT
˘
OK>
--DSC Menu--
Group Call Ready
<CLR
˘
Exit / ENT
˘
OK>
r Push ;$)!,s%.4%2= to transmit the Group Call.
s%MERGENCYCHANNEL#HANNELISAUTOMATICALLYSELECTED
s If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
t After the Group Call has been transmitted, the following
message is displayed.
--DSC Menu--
Group Call
TX Complete
<CLR
˘
Exit>
y Push [CLR] to exit, and the transceiver automatically se-
lects the intership channel specified in step e.
s%VENIF[CLR] hasn’t been pushed, the transceiver automatically
selects the specified intership channel in step e after 2 second
of inactivity.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
