31
6
DSC OPERATION
D Transmitting a Polling Request Call
Transmit a Polling Request Call when you want to know a
specific vessel is in the communication area, or not.
q Enter “Polling Request” in the DSC menu.
eDSC Menuf ¶ ePolling Requestf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL] to select the desired pre-programmed
individual address, or “Manual Input,” then push
;$)!,s%.4%2=.
s4HE)$CODEFORTHE)NDIVIDUALCALLCANBESETlRSTP
sWhen “Manual Input” is selected, set the 9 digit MMSI ID
code for the individual you wish to call with [DIAL]. (See ‘About
Manual Inputting’ as described on page 24.)
s!FTERPUSHING;$)!,s%.4%2=, “Polling Request Ready”
is displayed.

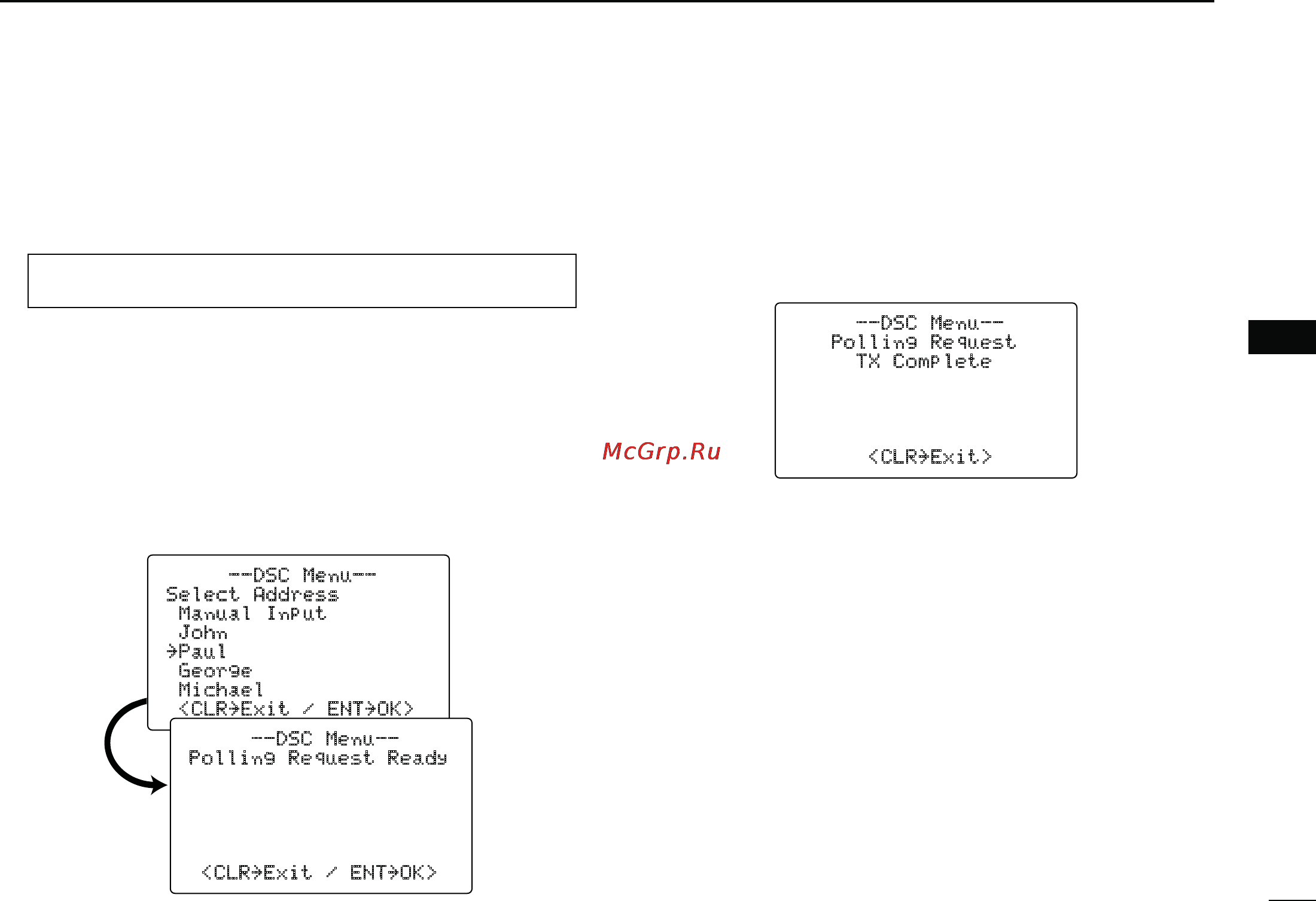

--DSC Menu--
Select Address
Manual Input
John
˘Paul
George
Michael
<CLR
˘
Exit / ENT
˘
OK>
--DSC Menu--
Polling Request Ready
<CLR
˘
Exit / ENT
˘
OK>
e Push ;$)!,s%.4%2= to transmit the Polling Request Call.
s%MERGENCYCHANNEL#HANNELISAUTOMATICALLYSELECTED
s If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
r After the Polling Request Call has been transmitted, the
following message is displayed.
--DSC Menu--
Polling Request
TX Complete
<CLR
˘
Exit>
t Push [CLR] to return to the previous screen before you
entered the DSC menu.
s%VENIF[CLR] hasn’t been pushed, the display automatically re-
turns to the previous screen after 2 seconds of inactivity.
