45
6
DSC OPERATION

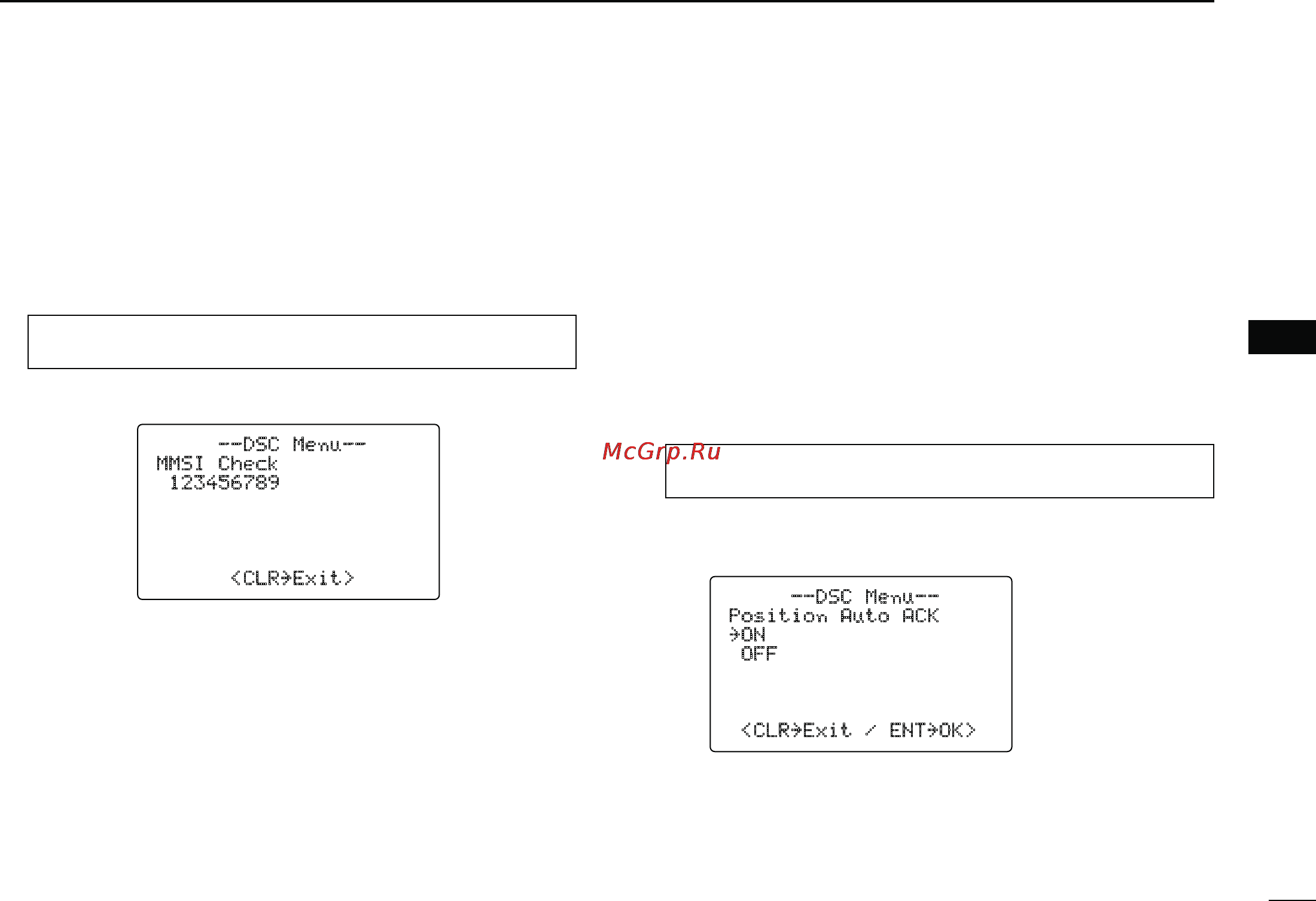

D MMSI code check
The programmed 9 digit MMSI (DSC self ID) code can be
checked.
q Enter “
MMSI Check
” in the DSC Set up menu.
eDSC Menuf ¶ eSet upf ¶ eMMSI Checkf
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Check the 9 digit MMSI (DSC self ID) code.
--DSC Menu--
MMSI Check
123456789
<CLR
˘
Exit>
e Push [CLR] to return to the DSC Set up menu.
r Push [CLR], or rotate [DIAL] to select “Exit” then push
;$)!,s%.4%2=, to return to the DSC menu.
s2EPEATSTEPr again to return to the normal operating mode.
D Automatic Acknowledgement
This item sets the Automatic Acknowledgement function to
ON or OFF.
When a Position Request, Position Report, Polling Request
or Test Call is received, the transceiver automatically trans-
mits a Position Reply, Position Report Reply*, Polling Reply
or Test Acknowledgement Call, respectively.
*Only when the received Position Report call requires a reply.
q
Enter “Position Auto ACK” in the DSC Set up menu.
eDSC Menuf ¶ eSet upf ¶ e
Position Auto ACK
f
(Push [MENU])
(Rotate [DIAL], then push ;$)!,s%.4%2=.)
w Rotate [DIAL]
to turn the
Automatic Acknowledgement
function ON or OFF
.
--DSC Menu--
Position Auto ACK
˘ON
OFF
<CLR˘Exit / ENT˘OK>
(Default: ON)
e Push ;$)!,s%.4%2= to set and return to the DSC Set up
menu.
s0USH[CLR] to cancel and return to the DSC Set up menu.
r Push [CLR], or rotate [DIAL] to select “Exit” then push
;$)!,s%.4%2=, to return to the DSC menu.
s2EPEATSTEPr again to return to the normal operating mode.
