ESiEN02–01A Switch Box Layout
Part 1 – System Outline 1–103
3
1
4
5
5.9 RP100B7V1 and RYP100B7V1

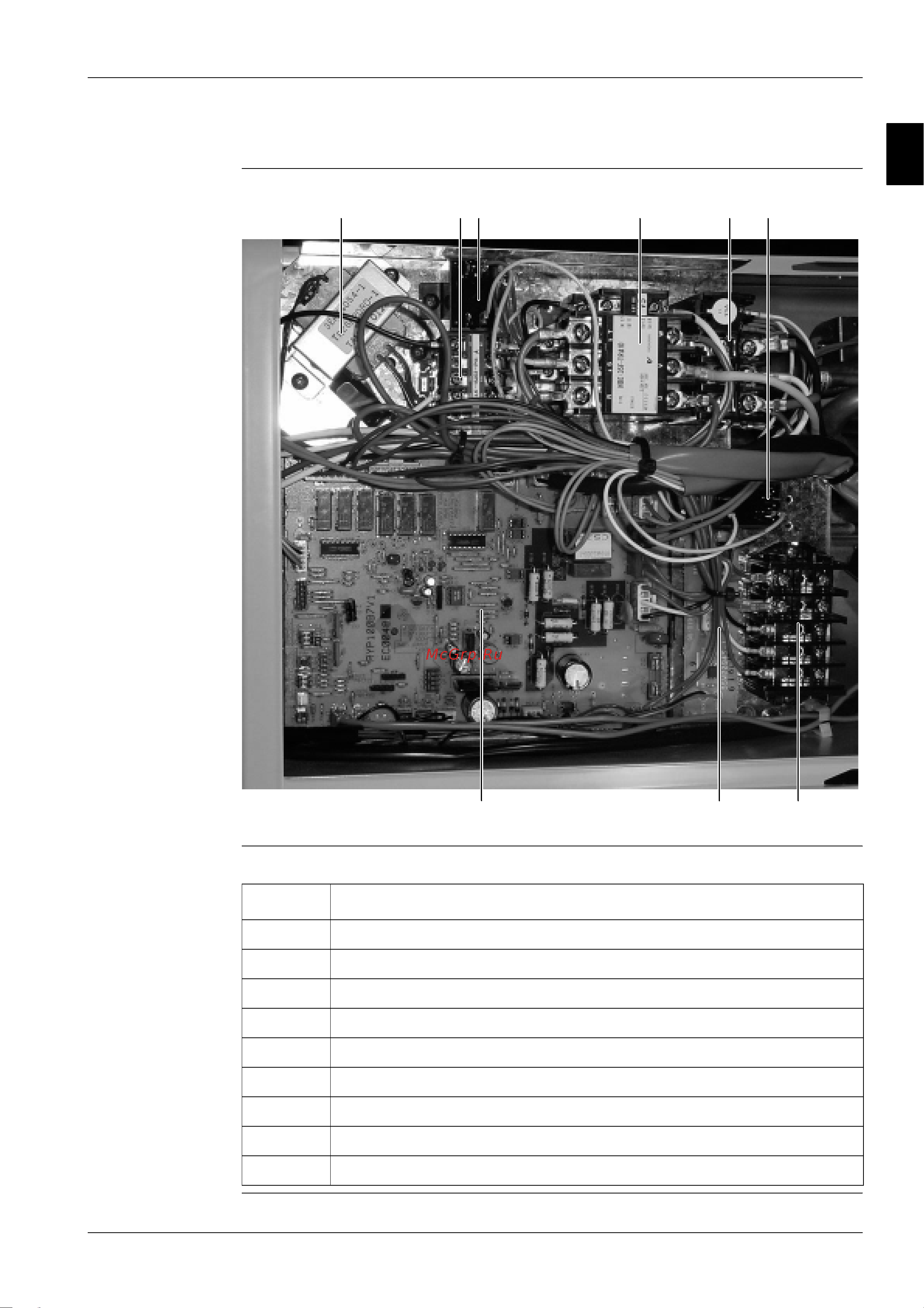

Switch box The illustration below shows the switch box layout.
Components The table below contains the components of the switch box.
PCB1
F1CC1R
PCB2
T1R K1S
X1M
K1M C2R
Symbol Component
T1R Transformer
K1S Starting contactor
C1R Fan motor capacitor 1
C2R Fan motor capacitor 2
K1M Magnetic contactor
F1C Overcurrent relay
X1M Terminal strip
PCB1 Printed circuit board
PCB2 Printed circuit board (interlock PCB)
