Functional Diagrams ESiEN02–01A
1–82 Part 1 – System Outline
3
11
4
5
4.12 RP200B7W1 and RP250B7W1: Double Twin

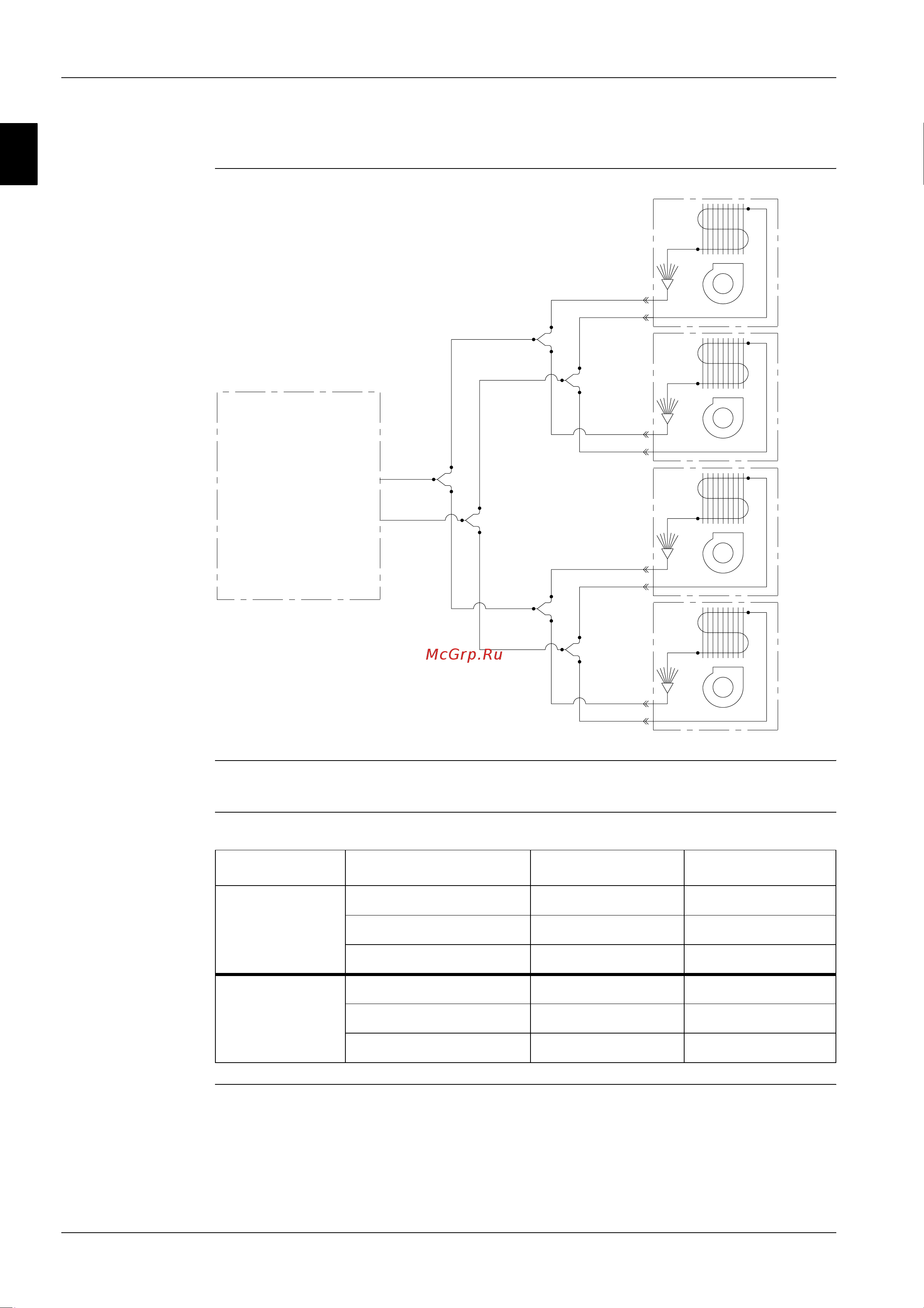

Functional diagram The illustration below shows the functional diagram of the refrigeration circuit.
Components For a description of the components, see ’Piping Components’ on page 1–93.
Pipe connection
diameters
The table below contains the refrigerant pipe connection diameters.
Liquid
Gas
Liquid
Gas
Liquid
Gas
Liquid
Gas
Liquid
Gas
Liquid
Gas
Liquid
Gas
Outdoor unit:
RP200B7W1 or
RP250B7W1
Model Between ∅ Gas pipe ∅ Liquid pipe
RP200B7W1 Outdoor unit – branch pipe 28.57 mm (flange) 12.70 mm (flare)
Branch pipe – branch pipe 19.05 mm (flare) 9.52 mm (flare)
Branch pipe – indoor unit 12.70 mm (flare) 6.35 mm (flare)
RP250B7W1 Outdoor unit – branch pipe 28.57 mm (flange) 15.87 mm (flare)
Branch pipe – branch pipe 19.05 mm (flare) 9.52 mm (flare)
Branch pipe – indoor unit 15.87 mm (flare) 9.52 mm (flare)
