Switch Box Layout ESiEN02–01A
1–108 Part 1 – System Outline
3
11
4
5
5.14 FHYBP35B7V1, FHYBP45B7V1, FHYBP60B7V1, FHYBP71B7V1, FHYBP100B7V1
and FHYBP125B7V1

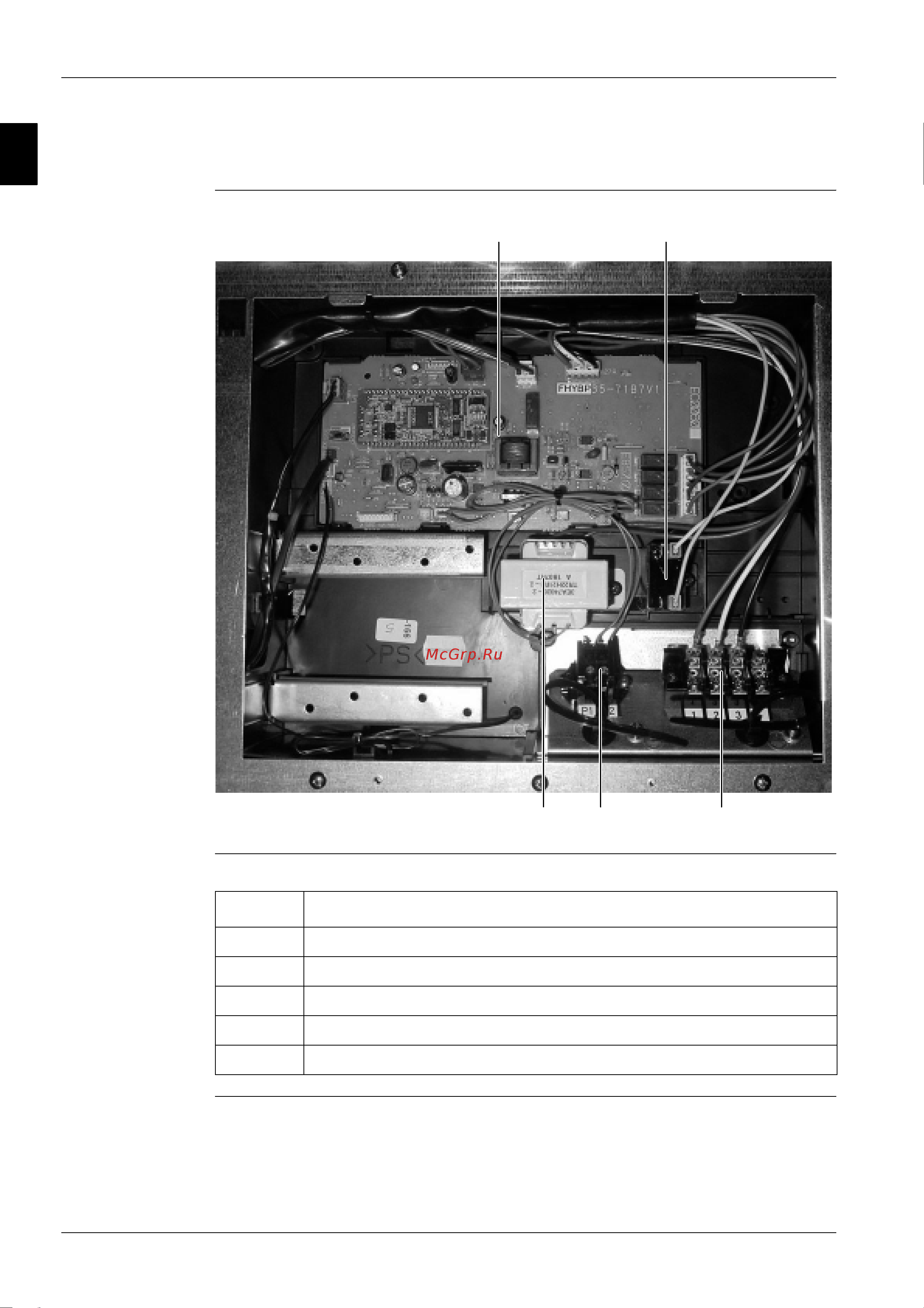

Switch box The illustration below shows the switch box layout.
Components The table below contains the components of the switch box.
X1M X2M
C1R
PCB1
T1R
Symbol Component
PCB1 Printed circuit board
C1R Fan motor capacitor
X2M Terminal strip (interconnection wiring)
X1M Terminal strip (for remote control P1/P2)
T1R Transformer
