ESiEN02–01A Functional Diagrams
Part 1 – System Outline 1–83
3
1
4
5
4.13 RY35EAZ7V1

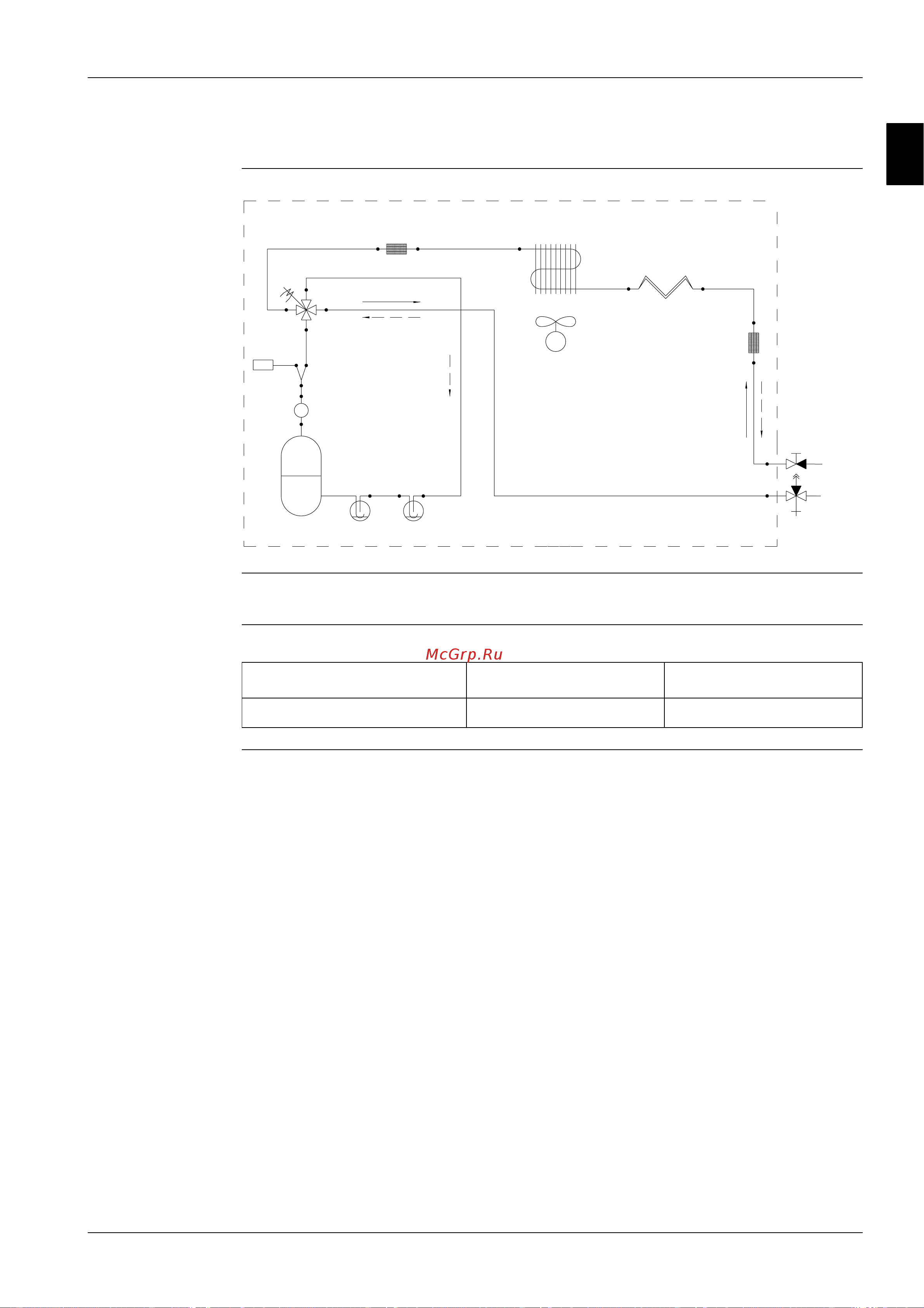

Functional diagram The illustration below shows the functional diagram of the refrigeration circuit.
Components For a description of the components, see ’Piping Components’ on page 1–93.
Pipe connection
diameters
The table below contains the refrigerant pipe connection diameters.
p >
M2F
M1C
5b
14
7
8
16
13
4
99
Heating
Cooling
8
2a
3
Gas
piping
Liquid
piping
Model ∅ Gas pipe (flare) ∅ Liquid pipe (flare)
RY35EAZ7V1 12.70 mm 6.35 mm
